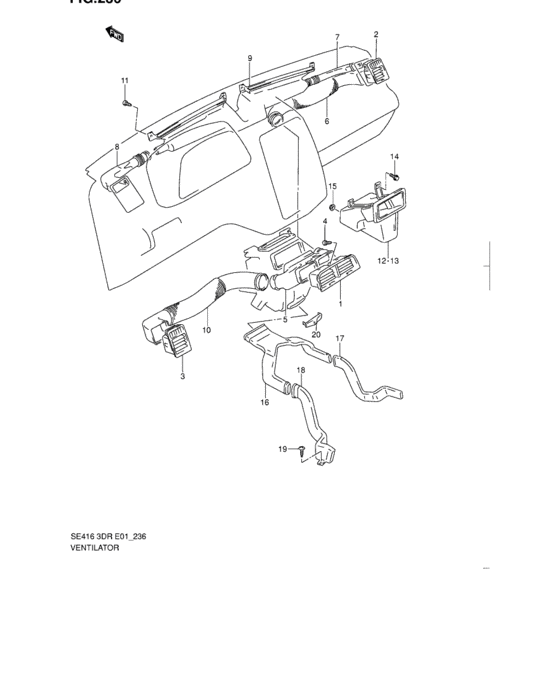

Ventilator (VENTILATOR) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73610-60A10-5PK LOUVER,CTR VENT |
73610-60A10-5PK |
US $109.60 |
||
|
2
|
2
73630-60A10-5PK LOUVER,SIDE VENT,R |
73630-60A10-5PK |
US $60.80 |
||
|
3
|
3
73640-60A10-5PK
LOUVER,SIDE VENT,L
|
73640-60A10-5PK |
— | ||
|
4
|
4
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
4
|
4
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
4
|
4
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
5
|
5
74611-60A00-000
DUCT,VENT
|
74611-60A00-000 |
— | ||
|
6
|
6
74612-60A01-000
HOSE,SIDE VENTILATOR
|
74612-60A01-000 |
— | ||
|
7
|
7
74613-60A10-000
HOSE,SIDE DEFROSTER,R
W/HEATER |
74613-60A10-000 |
— | ||
|
8
|
8
74614-60A10-000
HOSE,SIDE DEFROSTER,L
W/HEATER |
74614-60A10-000 |
— | ||
|
9
|
9
74615-60A00-000
DUCT,DEFROSTER
W/HEATER |
74615-60A00-000 |
— | ||
|
10
|
10
74617-60A00-000
HOSE,SIDE VENTILATOR,L
|
74617-60A00-000 |
— | ||
|
11
|
11
03541-05163-000
Screw
W/HEATER |
03541-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0516A-000 SCREWW/HEATER |
03541-0516A-000 |
from US $0.68 |
||
|
12
|
12
74640-60A40-000
Duct, heater
LHD,N/HEATER |
74640-60A40-000 |
— | ||
|
13
|
13
74640-60A20-000
Duct, heater
RHD,N/HEATER |
74640-60A20-000 |
— | ||
|
14
|
14
01550-06123-000
Bolt
N/HEATER |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BOLTBolt, clamp N/HEATER |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BOLTN/HEATER |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
08316-10083-000
Nut
N/HEATER |
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUTN/HEATER |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
74631-60A10-000 DUCT,RRTYPE 1:Germany,PRODUCT OF CANADA |
74631-60A10-000 |
US $38.64 |
||
|
17
|
17
74632-60A00-000 HOSE,RR,RTYPE 1:Germany,PRODUCT OF CANADA |
74632-60A00-000 |
US $26.31 |
||
|
18
|
18
74633-60A00-000 HOSE,RR,LTYPE 1:Germany,PRODUCT OF CANADA |
74633-60A00-000 |
US $26.31 |
||
|
19
|
19
03141-05123-000
Screw 5 x 12
TYPE 1:Germany,PRODUCT OF CANADA |
03141-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0512A-000 SCREWScrew, belt cooling duct TYPE 1:Germany,PRODUCT OF CANADA |
03141-0512A-000 |
from US $0.76 |
||
|
20
|
20
74911-64A00-000
CAP,HEATER
W/HEATER,N/REAR DUCT,TA01C-111957~,TA01V-115267~,JSAETA01C00167416~,JSAETA01V00146654~ |
74911-64A00-000 |
— | ||
