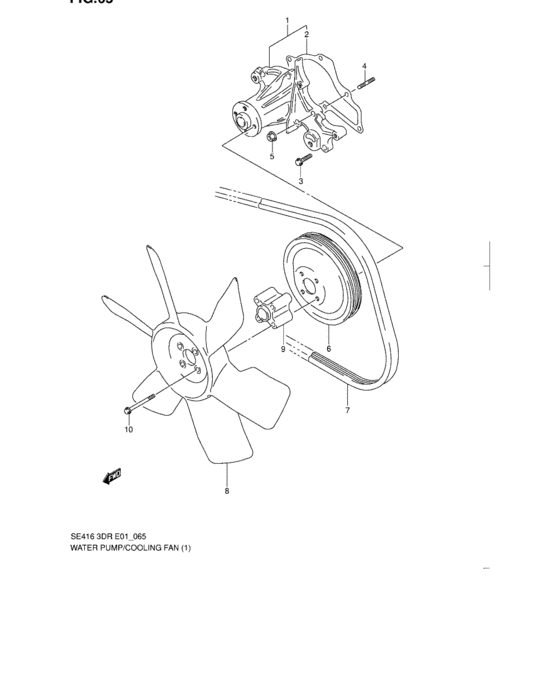

Water pump and cooling fan (WATER PUMP AND COOLING FAN) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-60815-000
PUMP, WATER
|
17400-60815-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-60816-000 Water Pump |
17400-60816-000 |
from US $109.96 |
||
|
2
|
2
17431-60A00-000 GASKET,WATER PUMP |
17431-60A00-000 |
from US $3.80 |
||
|
3
|
3
09103-06066-000 BOLT(6X23)Bolt (6x23) |
09103-06066-000 |
US $0.96 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
|
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUD |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17511-60A10-000
Pulley,water pump
|
17511-60A10-000 |
— | ||
|
6
|
6
17511-61A00-000
PULLEY,WATER PUMP
TA01C-150742~,TA01V-151712~ |
17511-61A00-000 |
— | ||
|
7
|
7
17521-86500-000 V-BELT (4PK815) |
17521-86500-000 |
from US $18.05 |
||
|
7
|
7
17521-61A00-000 BELT,WATER PUMP 4PK800TA01C-150742~,TA01V-151712~ |
17521-61A00-000 |
from US $31.77 |
||
| replacement | |||||
|
7
|
7
17521-61A00-CDN
Belt,wtr pump 4pk800
TA01C-150742~,TA01V-151712~ |
17521-61A00-CDN |
— | ||
|
8
|
8
17110-60A10-000
FAN,ENG COOLING
|
17110-60A10-000 |
— | ||
|
9
|
9
17131-80000-000 HUB,COOLING FAN |
17131-80000-000 |
US $16.72 |
||
|
10
|
10
01580-06503-000
Bolt
|
01580-06503-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0650A-000 Bolt |
01580-0650A-000 |
from US $4.64 |
||
