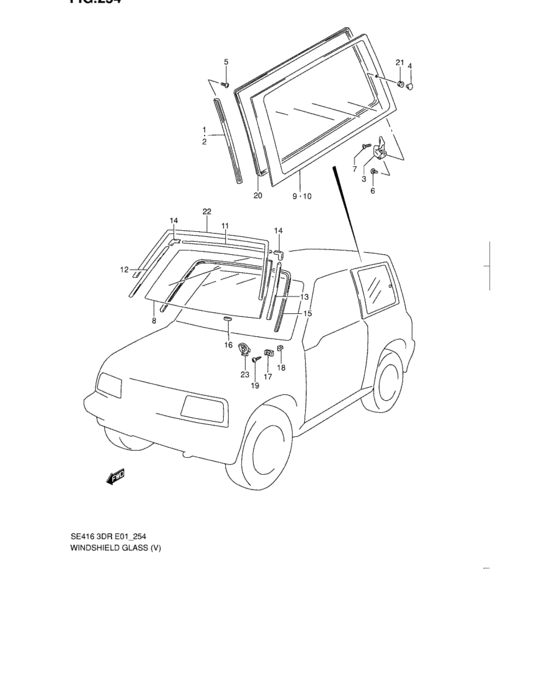

Windshield glass (V) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81411-62A00-000 PROTECTOR,QTR WDO GLASS HINGE |
81411-62A00-000 |
US $58.49 |
||
|
2
|
2
81416-62A00-000 PROTECTOR,QTR WDO GLASS HNG,L |
81416-62A00-000 |
US $58.49 |
||
|
3
|
3
81430-61A00-000 LOCK,QTR WINDOW GLASS |
81430-61A00-000 |
US $61.60 |
||
|
4
|
4
81451-80102-000 COVER,QUARTER WINDOW GLASS<-81451-80101 |
81451-80102-000 |
US $2.24 |
||
|
5
|
5
02112-36123-000
Screw
|
02112-36123-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-3612B-000 SCREW |
02112-3612B-000 |
US $13.60 |
||
|
5
|
5
02112-3612A-000 SCREW |
02112-3612A-000 |
from US $0.80 |
||
|
5
|
5
01570-06123-000
Bolt
TYPE 2:Germany,PRODUCT OF CANADA |
01570-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0612B-000 BOLTBolt, upper TYPE 2:Germany,PRODUCT OF CANADA |
01570-0612B-000 |
US $0.80 |
||
|
5
|
5
01570-0612A-000 BOLTBolt TYPE 2:Germany,PRODUCT OF CANADA |
01570-0612A-000 |
from US $0.80 |
||
|
6
|
6
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
7
|
7
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
8
|
8
84515-62A00-000
ガラス,ウィンドシールド(クリヤ)
|
84515-62A00-000 |
— | ||
| replacement | |||||
|
8
|
8
84515-62A30-000
GLASS,WINDSHIELD
|
84515-62A30-000 |
— | ||
|
8
|
8
84515-62A11-000
ガラス,ウィンドシールド(ブルー)
<-84515-62A10 |
84515-62A11-000 |
— | ||
| replacement | |||||
|
8
|
8
84515-62A30-000
GLASS,WINDSHIELD
<-84515-62A10 |
84515-62A30-000 |
— | ||
|
8
|
8
84515-62A21-000
GLASS,WINDSHIELD
<-84515-62A20 |
84515-62A21-000 |
— | ||
|
8
|
8
84515-63A00-000
Glass, windshield
|
84515-63A00-000 |
— | ||
|
8
|
8
84515-63A11-000
ガラス,ウィンドシールド(ブルー)
<-84515-63A10 |
84515-63A11-000 |
— | ||
| replacement | |||||
|
8
|
8
84515-63A30-000
Glass,windshield
<-84515-63A10 |
84515-63A30-000 |
— | ||
|
8
|
8
84515-63A21-000
Glass,windshield
<-84515-63A20 |
84515-63A21-000 |
— | ||
|
9
|
9
84561-62A00-000
ガラス,クォータウィンド,ライト(クリヤ)
|
84561-62A00-000 |
— | ||
| replacement | |||||
|
9
|
9
84561-62A30-000
GLASS,QTR WINDOW,R
|
84561-62A30-000 |
— | ||
|
9
|
9
84561-62A10-000
ガラス,クォータウィンド,ライト(ブルー)
|
84561-62A10-000 |
— | ||
| replacement | |||||
|
9
|
9
84561-62A30-000
GLASS,QTR WINDOW,R
|
84561-62A30-000 |
— | ||
|
9
|
9
84561-62A20-000
GLASS,QTR WINDOW,R
|
84561-62A20-000 |
— | ||
|
10
|
10
84566-62A00-000
ガラス,クォータウィンド,レフト(クリヤ)
|
84566-62A00-000 |
— | ||
| replacement | |||||
|
10
|
10
84566-62A30-000
GLASS,QTR WINDOW,L
|
84566-62A30-000 |
— | ||
|
10
|
10
84566-62A10-000
ガラス,クォータウィンド,レフト(ブルー)
|
84566-62A10-000 |
— | ||
| replacement | |||||
|
10
|
10
84566-62A30-000
GLASS,QTR WINDOW,L
|
84566-62A30-000 |
— | ||
|
10
|
10
84566-62A20-000
GLASS,QTR WINDOW,L
|
84566-62A20-000 |
— | ||
|
11
|
11
84611-61A00-5PK MOLDING,WSHLD UPRTYPE 1 |
84611-61A00-5PK |
US $45.60 |
||
|
11
|
11
84611-61AA0-5PK
Molding, windshield
Germany:PRODUCT OF CANADA |
84611-61AA0-5PK |
— | ||
|
12
|
12
84613-61A00-5PK MOLDING,WSHLD SIDE,RTYPE 1 |
84613-61A00-5PK |
US $43.33 |
||
|
12
|
12
84613-61AA0-5PK
Molding, wshld side rh
Germany:PRODUCT OF CANADA |
84613-61AA0-5PK |
— | ||
|
13
|
13
84614-61A00-5PK
MOLDING,WSHLD SIDE,L
TYPE 1 |
84614-61A00-5PK |
— | ||
|
13
|
13
84614-61AA0-5PK
Molding, wshld side lh
Germany:PRODUCT OF CANADA |
84614-61AA0-5PK |
— | ||
|
14
|
14
84615-61A00-5PK
JOINT,WSHLD MOLDING
TYPE 1 |
84615-61A00-5PK |
— | ||
|
15
|
15
84616-61A00-5PK TRIM,WINDSHIELD OPENING |
84616-61A00-5PK |
US $139.84 |
||
|
16
|
16
84617-61A10-000 SPACER,WINDSHIELD GLASS<-84617-61A00 |
84617-61A10-000 |
US $10.08 |
||
|
17
|
17
84618-62A00-000 STOPPER,WINDSHIELD GLASS<-84618-61A00 |
84618-62A00-000 |
US $3.04 |
||
|
18
|
18
09148-05018-000 NUT |
09148-05018-000 |
from US $0.63 |
||
|
19
|
19
03211-15163-000
Screw
|
03211-15163-000 |
— | ||
| replacement | |||||
|
19
|
19
03211-1516B-000 SCREW |
03211-1516B-000 |
US $0.80 |
||
|
20
|
20
84671-61A00-5PK WEATHERSTRIP,QTR WDOTYPE 1:JX,<-84671-61A00-5ER |
84671-61A00-5PK |
US $60.72 |
||
|
20
|
20
84671-62A00-5PK WEATHERSTRIP,QTR WDOTYPE 1:JLX,<-84671-62A00-5ER |
84671-62A00-5PK |
US $110.21 |
||
|
21
|
21
69275-78200-000 PAD,QUARTER WINDOW |
69275-78200-000 |
US $1.44 |
||
|
22
|
22
84611-56B00-5PK MOLDING,WSHLDTYPE 2,TYPE 3 |
84611-56B00-5PK |
from US $97.07 |
||
|
23
|
23
84618-62A00-000 STOPPER,WINDSHIELD GLASS |
84618-62A00-000 |
US $3.04 |
||
