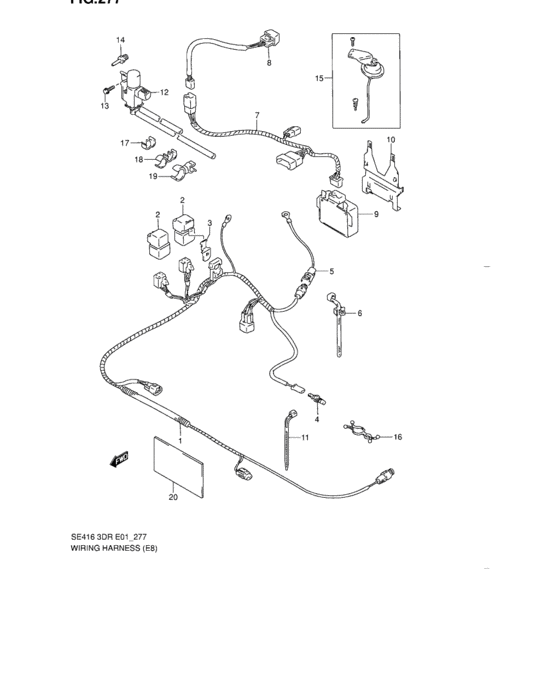

Wiring harness Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95582-62A20-000
Harness, engine room
|
95582-62A20-000 |
— | ||
|
2
|
2
95576-73A00-000 RELAY ASSY,CLG FAN |
95576-73A00-000 |
US $29.62 |
||
|
3
|
3
95981-60A50-000
BRACKET,FUSE
|
95981-60A50-000 |
— | ||
|
4
|
4
95573-60A40-000
SWITCH,WATER TEMP
|
95573-60A40-000 |
— | ||
| replacement | |||||
|
4
|
4
95573-60A50-000
SWITCH,WATER TEMP
|
95573-60A50-000 |
— | ||
|
5
|
5
95585-86000-000
FUSIBLE LINK,A/C
|
95585-86000-000 |
— | ||
|
6
|
6
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
7
|
7
95581-62A20-000
Harness, inner
|
95581-62A20-000 |
— | ||
|
8
|
8
95571-60A50-000
SWITCH,A/C
|
95571-60A50-000 |
— | ||
|
9
|
9
95510-78E40-000
CONTROLLER,A/C
<-95575-60A50 |
95510-78E40-000 |
— | ||
|
10
|
10
95591-62A20-000
Bracket, controller
|
95591-62A20-000 |
— | ||
|
11
|
11
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
12
|
12
95551-60A51-000
Vsv,idle up
|
95551-60A51-000 |
— | ||
|
13
|
13
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
95562-78540-000 UNION,VACUUM HOSE |
95562-78540-000 |
US $9.83 |
||
|
15
|
15
95550-60A20-000
ID UP ASSY,CAR AIR CON
|
95550-60A20-000 |
— | ||
|
16
|
16
09408-00123-000
クランプ
|
09408-00123-000 |
— | ||
|
17
|
17
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
18
|
18
09408-00129-000
Clip, vacuum hose
|
09408-00129-000 |
— | ||
|
19
|
19
09408-00069-000 CLIPClip TYPE 2 |
09408-00069-000 |
US $18 |
||
|
20
|
20
36930-82010-000 COVER,HARNESSCover, roof wire TYPE 2 |
36930-82010-000 |
from US $1.73 |
||
