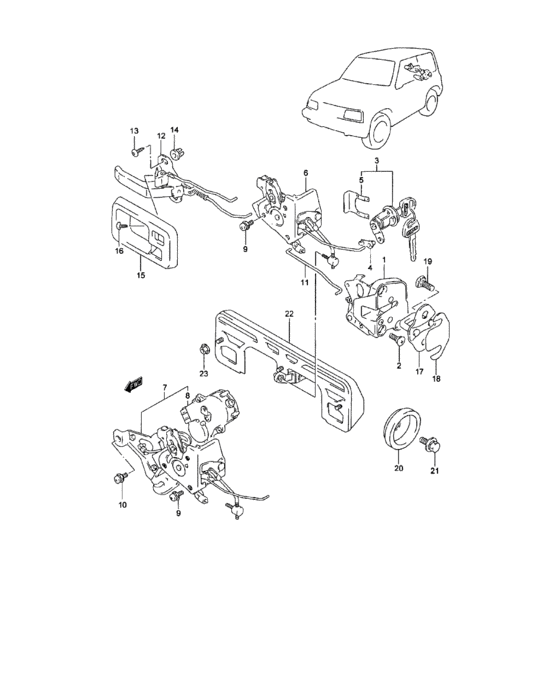

Back door lock (V) Diagram Suzuki VITARA
- Year
- -
- Sales region
- General
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-61A00-000 LATCH ASSY,BACK DR |
82530-61A00-000 |
US $161.60 |
||
|
2
|
2
02122-56163-000
SCREW
6X16 |
02122-56163-000 |
— | ||
| replacement | |||||
|
2
|
2
02122-5616B-000 SCREW6X16 |
02122-5616B-000 |
US $0.80 |
||
|
3
|
3
82500-60830-000
シリンダセット,バックドアラッチロック
|
82500-60830-000 |
— | ||
| replacement | |||||
|
3
|
3
82500-60831-000 CYLINDER,BACK DR LOCK |
82500-60831-000 |
US $71.44 |
||
|
4
|
4
82287-60A00-000 HOLDER |
82287-60A00-000 |
US $1.60 |
||
|
5
|
5
82577-70B01-000 CLIP,CYLINDER |
82577-70B01-000 |
US $3.72 |
||
|
6
|
6
83170-62A00-000 LINK,BACK DR LATCHJX |
83170-62A00-000 |
US $60.72 |
||
|
7
|
7
83170-58B00-000
LINK ASSY,BACK DR LATCH
JLX |
83170-58B00-000 |
— | ||
|
8
|
8
82550-57B00-000 ACTUATOR,BACK DR LATCHJLX |
82550-57B00-000 |
US $268.64 |
||
|
9
|
9
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $1.12 |
||
|
10
|
10
02112-76123-000
Screw
JLX |
02112-76123-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-7612B-000 SCREWJLX |
02112-7612B-000 |
from US $1.12 |
||
|
11
|
11
83175-85C00-000
Rod, back door latch
|
83175-85C00-000 |
— | ||
|
12
|
12
83190-62A00-T01
HANDLE,BACK DOOR INSIDE
|
83190-62A00-T01 |
— | ||
|
13
|
13
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
14
|
14
59981-85C00-000
Nut
|
59981-85C00-000 |
— | ||
|
15
|
15
82981-82000-T01 BEZEL,BACK DR INSIDE HANDLE |
82981-82000-T01 |
US $5.04 |
||
|
16
|
16
03141-04083-000
スクリュ
|
03141-04083-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0408A-000 SCREW |
03141-0408A-000 |
US $0.80 |
||
|
17
|
17
82660-61A01-000 STRIKER,BACK DOOR LATCH |
82660-61A01-000 |
US $43.20 |
||
|
18
|
18
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
19
|
19
09137-08011-000 SCREW(8X18)8X18 |
09137-08011-000 |
US $1.44 |
||
|
20
|
20
82761-85C00-000
Male, stop
|
82761-85C00-000 |
— | ||
|
21
|
21
09118-08128-000 BOLT(8X16)Bolt, front fender, front 8X16 |
09118-08128-000 |
US $1.28 |
||
|
22
|
22
82850-85C00-5PK
Handle, door out
|
82850-85C00-5PK |
— | ||
|
23
|
23
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
