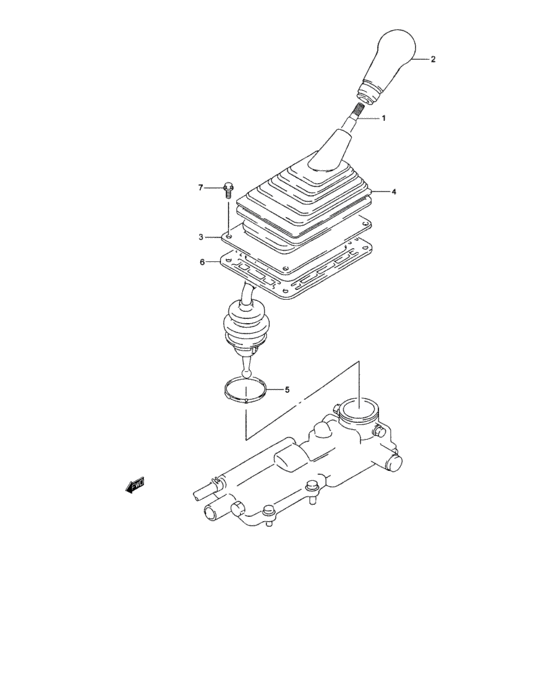

Gear shifting control (GEAR SHIFTING CONTROL) Diagram Suzuki VITARA
- Year
- -
- Sales region
- General
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-85C00-000
LEVER,GEAR SHF CONT
|
28101-85C00-000 |
— | ||
|
2
|
2
28113-85C00-000
Knob, control lever
|
28113-85C00-000 |
— | ||
|
3
|
3
28136-85F40-000 BOOT,GR SHF CONT LEVER NO.2 |
28136-85F40-000 |
US $76 |
||
|
4
|
4
28138-60A01-000 BOOT,GR SHF CONT LEVER NO.3 |
28138-60A01-000 |
US $104.12 |
||
|
5
|
5
21935-85C00-000
Clamp
|
21935-85C00-000 |
— | ||
|
6
|
6
28137-60A01-000 COVER,GEAR SHF CONT BOOT |
28137-60A01-000 |
US $26.40 |
||
|
7
|
7
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
