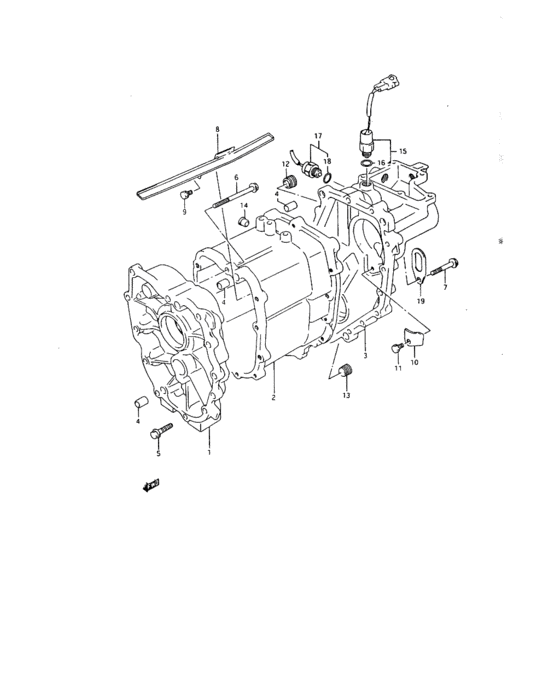

Transfer case (TRANSFER CASE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-60A01-000
CASE TRANSFER FRONT
|
29511-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
29511-85F40-000 CASE,T/F,FR |
29511-85F40-000 |
from US $87.62 |
||
|
2
|
2
29521-60A01-000
ケース,トランスファ,センタ
|
29521-60A01-000 |
— | ||
| replacement | |||||
|
2
|
2
29521-60AV0-000 CASE,T/F,CENTER |
29521-60AV0-000 |
US $255.76 |
||
|
3
|
3
29531-60A01-000
ケース,トランスファ,リヤ
|
29531-60A01-000 |
— | ||
| replacement | |||||
|
3
|
3
29531-85F00-000 CASE,T/F,RR |
29531-85F00-000 |
from US $148.86 |
||
|
4
|
4
09206-13012-000 PIN(9X13X40) |
09206-13012-000 |
from US $9.56 |
||
|
5
|
5
01517-08303-000
BOLT
|
01517-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
6
|
6
01517-08803-000
Screw
|
01517-08803-000 |
— | ||
|
7
|
7
01517-08453-000
Vis
|
01517-08453-000 |
— | ||
|
8
|
8
29528-60A00-000 GUTTER,T/F CTR CASE |
29528-60A00-000 |
US $3.83 |
||
|
9
|
9
09117-06034-000
Screw
|
09117-06034-000 |
— | ||
|
10
|
10
29536-60A00-000
プレート,トランスファリヤケース
|
29536-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
29536-60A01-000 PLATE,T/F REAR CASE |
29536-60A01-000 |
US $2.10 |
||
|
11
|
11
09117-06054-000
ボルト,6X12
|
09117-06054-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $0.88 |
||
|
12
|
12
09246-16009-000
PLUG OIL
TYPE 3 |
09246-16009-000 |
— | ||
| replacements | |||||
|
12
|
12
09246-16010-000 PLUGTYPE 3 |
09246-16010-000 |
US $4.37 |
||
|
12
|
12
09246-16021-000 Plug,t/m Oil DrainTYPE 3 |
09246-16021-000 |
from US $4.37 |
||
|
12
|
12
09246-A1600-900
Vacuum plug
|
09246-A1600-900 |
— | ||
|
13
|
13
09246-A1601-000
Brain plug
|
09246-A1601-000 |
— | ||
|
14
|
14
09250-08001-000 PLUG(OD:14)Cap, remote control shaft |
09250-08001-000 |
from US $0.52 |
||
|
15
|
15
57680-60A01-000
High spee.4wd interr
|
57680-60A01-000 |
— | ||
|
16
|
16
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
17
|
17
37680-60A10-000
スイッチアッシ,4WD,ロー
|
37680-60A10-000 |
— | ||
| replacement | |||||
|
17
|
17
37680-60A11-000 SWITCH ASSY,4WD |
37680-60A11-000 |
from US $37.64 |
||
|
18
|
18
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
19
|
19
11851-73001-000
フック,エンジン
|
11851-73001-000 |
— | ||
| replacement | |||||
|
19
|
19
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
