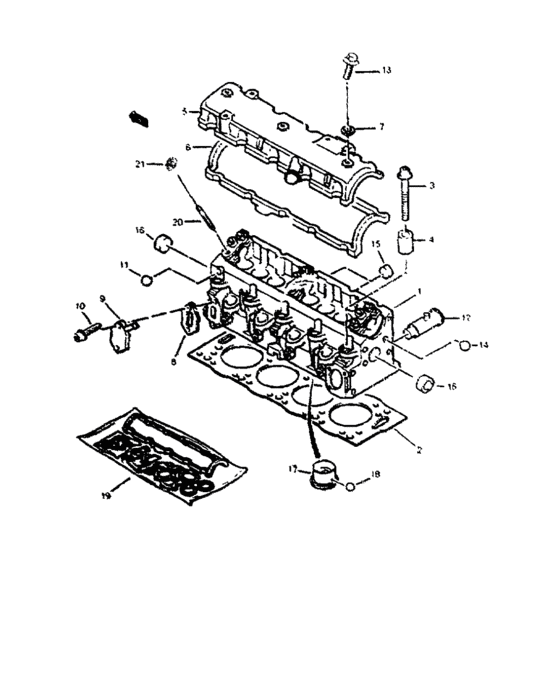

Cylinder head (CYLINDER HEAD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Latin america
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-86CT0-000
Cyl, head
|
11111-86CT0-000 |
— | ||
|
2
|
2
11141-86CT0-000
Cyl, head gasket
T: 1.36 - 1 CUTTING MARKS |
11141-86CT0-000 |
— | ||
|
2
|
2
11141-86CB0-000
Cyl.head gasket
T: 1.40 - 2 CUTTING MARKS |
11141-86CB0-000 |
— | ||
|
2
|
2
11141-86CB1-000
Cyl.head gasket
T: 1.44 - 3 CUTTING MARKS |
11141-86CB1-000 |
— | ||
|
2
|
2
11141-86CB2-000
Cyl.head gasket
T: 1.48 - 4 CUTTING MARKS |
11141-86CB2-000 |
— | ||
|
2
|
2
11141-86CB3-000
Cyl.head gasket
T: 1.52 - 5 CUTTING MARKS |
11141-86CB3-000 |
— | ||
|
2
|
2
11141-86CT1-000
Cyl, head gasket
T: 1.59 - 5 CUTTING MARKS |
11141-86CT1-000 |
— | ||
|
3
|
3
11227-86CT0-000
Cyl, head, screw
12X1.50-145 |
11227-86CT0-000 |
— | ||
|
4
|
4
09160-86CT0-000
Spacer
13X24-28 |
09160-86CT0-000 |
— | ||
|
5
|
5
11170-86CA0-000
Cover
|
11170-86CA0-000 |
— | ||
|
6
|
6
11189-86CA0-000
Gasket,cylinder head cover
|
11189-86CA0-000 |
— | ||
|
7
|
7
09160-86CB0-000
Washer
7.25X19-0.4 |
09160-86CB0-000 |
— | ||
|
8
|
8
11122-86CA1-000
Gasket
|
11122-86CA1-000 |
— | ||
|
9
|
9
11122-86CA1-000
Gasket
D:8 |
11122-86CA1-000 |
— | ||
|
10
|
10
M9103-86CA0-000
Screw chc
7X100 - 31 |
M9103-86CA0-000 |
— | ||
|
11
|
11
M9246-86CA3-000
Ball plug
D: 7.936 |
M9246-86CA3-000 |
— | ||
|
12
|
12
11226-86CA1-000
Socket
23X85.5 |
11226-86CA1-000 |
— | ||
|
13
|
13
01517-86CA0-000
Screw h
6X100-25 |
01517-86CA0-000 |
— | ||
|
14
|
14
M9246-86CA2-000
Ball
D: 7.301 |
M9246-86CA2-000 |
— | ||
|
15
|
15
M9241-86CA0-000
Plug
D: 27 |
M9241-86CA0-000 |
— | ||
|
15
|
15
M9241-86CA1-000
Plug
D: 27.5 |
M9241-86CA1-000 |
— | ||
|
15
|
15
M9241-86CA2-000
Plug
D: 28.5 |
M9241-86CA2-000 |
— | ||
|
16
|
16
M9241-86CT0-000
Core plug
D: 32 |
M9241-86CT0-000 |
— | ||
|
17
|
17
11161-86CT0-000
Swirl chamber
0.4 |
11161-86CT0-000 |
— | ||
|
18
|
18
06112-86CA0-000
Ball
D: 3 |
06112-86CA0-000 |
— | ||
|
19
|
19
11401-86CA1-000
Set of gaskets
|
11401-86CA1-000 |
— | ||
|
20
|
20
M1421-86CA0-000
Stud
8X125-35 |
M1421-86CA0-000 |
— | ||
|
21
|
21
11121-86CA0-000
Collar nut
8X125-8-13 |
11121-86CA0-000 |
— |
