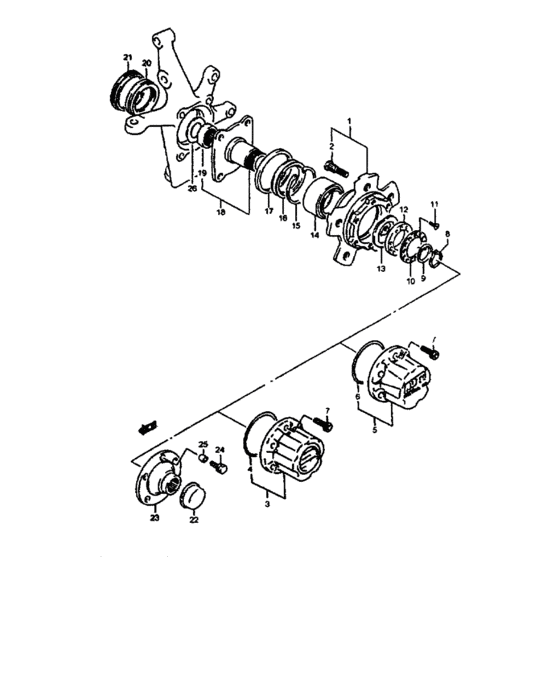

Front wheel hub (FRONT WHEEL HUB) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Latin america
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43421-60A00-000
HUB FR WHEEL
|
43421-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
43420-50820-000 HUB SET,FR WHL |
43420-50820-000 |
from US $75.51 |
||
|
2
|
2
09119-12008-000
ボルト,12X38
|
09119-12008-000 |
— | ||
| replacement | |||||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.13 |
||
|
3
|
3
43810-60A40-000
Hub assy, free wheel
|
43810-60A40-000 |
— | ||
| replacement | |||||
|
3
|
3
43800-60812-000 WHEEL LOCKING HUB SET (MANUAL) |
43800-60812-000 |
from US $267.46 |
||
|
4
|
4
43838-60A30-000
Ring
|
43838-60A30-000 |
— | ||
|
5
|
5
43810-60A30-000
Hub assy, auto free wheel
|
43810-60A30-000 |
— | ||
|
6
|
6
43838-60A30-000
Ring
|
43838-60A30-000 |
— | ||
|
7
|
7
43811-60A30-000
Screw
|
43811-60A30-000 |
— | ||
|
8
|
8
09381-68001-000 CIRCLIP |
09381-68001-000 |
from US $2.88 |
||
|
9
|
9
44182-60A01-000 WASHER,FR SPINDLE THRUST |
44182-60A01-000 |
from US $2.56 |
||
|
10
|
10
43466-60A00-000 WASHER,FR WHEEL BRG LOCK |
43466-60A00-000 |
from US $15.52 |
||
|
11
|
11
02122-04083-000
SCREW
|
02122-04083-000 |
— | ||
| replacement | |||||
|
11
|
11
02122-0408A-000 SCREW |
02122-0408A-000 |
from US $0.76 |
||
|
12
|
12
43461-60A01-000 NUT,FR WHL BRG LOCK |
43461-60A01-000 |
from US $40.07 |
||
|
12
|
12
43461-60A30-000
Nut, bearing lock
|
43461-60A30-000 |
— | ||
|
13
|
13
43465-60A00-000 WASHER,FR WHEEL BRG |
43465-60A00-000 |
from US $1.92 |
||
|
13
|
13
43465-60A30-000
Washer, wheel bearing
|
43465-60A30-000 |
— | ||
|
14
|
14
43462-85C00-000
Bearing, wheel
|
43462-85C00-000 |
— | ||
|
15
|
15
43486-85C00-000
Circlip, wheel bearing
|
43486-85C00-000 |
— | ||
|
16
|
16
09283-54001-000 SEAL,OIL(54X69X7) |
09283-54001-000 |
from US $9.74 |
||
|
17
|
17
09286-75001-000 SEAL,OIL(75X83X4) |
09286-75001-000 |
from US $17.48 |
||
|
18
|
18
43440-85C10-000
Spindle assy, front wheel
|
43440-85C10-000 |
— | ||
|
19
|
19
09263-28030-000 BEARING(28X35X16) |
09263-28030-000 |
from US $20.34 |
||
|
20
|
20
09289-48004-000 SEAL,OIL(48X70X17) |
09289-48004-000 |
from US $15.66 |
||
|
21
|
21
09286-64001-000 SEAL,OIL(64X76X7) |
09286-64001-000 |
from US $14.13 |
||
|
22
|
22
43241-80001-000 CAP,FR AXLE |
43241-80001-000 |
from US $6.82 |
||
|
23
|
23
43471-60A00-000 FLANGE AXLE SHAFT DRIVE |
43471-60A00-000 |
US $88.88 |
||
| replacements | |||||
|
23
|
23
43471-80001-000 FLANGE,FR AXLE SHAFT DRIVE |
43471-80001-000 |
from US $88.88 |
||
|
23
|
23
43811-65D00-000 BOLT,DRIVE FLANGE |
43811-65D00-000 |
from US $4.70 |
||
|
24
|
24
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
24
|
24
01570-0825B-000 Bolt |
01570-0825B-000 |
from US $1.28 |
||
|
24
|
24
01570-0825A-000 Bolt |
01570-0825A-000 |
from US $1.06 |
||
|
25
|
25
43841-80001-000 WASHER,LOCKING HUB CONE |
43841-80001-000 |
from US $2.40 |
||
|
26
|
26
44183-60A00-000 WASHER,FR DRIVESHAFT THRUST |
44183-60A00-000 |
from US $8.17 |
||
