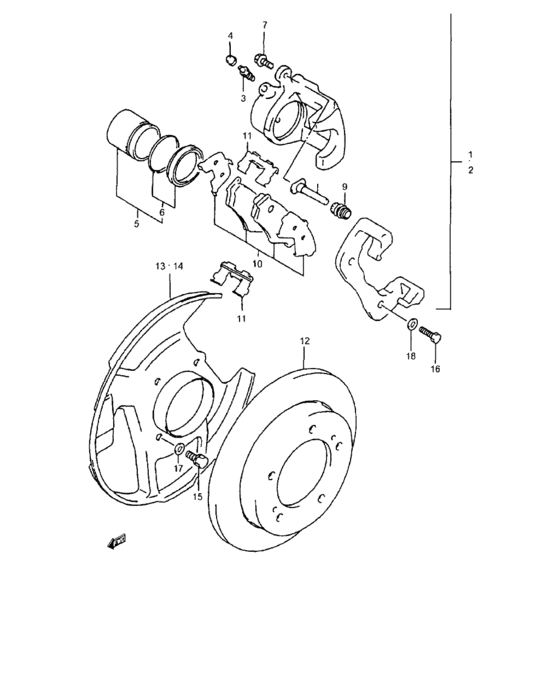

Front brake (FRONT BRAKE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- General
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-85C00-000
Caliper assy, front brake rh
3DR |
55101-85C00-000 |
— | ||
|
1
|
1
55101-56B30-000 CALIPER ASSY FRONT BRAKE5DR |
55101-56B30-000 |
US $327.29 |
||
| replacements | |||||
|
1
|
1
55101-56B31-999 CALIPER,FR BRAKE,R5DR |
55101-56B31-999 |
from US $186.98 |
||
|
1
|
1
55200-56B42-000 PAD SET,DISC BRAKE5DR |
55200-56B42-000 |
from US $140.13 |
||
|
2
|
2
55102-85C00-000
Caliper assy, front brake lh
3DR |
55102-85C00-000 |
— | ||
|
2
|
2
55102-56B30-000 CALIPER ASSY FRONT BRAKE5DR |
55102-56B30-000 |
US $329.67 |
||
| replacements | |||||
|
2
|
2
55102-56B31-999 CALIPER,FR BRAKE,L5DR |
55102-56B31-999 |
from US $329.67 |
||
|
2
|
2
55200-56B42-000 PAD SET,DISC BRAKE5DR |
55200-56B42-000 |
from US $140.13 |
||
|
3
|
3
00000-A0023-600
Bleed screw
3DR |
00000-A0023-600 |
— | ||
|
3
|
3
55473-82030-000
Plug, bleeder
5DR |
55473-82030-000 |
— | ||
| replacement | |||||
|
3
|
3
55151-78451-000 PLUG,BLEEDER5DR |
55151-78451-000 |
from US $4.32 |
||
|
4
|
4
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
5
|
5
00000-A0017-800
Piston & seal set
3DR |
00000-A0017-800 |
— | ||
|
5
|
5
55840-64G00-000 PISTON/SEAL SET5DR |
55840-64G00-000 |
from US $53.62 |
||
|
6
|
6
55830-64G00-000 SEAL SET,PISTON5DR |
55830-64G00-000 |
from US $8.96 |
||
|
7
|
7
55206-60A00-000
ボルト,ピン
|
55206-60A00-000 |
— | ||
| replacement | |||||
|
7
|
7
55206-60A01-000 BOLT,PIN |
55206-60A01-000 |
US $9.60 |
||
|
8
|
8
55191-56B00-000 PIN,CYLINDER SLIDE5DR |
55191-56B00-000 |
from US $16.80 |
||
|
9
|
9
55201-56B00-000
ブーツ,ピン
5DR |
55201-56B00-000 |
— | ||
| replacement | |||||
|
9
|
9
55201-56B01-000 BOOT,PIN5DR |
55201-56B01-000 |
from US $2.88 |
||
|
10
|
10
00000-A0090-600
Pads kit
3DR |
00000-A0090-600 |
— | ||
|
10
|
10
55200-56870-000 BRAKE PAD SET5DR |
55200-56870-000 |
US $142.45 |
||
| replacement | |||||
|
10
|
10
55200-56B42-000 PAD SET,DISC BRAKE5DR |
55200-56B42-000 |
from US $140.13 |
||
|
11
|
11
55234-60A00-000 SPRING,PAD3DR |
55234-60A00-000 |
from US $10.52 |
||
|
11
|
11
55234-56B00-000 SPRING,PAD5DR |
55234-56B00-000 |
from US $13.38 |
||
|
12
|
12
55211-60A00-000
DISC FRT BRAKE
3DR |
55211-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
55211-60A01-000 DISC,FR BRAKE3DR |
55211-60A01-000 |
from US $132.80 |
||
|
12
|
12
55211-85C00-000
Disc, front brake
5DR |
55211-85C00-000 |
— | ||
|
13
|
13
55221-85C00-000
Cover, brake disk dust rh
|
55221-85C00-000 |
— | ||
|
14
|
14
55222-85C00-000
Cover, brake disk dust lh
|
55222-85C00-000 |
— | ||
|
15
|
15
55391-85C00-000
Bolt, spindle
|
55391-85C00-000 |
— | ||
|
16
|
16
09100-85C00-000
Screw
3DR |
09100-85C00-000 |
— | ||
|
16
|
16
09117-12012-000 BOLT(12X32)5DR |
09117-12012-000 |
from US $2.08 |
||
|
17
|
17
08321-A3110-300
Washer plain
3DR |
08321-A3110-300 |
— | ||
|
18
|
18
08321-A3112-300
Washer
3DR |
08321-A3112-300 |
— | ||
