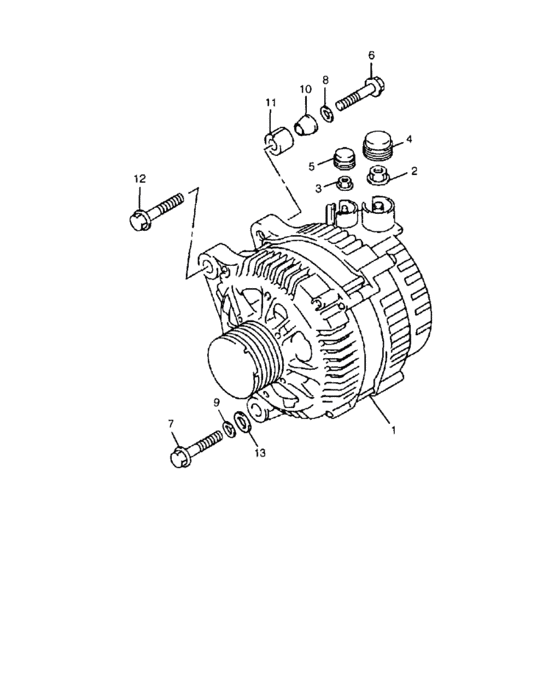

Generator (GENERATOR) Diagram Suzuki VITARA
- Year
- -
- Sales region
- General
- grade
- JX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-86CC0-000
Generator assy
VALEO |
31400-86CC0-000 |
— | ||
|
1
|
1
31400-86CD0-000
Generator assy
MELCO |
31400-86CD0-000 |
— | ||
|
2
|
2
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
| replacement | |||||
|
2
|
2
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.96 |
||
|
3
|
3
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
3
|
3
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
4
|
4
35333-86CA0-000
Protector, terminal
M.8 |
35333-86CA0-000 |
— | ||
|
5
|
5
35332-86CA0-000
Protector, terminal
M.5 |
35332-86CA0-000 |
— | ||
|
6
|
6
00098-86CA0-000
Screw
|
00098-86CA0-000 |
— | ||
|
7
|
7
00099-86CA0-000
Bolt
|
00099-86CA0-000 |
— | ||
|
8
|
8
08321-B3108-300
Washer
|
08321-B3108-300 |
— | ||
|
9
|
9
08321-A3105-300
Washer
|
08321-A3105-300 |
— | ||
|
10
|
10
35462-86CA0-000
Bush, generator
|
35462-86CA0-000 |
— | ||
|
11
|
11
35337-86CA0-000
Pin
|
35337-86CA0-000 |
— | ||
|
12
|
12
00100-86CA0-000
Bolt
|
00100-86CA0-000 |
— | ||
|
13
|
13
09160-10119-000 WASHER(10.5X22X1.6)Washer, wheel set |
09160-10119-000 |
from US $0.96 |
||
| replacement | |||||
|
13
|
13
09160-10143-000 WASHER(10.5X22X1.6) |
09160-10143-000 |
from US $0.91 |
||
