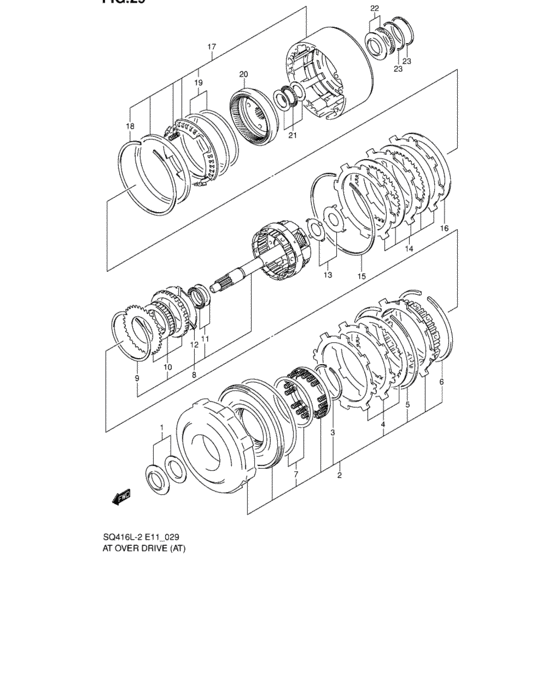

At over drive (AT OVER DRIVE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24963-57BT0-000 BEARING SET,THRUST NO.5 |
24963-57BT0-000 |
from US $54.34 |
||
|
2
|
2
24100-85FA0-000
CLUTCH ASSY,OVER DRIVE
|
24100-85FA0-000 |
— | ||
|
3
|
3
28949-57B00-000 RING,SNAP B1 BRAKE |
28949-57B00-000 |
from US $7.20 |
||
|
4
|
4
24111-85FT0-000 DISC SET,O/D CLUTCH |
24111-85FT0-000 |
US $100.49 |
||
|
5
|
5
24191-57B00-000 RING,RETAINING O/D CL |
24191-57B00-000 |
from US $8.57 |
||
|
6
|
6
24192-57B00-000 RING,RETAINING BRAKE HUB |
24192-57B00-000 |
from US $12.42 |
||
|
7
|
7
26622-65DT0-000 O-RING SET,CLUTCH |
26622-65DT0-000 |
from US $19.89 |
||
|
8
|
8
24140-57B00-000
ギヤアッシ,オーバードライブ
|
24140-57B00-000 |
— | ||
| replacement | |||||
|
8
|
8
24140-57B01-000 GEAR ASSY,OVER DRIVE |
24140-57B01-000 |
US $1,444.80 |
||
|
9
|
9
24193-57B00-000 RING,RETAINING O/D PLNTY |
24193-57B00-000 |
from US $5.27 |
||
|
10
|
10
26850-57BT0-000 CLUTCH ASSY,O/D ONE WAY |
26850-57BT0-000 |
US $349.60 |
||
|
11
|
11
29698-57B00-000 BEARING,THRUST |
29698-57B00-000 |
US $46.37 |
||
|
12
|
12
29949-57B00-000
ワッシャ,スラストプラネタリ
|
29949-57B00-000 |
— | ||
|
13
|
13
24163-57BT0-000
ワッシャセット,スラストプラネタリ
|
24163-57BT0-000 |
— | ||
| replacement | |||||
|
13
|
13
24163-57BT1-000 WASHER SET,THRUST PLNTY |
24163-57BT1-000 |
from US $42.80 |
||
|
14
|
14
24114-65DT0-000 DISC SET,O/D BRAKE |
24114-65DT0-000 |
from US $257.49 |
||
|
15
|
15
24194-57B00-000 RING,RETAINING O/D BRAKE FR |
24194-57B00-000 |
from US $13.70 |
||
|
16
|
16
24118-65D10-000 PLATE,CUSHION BRAKE |
24118-65D10-000 |
from US $26.93 |
||
|
17
|
17
26310-65DT0-000
Piston assy,o/d brake
|
26310-65DT0-000 |
— | ||
| replacement | |||||
|
17
|
17
26310-65DT1-000 PISTON ASSY,O/D BRAKE |
26310-65DT1-000 |
US $880 |
||
|
18
|
18
24194-57B00-000 RING,RETAINING O/D BRAKE FR |
24194-57B00-000 |
from US $13.70 |
||
|
19
|
19
29745-57BT0-000 O-RING SET,O/D BRAKE PISTON |
29745-57BT0-000 |
from US $26.89 |
||
|
20
|
20
24142-57B00-000 GEAR,O/D PLNTY RING |
24142-57B00-000 |
from US $341.62 |
||
|
21
|
21
24961-57BT0-000 BEARING SET,THRUST NO.3 |
24961-57BT0-000 |
from US $33.35 |
||
|
22
|
22
24964-57BT0-000 BEARING SET,THRUST NO.6 |
24964-57BT0-000 |
US $33.12 |
||
|
23
|
23
29797-65D10-000 RING,THRUST BRG O/D CASE |
29797-65D10-000 |
from US $16.83 |
||
