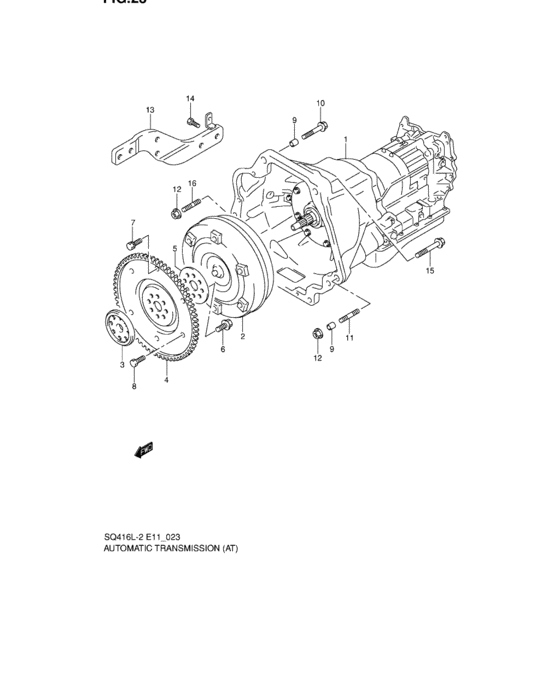

Automatic transmission (AUTOMATIC TRANSMISSION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-66DV2-000
トランスミッションアッシ,オートマチック
|
21000-66DV2-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-66DV4-000
T/m assy,automatic
|
21000-66DV4-000 |
— | ||
|
2
|
2
22700-66D30-000
CONVERTER,TORQUE
|
22700-66D30-000 |
— | ||
|
3
|
3
22611-61A02-000 FLANGE,T/C DRIVE PLATE FR |
22611-61A02-000 |
US $26.75 |
||
|
4
|
4
22620-57B00-000 PLATE,TC DRIVE |
22620-57B00-000 |
US $111.20 |
||
|
5
|
5
22631-61A00-000 FLANGE,T/C DRIVE PLATE RR |
22631-61A00-000 |
from US $15.80 |
||
|
6
|
6
09103-10200-000
ボルト,10X18.5
|
09103-10200-000 |
— | ||
| replacements | |||||
|
6
|
6
09100-10275-000 BOLT(10X18.5) |
09100-10275-000 |
from US $1.44 |
||
|
6
|
6
09103-10305-000 BOLT(10X18.5) |
09103-10305-000 |
from US $1.42 |
||
|
7
|
7
09103-10286-000 BOLT(10X12) |
09103-10286-000 |
from US $1.92 |
||
|
8
|
8
22791-65D10-000
ボルト,トルクコンバータ,10X12
|
22791-65D10-000 |
— | ||
| replacement | |||||
|
8
|
8
09103-10340-000 BOLT(10X12) |
09103-10340-000 |
US $15.10 |
||
|
9
|
9
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
from US $1.92 |
||
|
10
|
10
01550-12753-000
BOLT
|
01550-12753-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1275A-000 Bolt |
01550-1275A-000 |
from US $2.08 |
||
|
11
|
11
09108-12007-000
Bolt,stud
|
09108-12007-000 |
— | ||
| replacement | |||||
|
11
|
11
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.43 |
||
|
12
|
12
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
13
|
13
24790-56B10-000 STIFFENER,CASE,R |
24790-56B10-000 |
US $56.80 |
||
|
14
|
14
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
15
|
15
01550-12653-000
ボルト
|
01550-12653-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1265B-000 Bolt |
01550-1265B-000 |
US $1.76 |
||
|
16
|
16
09108-12006-000 BOLT,STUD |
09108-12006-000 |
from US $2.16 |
||
