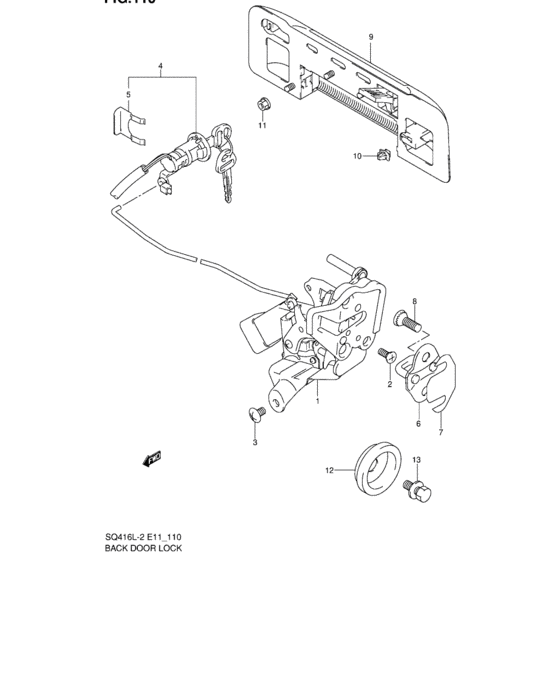

Back door lock (BACK DOOR LOCK) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-65D10-000
LATCH BACK DOOR
|
82510-65D10-000 |
— | ||
| replacement | |||||
|
1
|
1
82510-65D11-000 LATCH ASSY,BACK DR |
82510-65D11-000 |
from US $219.92 |
||
|
2
|
2
09137-06025-000 SCREW(6X16) |
09137-06025-000 |
from US $1.19 |
||
|
3
|
3
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
3
|
3
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
4
|
4
82500-65810-000 CYLINDER,SET BACK DR LOCK |
82500-65810-000 |
from US $74.93 |
||
|
5
|
5
82577-61A00-000 RETAINER,RR GATE LATCH |
82577-61A00-000 |
from US $2.07 |
||
|
6
|
6
82610-60A01-000 STRIKER,FR DOOR LATCH |
82610-60A01-000 |
from US $10.71 |
||
|
7
|
7
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
8
|
8
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
9
|
9
82850-65D11-5PK
Handle, door outer
|
82850-65D11-5PK |
— | ||
| replacement | |||||
|
9
|
9
82850-65D13-5PK HANDLE,BACK DOOR OUTER (BLACK) |
82850-65D13-5PK |
US $89.21 |
||
|
10
|
10
83942-65D00-000 CLIP |
83942-65D00-000 |
from US $1.52 |
||
|
11
|
11
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
12
|
12
82761-61A00-000 MALE,BACK DR STOP DR |
82761-61A00-000 |
from US $15.44 |
||
|
13
|
13
01560-08163-000
Bolt, lower
|
01560-08163-000 |
— | ||
| replacement | |||||
|
13
|
13
01560-0816A-000 Bolt |
01560-0816A-000 |
from US $0.96 |
||
