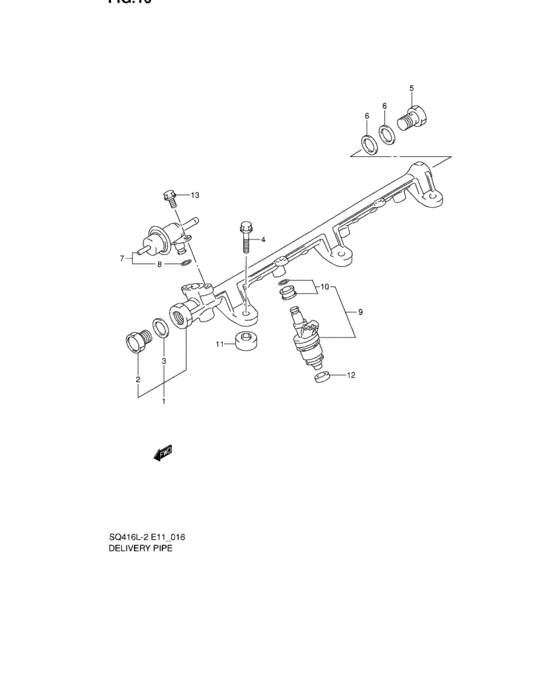

Delivery pipe (DELIVERY PIPE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15700-66810-000
Pipe set,delivery
|
15700-66810-000 |
— | ||
| replacements | |||||
|
1
|
1
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.60 |
||
|
1
|
1
15731-66D01-000 PIPE,DELIVERY |
15731-66D01-000 |
US $147.57 |
||
|
1
|
1
15762-61B01-000 GASKET,UNION(14X19X0.84) |
15762-61B01-000 |
from US $1.52 |
||
|
2
|
2
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.60 |
||
|
3
|
3
15762-61B00-000
Gasket,union(14x19x0.84)
|
15762-61B00-000 |
— | ||
| replacement | |||||
|
3
|
3
15762-61B01-000 GASKET,UNION(14X19X0.84) |
15762-61B01-000 |
from US $1.52 |
||
|
4
|
4
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
4
|
4
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
09360-14012-000 BOLT,14X27Bolt, union (14x27) |
09360-14012-000 |
from US $5.58 |
||
|
6
|
6
15762-61B00-000
Gasket,union(14x19x0.84)
|
15762-61B00-000 |
— | ||
| replacement | |||||
|
6
|
6
15762-61B01-000 GASKET,UNION(14X19X0.84) |
15762-61B01-000 |
from US $1.52 |
||
|
7
|
7
15160-77E00-000 REGULATOR FUEL PRESSURE |
15160-77E00-000 |
US $154.49 |
||
| replacement | |||||
|
7
|
7
15610-67D00-000 REGULATOR,FUEL PRESSURE |
15610-67D00-000 |
from US $154.49 |
||
|
8
|
8
15710-51E10-000 O-RING |
15710-51E10-000 |
from US $2.28 |
||
|
9
|
9
15710-66D00-000 INJECTOR ASSY,FUEL |
15710-66D00-000 |
from US $237.40 |
||
|
10
|
10
15716-65DT0-000 GROMMET SET,FUEL INJECTOR |
15716-65DT0-000 |
from US $8.64 |
||
|
11
|
11
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe |
15735-58B00-000 |
from US $2.72 |
||
|
12
|
12
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.64 |
||
|
13
|
13
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $0.95 |
||
