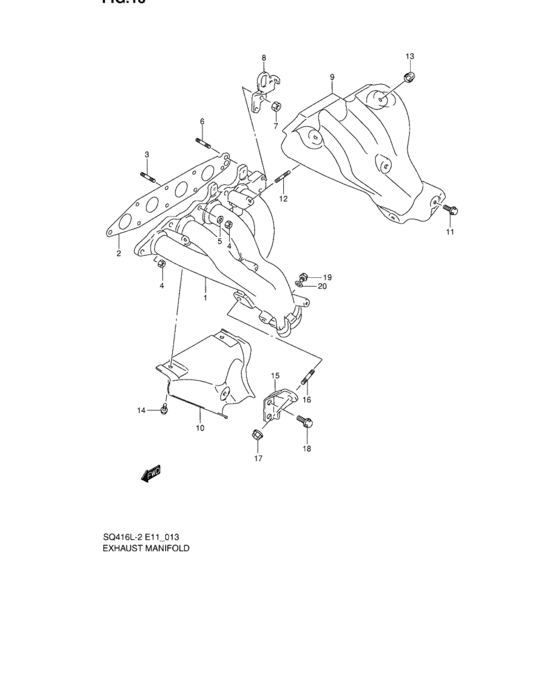

Exhaust manifold (EXHAUST MANIFOLD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-58BV0-000 MANIFOLD,EXH |
14111-58BV0-000 |
from US $286.02 |
||
|
2
|
2
14140-52G00-000 Gasket, exhaust manifold |
14140-52G00-000 |
from US $16.83 |
||
|
3
|
3
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.28 |
||
|
4
|
4
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
5
|
5
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
6
|
6
01421-08353-000
Bolt, stud
|
01421-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.60 |
||
|
7
|
7
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
7
|
7
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
8
|
8
11851-66D01-000 H00K,ENGINE |
11851-66D01-000 |
US $8.50 |
||
|
9
|
9
14120-58B02-000 COVER,EXH MANF,UPPER |
14120-58B02-000 |
from US $38.32 |
||
|
10
|
10
14130-58B00-000 COVER,EXH MANF,LOWER |
14130-58B00-000 |
from US $32.18 |
||
|
11
|
11
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.19 |
||
|
12
|
12
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
12
|
12
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
13
|
13
09159-06077-000 NUT |
09159-06077-000 |
from US $1.28 |
||
|
14
|
14
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.19 |
||
|
15
|
15
14270-58B00-000 STIFFENER,EXH MANF |
14270-58B00-000 |
US $34.04 |
||
|
16
|
16
01411-10163-000
STUD BOLT
|
01411-10163-000 |
— | ||
| replacement | |||||
|
16
|
16
01411-1016A-000 BOLT,STUD |
01411-1016A-000 |
from US $1.60 |
||
|
17
|
17
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
18
|
18
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
19
|
19
09247-18003-000 PLUG |
09247-18003-000 |
from US $1.17 |
||
|
20
|
20
09168-18008-000 GASKET(17.7X24.2X1.6) |
09168-18008-000 |
from US $1.12 |
||
