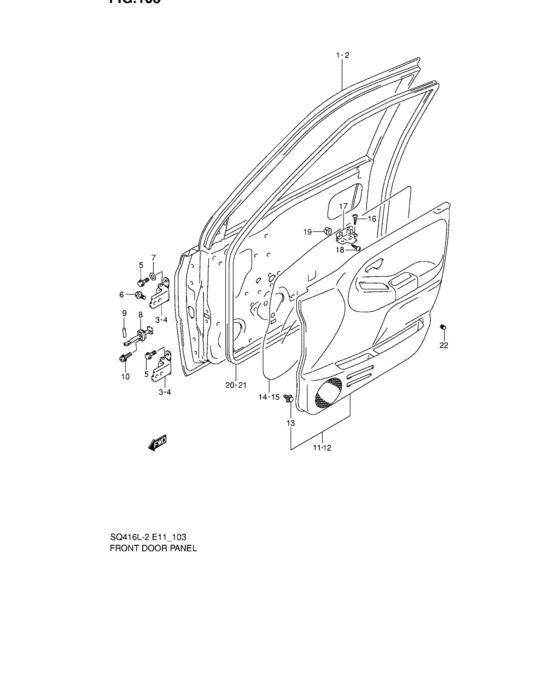

Front door panel (FRONT DOOR PANEL) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-65820-000
パネルアッシ,フロントドア,ライト
|
68001-65820-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-52811-000 PANEL ASSY,FRONT DOOR,R |
68001-52811-000 |
US $739.20 |
||
|
2
|
2
68002-65820-000
パネルアッシ,フロントドア,レフト
|
68002-65820-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-52811-000 PANEL ASSY,FRONT DOOR,L |
68002-52811-000 |
US $739.20 |
||
|
3
|
3
69310-65D00-000 HINGE,FR DOOR,NO.1UPPER RH,LOWER LH |
69310-65D00-000 |
US $41.95 |
||
|
4
|
4
69320-65D00-000 HINGE,FR DOOR,NO.2UPPER LH,LOWER RH |
69320-65D00-000 |
US $41.95 |
||
|
5
|
5
69491-65D00-000
Bolt
|
69491-65D00-000 |
— | ||
| replacement | |||||
|
5
|
5
09103-08389-000 BOLT(8X24) |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
01551-08203-000
Bolt
|
01551-08203-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
7
|
7
69480-65D00-000
Washer
|
69480-65D00-000 |
— | ||
|
8
|
8
81810-65D00-000 STOP,FRONT DOOR OPEN |
81810-65D00-000 |
US $37.24 |
||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.96 |
||
|
11
|
11
83701-65DC2-DV4
Trim assy, dr rh
|
83701-65DC2-DV4 |
— | ||
| replacements | |||||
|
11
|
11
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
11
|
11
83710-65DC4-DV4
TRIM,FRONT DOOR,R
|
83710-65DC4-DV4 |
— | ||
|
12
|
12
83702-65DG2-DV4
Trim assy, dr lh
|
83702-65DG2-DV4 |
— | ||
| replacements | |||||
|
12
|
12
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
12
|
12
83720-65DG4-DV4
TRIM,FRONT DOOR,L
|
83720-65DG4-DV4 |
— | ||
|
13
|
13
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83911-65D01-000 COVER,FR DR SEALING,R |
83911-65D01-000 |
US $13.87 |
||
|
15
|
15
83912-65D01-000 COVER,FR DR SEALING,L |
83912-65D01-000 |
US $13.87 |
||
|
16
|
16
03142-04163-000
Screw
|
03142-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.96 |
||
|
17
|
17
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE |
84482-65D00-000 |
US $4.16 |
||
|
18
|
18
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
19
|
19
09148-06007-000 NUT |
09148-06007-000 |
US $0.91 |
||
|
20
|
20
84641-52D00-000 WEATHERSTRIP,FR DR OPNG,R |
84641-52D00-000 |
US $99.57 |
||
|
21
|
21
84651-52D00-000
WEATHERSTRIP,FR DR OPNG,L
|
84651-52D00-000 |
— | ||
|
22
|
22
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower |
82711-56B00-000 |
from US $2.88 |
||
