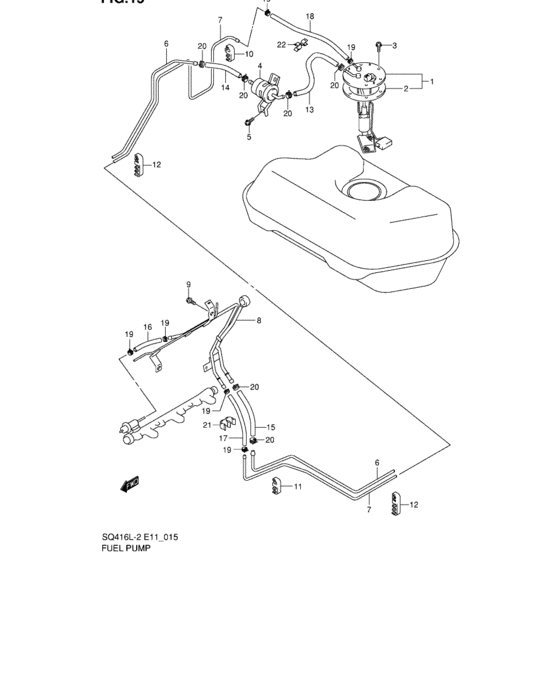

Fuel Pump (FUEL PUMP) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-65D02-000 PUMP ASSY,FUEL |
15100-65D02-000 |
from US $567.29 |
||
|
2
|
2
15111-65D00-000 GASKET,FUEL PUMP |
15111-65D00-000 |
from US $13.84 |
||
|
3
|
3
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
4
|
4
15410-65D00-000 FILTER,FUEL |
15410-65D00-000 |
from US $45.54 |
||
|
5
|
5
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
15821-65D00-000 PIPE,FUEL FEED |
15821-65D00-000 |
from US $34.88 |
||
|
7
|
7
15861-65D00-000 PIPE,FUEL RTN |
15861-65D00-000 |
from US $39.02 |
||
|
8
|
8
15850-66D00-000 PIPE,FUEL ENG SIDE |
15850-66D00-000 |
US $68.08 |
||
|
9
|
9
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
15893-56B00-000 CLAMP,FUEL PIPE |
15893-56B00-000 |
from US $2.14 |
||
|
11
|
11
15893-60A11-000 CLAMP,FUEL PIPE |
15893-60A11-000 |
from US $1.15 |
||
|
12
|
12
15895-60A11-000 CLAMP,FUEL PIPE |
15895-60A11-000 |
from US $1.87 |
||
|
13
|
13
15815-65D00-000 HOSE,FUEL FILTER INLET |
15815-65D00-000 |
US $58.14 |
||
| replacement | |||||
|
13
|
13
15800-52810-000
HOSE SET,FUEL FILTER INLET
|
15800-52810-000 |
— | ||
|
14
|
14
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->130 |
09356-75147-600 |
from US $46.04 |
||
|
15
|
15
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600->290 |
09356-75147-600 |
from US $46.04 |
||
|
16
|
16
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600->100 |
09356-55117-600 |
from US $58.16 |
||
|
17
|
17
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600->290 |
09356-55117-600 |
from US $58.16 |
||
|
18
|
18
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600->350 |
09356-55117-600 |
from US $58.16 |
||
|
19
|
19
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
20
|
20
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.76 |
||
|
21
|
21
09408-00083-000 CLAMP |
09408-00083-000 |
US $17.30 |
||
|
22
|
22
09408-00174-000 CLAMP |
09408-00174-000 |
US $1.98 |
||
