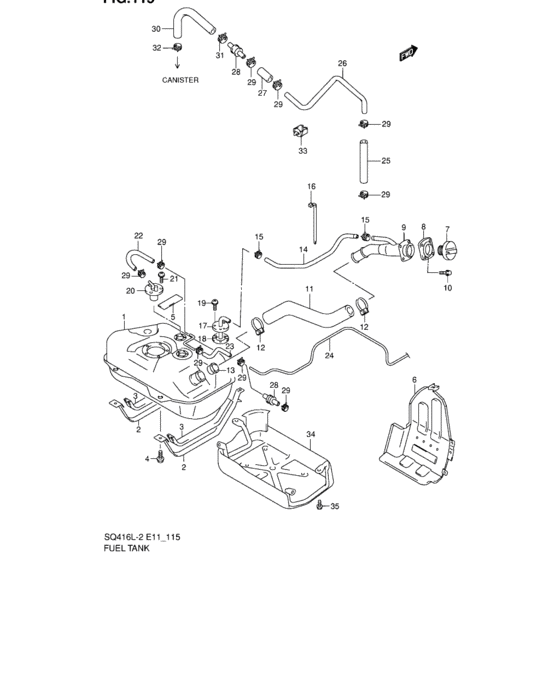

Fuel tank (FUEL TANK) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-65D13-000
Tank assy, fuel
|
89101-65D13-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-65DA1-000 TANK ASSY,FUEL |
89101-65DA1-000 |
from US $444.26 |
||
|
2
|
2
89360-65D00-000 BELT,FUEL TANK FIXER |
89360-65D00-000 |
from US $18.81 |
||
|
3
|
3
89385-65D00-000 PAD,FUEL TANK BELT |
89385-65D00-000 |
from US $10.08 |
||
|
4
|
4
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.60 |
||
|
5
|
5
89381-65D10-000 PAD,FUEL TANK |
89381-65D10-000 |
from US $6.19 |
||
|
6
|
6
89311-65DA0-000 PROTECTOR,FILLER HOSE |
89311-65DA0-000 |
from US $30.02 |
||
|
7
|
7
89260-85502-000
Cap assy, fuel tiller
|
89260-85502-000 |
— | ||
| replacement | |||||
|
7
|
7
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $21.49 |
||
|
8
|
8
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
from US $3.87 |
||
|
9
|
9
89201-65D11-000
Neck assy,fuel filler
|
89201-65D11-000 |
— | ||
| replacement | |||||
|
9
|
9
89201-65D12-000 NECK ASSY,FUEL FILLER |
89201-65D12-000 |
US $93.84 |
||
|
10
|
10
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
from US $0.63 |
||
|
11
|
11
89241-65D10-000 HOSE,FUEL TANK FILLER |
89241-65D10-000 |
US $30.73 |
||
|
12
|
12
09400-45311-000 CLAMP |
09400-45311-000 |
from US $1.01 |
||
|
13
|
13
89280-77A00-000 VALVE,FUEL TANK INLET |
89280-77A00-000 |
from US $5.87 |
||
|
14
|
14
09355-11165-00B HOSE(11X16X2000)L:2000->620 |
09355-11165-00B |
US $27.60 |
||
|
15
|
15
09401-14404-000 CLIP |
09401-14404-000 |
from US $3.59 |
||
|
16
|
16
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $1.87 |
||
|
17
|
17
89250-65D00-000
Pipe comp,fuel tank breather
|
89250-65D00-000 |
— | ||
| replacement | |||||
|
17
|
17
89250-65D01-000 PIPE,FUEL TANK BREATHER |
89250-65D01-000 |
US $32 |
||
|
18
|
18
89255-65D00-000 GASKET,BREATHER PIPE |
89255-65D00-000 |
from US $2.21 |
||
|
19
|
19
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $1.12 |
||
|
20
|
20
89485-65D00-000 VALVE,FUEL CUT |
89485-65D00-000 |
from US $13.32 |
||
|
21
|
21
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $1.12 |
||
|
22
|
22
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->180 |
09355-54115-600 |
from US $7.20 |
||
|
23
|
23
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->180 |
09355-54115-600 |
from US $7.20 |
||
|
24
|
24
89431-65D00-000 PIPE,EVAPORATION MAIN |
89431-65D00-000 |
US $43.79 |
||
|
25
|
25
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->200 |
09355-54115-600 |
from US $7.20 |
||
|
26
|
26
89432-65D11-000 PIPE,CANISTER INLET |
89432-65D11-000 |
US $8.72 |
||
|
27
|
27
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->60 |
09355-54115-600 |
from US $7.20 |
||
|
28
|
28
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $29.27 |
||
|
29
|
29
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.88 |
||
|
30
|
30
09359-35751-600 HOSE(3.5X7.5X600)Hose, cstr purge L:600->150 |
09359-35751-600 |
from US $7.90 |
||
|
31
|
31
09401-08411-000 CLIP |
09401-08411-000 |
from US $0.91 |
||
|
32
|
32
09401-06405-000 CLIP |
09401-06405-000 |
from US $1.12 |
||
|
33
|
33
09403-06321-000 CLAMP |
09403-06321-000 |
US $21 |
||
|
34
|
34
89320-65D01-000 PROTECTOR,FUEL TANK |
89320-65D01-000 |
US $121.12 |
||
|
35
|
35
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.60 |
||
