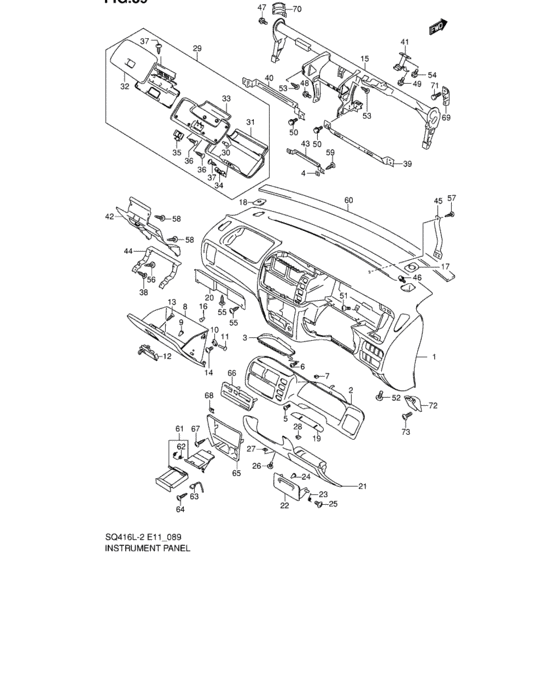

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-65D01-T01 PANEL,INSTR MAIN |
73111-65D01-T01 |
US $390.08 |
||
|
2
|
2
73311-65D00-5PK PANEL,INSTR CLST |
73311-65D00-5PK |
US $78.02 |
||
|
3
|
3
73312-65D00-5PK
TRAY,INSTRUMENT CLUSTER
|
73312-65D00-5PK |
— | ||
|
4
|
4
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
5
|
5
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
6
|
6
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
6
|
6
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.88 |
||
|
7
|
7
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.80 |
||
|
8
|
8
73410-65D00-T01 BOX,GLOVE |
73410-65D00-T01 |
from US $78.86 |
||
|
9
|
9
73413-65D00-000 CUSHION,GLOVE BOX |
73413-65D00-000 |
US $2.43 |
||
|
10
|
10
73422-50G00-000 HINGE,GLOVE BOX |
73422-50G00-000 |
US $3.61 |
||
|
11
|
11
73423-50G00-000 PIN,GLOVE BOX HINGEPin, box |
73423-50G00-000 |
from US $1.53 |
||
|
12
|
12
73430-60870-T01 LOCK,GLOVE BOX |
73430-60870-T01 |
from US $86.72 |
||
|
13
|
13
03521-04163-000
スクリュ
|
03521-04163-000 |
— | ||
| replacement | |||||
|
13
|
13
03521-0416A-000 SCREW |
03521-0416A-000 |
US $10.30 |
||
|
14
|
14
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.96 |
||
|
15
|
15
73210-65D42-000
Member, steering support
|
73210-65D42-000 |
— | ||
| replacement | |||||
|
15
|
15
73210-65D02-000
MEMBER,STRG SUPPORT
|
73210-65D02-000 |
— | ||
|
16
|
16
73461-77E00-000 CUSHION,GLV BOX LIDCushion, glove box lid side |
73461-77E00-000 |
from US $1.44 |
||
|
17
|
17
73811-65D00-T01 COVER,INSTPN UPPER,R |
73811-65D00-T01 |
US $5 |
||
|
18
|
18
73812-65D00-T01 COVER,INSTPN UPPER,L |
73812-65D00-T01 |
US $5 |
||
|
19
|
19
73814-65D00-000 BLIND,STRG COLUMN HOLE |
73814-65D00-000 |
US $6.99 |
||
|
20
|
20
73813-65D00-T01 COVER,GLOVE BOX LID |
73813-65D00-T01 |
US $16.93 |
||
|
21
|
21
73821-65D00-T01 COVER,STRG COLUMN HOLE |
73821-65D00-T01 |
US $72.50 |
||
|
22
|
22
73822-65D00-T01 POCKET,STRG COL HOLE COV |
73822-65D00-T01 |
from US $20.63 |
||
|
23
|
23
73823-65D00-000 SPRING,COLUMN HOLE POCKET |
73823-65D00-000 |
US $2.72 |
||
|
24
|
24
75813-80F00-000 CUSHION |
75813-80F00-000 |
US $2.47 |
||
|
25
|
25
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
25
|
25
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
25
|
25
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.88 |
||
|
26
|
26
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
26
|
26
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
27
|
27
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
28
|
28
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.80 |
||
|
29
|
29
73920-65D00-T01 BOX,I/P UPPER |
73920-65D00-T01 |
from US $96.10 |
||
|
30
|
30
73413-82C00-000 CUSHION |
73413-82C00-000 |
from US $1.60 |
||
|
31
|
31
73921-65D00-T01 BOX,I/P UPPER |
73921-65D00-T01 |
US $56.30 |
||
|
32
|
32
73922-65D00-T01 LID,I/P UPR BOX OUTER |
73922-65D00-T01 |
US $30.54 |
||
|
33
|
33
73923-65D00-T01 LID,I/P UPR BOX INNER |
73923-65D00-T01 |
US $30.18 |
||
|
34
|
34
73924-65D00-T01 STRIKER,I/P UPR BOX |
73924-65D00-T01 |
from US $3.65 |
||
|
35
|
35
73940-81A00-T01 LOCK,I/P BOX LID |
73940-81A00-T01 |
from US $22.79 |
||
|
36
|
36
03521-04123-000
スクリュ
|
03521-04123-000 |
— | ||
| replacement | |||||
|
36
|
36
03521-0412A-000 SCREW |
03521-0412A-000 |
US $0.80 |
||
|
37
|
37
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
37
|
37
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
38
|
38
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
38
|
38
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.74 |
||
|
39
|
39
73231-65D10-000 MEMBER,DRIVER LWR |
73231-65D10-000 |
US $28.89 |
||
|
40
|
40
73232-65D00-000 MEMBER,PASSENGER LWR |
73232-65D00-000 |
US $23.74 |
||
|
41
|
41
73240-65D00-000 STIFFENER,COWL UPPER |
73240-65D00-000 |
US $13.58 |
||
|
42
|
42
73830-65D00-000 PANEL,PASS KNEE BOLSTER |
73830-65D00-000 |
US $48.58 |
||
|
43
|
43
73322-65D00-000 REINFORCEMENT,I/P CTR LWR |
73322-65D00-000 |
US $9.20 |
||
|
44
|
44
73816-65D00-000
REINFORCEMENT,UPR GLOVE BOX
|
73816-65D00-000 |
— | ||
|
45
|
45
73817-65D00-000 STAY,INSTPN DRIVER |
73817-65D00-000 |
US $7.25 |
||
|
46
|
46
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
46
|
46
01580-0616A-000 Bolt |
01580-0616A-000 |
from US $0.96 |
||
|
47
|
47
73291-50G01-000
Bolt
|
73291-50G01-000 |
— | ||
| replacement | |||||
|
47
|
47
73291-50G20-000 BOLT,STRG SPRT MBR SIDE |
73291-50G20-000 |
US $2.91 |
||
|
48
|
48
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
48
|
48
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
48
|
48
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
49
|
49
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
49
|
49
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
49
|
49
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
50
|
50
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
50
|
50
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
51
|
51
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
51
|
51
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.96 |
||
|
52
|
52
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
52
|
52
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.96 |
||
|
53
|
53
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
53
|
53
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.74 |
||
|
54
|
54
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
54
|
54
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
55
|
55
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
55
|
55
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
56
|
56
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
56
|
56
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.74 |
||
|
57
|
57
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
57
|
57
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.74 |
||
|
58
|
58
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
58
|
58
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.74 |
||
|
59
|
59
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
59
|
59
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.74 |
||
|
60
|
60
73118-81A00-000
シール,インストゥルメントパネル,15X1160X3
|
73118-81A00-000 |
— | ||
| replacement | |||||
|
60
|
60
73118-83E10-000 SEAL,I/P |
73118-83E10-000 |
US $5.92 |
||
|
61
|
61
89810-65D00-5PK
ASH TRAY FRONT
|
89810-65D00-5PK |
— | ||
| replacement | |||||
|
61
|
61
89810-65D10-5PK ASHTRAY,FR |
89810-65D10-5PK |
from US $34.22 |
||
|
62
|
62
89813-60E00-000 SPRING,PROTECTOR |
89813-60E00-000 |
from US $1.52 |
||
|
63
|
63
89819-60E01-000 HOLDER,ASHTRAY LAMP |
89819-60E01-000 |
US $4.38 |
||
|
64
|
64
03541-04163-000
Screw
|
03541-04163-000 |
— | ||
| replacement | |||||
|
64
|
64
03541-0416A-000 SCREWScrew, trunk box lamp |
03541-0416A-000 |
from US $0.76 |
||
|
65
|
65
73815-65D00-5PK PANEL,CENTER GARNISH |
73815-65D00-5PK |
US $32.38 |
||
|
66
|
66
74510-65D40-5PK PANEL,HEATER CONTROL |
74510-65D40-5PK |
US $18.20 |
||
|
67
|
67
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
67
|
67
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
68
|
68
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
69
|
69
76451-65D10-000 REINFORCEMENT,COWL BOX SIDE,R |
76451-65D10-000 |
US $9.16 |
||
|
70
|
70
76452-65D10-000 REINFORCEMENT,COWL BOX SIDE,L |
76452-65D10-000 |
US $9.16 |
||
|
71
|
71
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
72
|
72
82150-60E00-T01 LEVER,HOOD LATCH RLSE |
82150-60E00-T01 |
from US $17.71 |
||
|
73
|
73
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
73
|
73
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.96 |
||
