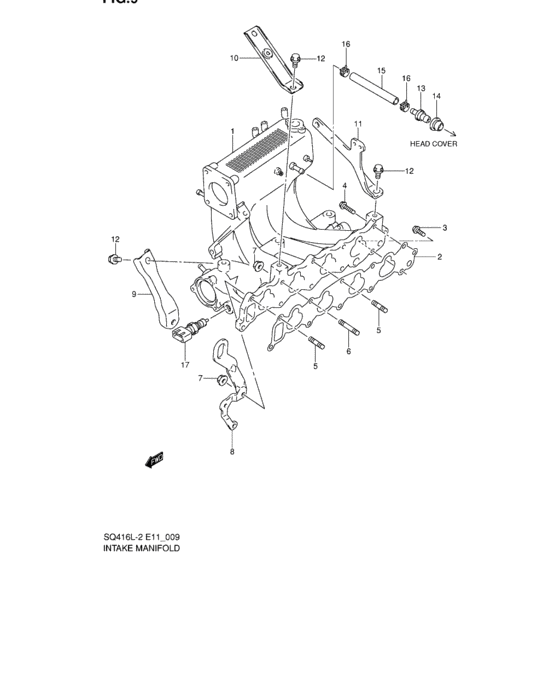

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-66D11-000 MANIFOLD,INTK |
13110-66D11-000 |
US $538.56 |
||
|
2
|
2
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold |
13119-57B00-000 |
from US $12.87 |
||
|
3
|
3
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
3
|
3
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 Bolt |
01550-0835B-000 |
from US $1.28 |
||
|
4
|
4
01550-0835A-000 Bolt |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.28 |
||
|
6
|
6
01421-08353-000
Bolt, stud
|
01421-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.60 |
||
|
7
|
7
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
11852-66D01-000
フック,エンジン
|
11852-66D01-000 |
— | ||
| replacement | |||||
|
8
|
8
11852-66D02-000 HOOK,ENGINE NO.2 |
11852-66D02-000 |
US $8.91 |
||
|
9
|
9
13161-66D00-000 STIFFENER,INTK MANF RR |
13161-66D00-000 |
US $11.59 |
||
|
10
|
10
13166-66D00-000 STIFFENER,INTK MANF FR |
13166-66D00-000 |
US $5.59 |
||
|
11
|
11
13627-58B00-000 STIFFENER,INTK MANF NO.2 |
13627-58B00-000 |
US $32.38 |
||
|
12
|
12
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
13
|
13
18118-58B00-000 VALVE,PCV |
18118-58B00-000 |
from US $15.10 |
||
|
14
|
14
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
14
|
14
11198-98L00-000 Seal,pcv Valve |
11198-98L00-000 |
from US $2.74 |
||
|
15
|
15
09354-80153-600 HOSE(8X15X600)L:600->120 |
09354-80153-600 |
from US $26.89 |
||
|
16
|
16
09401-13414-000 CLIPClip, pcv hose |
09401-13414-000 |
from US $1.60 |
||
|
17
|
17
13650-50G01-000 Sensor,water Temp |
13650-50G01-000 |
from US $70.76 |
||
