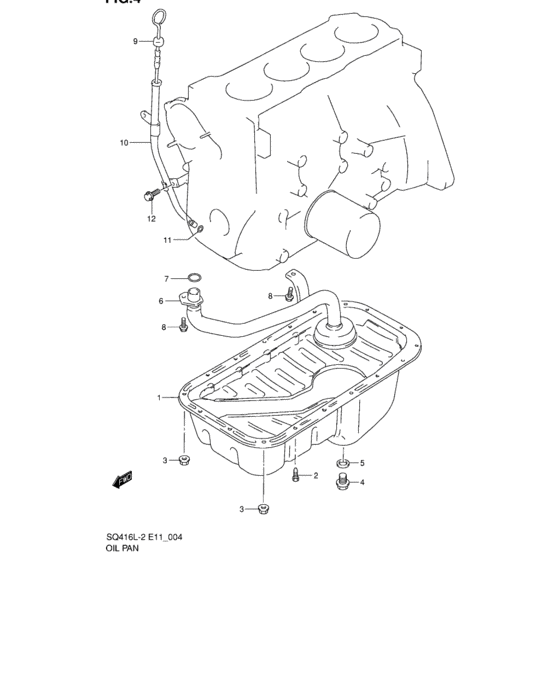

Oil pan (OIL PAN) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-60A10-000 PAN,OIL |
11510-60A10-000 |
from US $131.31 |
||
|
2
|
2
09117-06061-000 BOLT(6X16) |
09117-06061-000 |
from US $0.92 |
||
|
3
|
3
09159-06077-000 NUT |
09159-06077-000 |
from US $1.28 |
||
|
4
|
4
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
4
|
4
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.67 |
||
|
5
|
5
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union |
09168-14015-000 |
from US $1.19 |
||
|
6
|
6
16520-58B00-000 STRAINER,OIL PUMP |
16520-58B00-000 |
from US $30.44 |
||
|
7
|
7
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) |
09280-17002-000 |
from US $2.68 |
||
|
8
|
8
07120-06123-000
Bolt
|
07120-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
07120-0612B-000 BoltPlug |
07120-0612B-000 |
from US $0.96 |
||
|
9
|
9
16910-66D00-000 GAUGE,OIL LEVEL |
16910-66D00-000 |
from US $17.30 |
||
|
10
|
10
16930-64B02-000 GUIDE,OIL LEVEL GAUGE |
16930-64B02-000 |
from US $11.30 |
||
|
11
|
11
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
12
|
12
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.19 |
||
