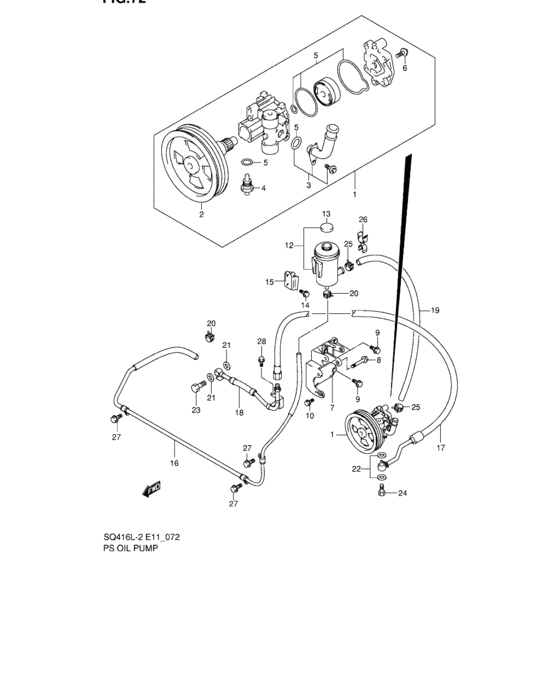

Ps oil pump (PS OIL PUMP) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-65D00-000 PUMP ASSY,POWER STEERING |
49100-65D00-000 |
from US $511.25 |
||
|
2
|
2
49111-56B30-000 PULLEY SET |
49111-56B30-000 |
from US $95.15 |
||
|
3
|
3
49112-56B30-000 CONNECTOR SET |
49112-56B30-000 |
US $50.78 |
||
|
4
|
4
49113-65D00-000 TERMINAL SET |
49113-65D00-000 |
from US $40.80 |
||
|
5
|
5
49114-56B30-000 SEAL SET |
49114-56B30-000 |
from US $47.88 |
||
|
6
|
6
49115-56B30-000 BOLT SET |
49115-56B30-000 |
from US $7.04 |
||
|
7
|
7
49120-65D00-000 BRACKET,PUMP |
49120-65D00-000 |
from US $182.52 |
||
|
8
|
8
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
8
|
8
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
from US $1.24 |
||
|
9
|
9
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-1030B-000 BoltBolt, axle housing rear |
01550-1030B-000 |
from US $1.87 |
||
|
9
|
9
01550-1030A-000 Bolt |
01550-1030A-000 |
from US $1.12 |
||
|
10
|
10
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
10
|
10
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
11
|
11
01550-10353-000
Bolt
|
01550-10353-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1035A-000 BoltBolt, fr fork upper |
01550-1035A-000 |
from US $1.62 |
||
|
12
|
12
49140-65D00-000
TANK ASSY POWER STEERING OIL
|
49140-65D00-000 |
— | ||
| replacement | |||||
|
12
|
12
49140-54J01-000 TANK ASSY,POWER STRG OIL |
49140-54J01-000 |
from US $70.07 |
||
|
13
|
13
49142-65D00-000 CAP,PS OIL TANK |
49142-65D00-000 |
from US $6.56 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
15
|
15
49150-65D00-000 BRACKET,RESERVE TANK |
49150-65D00-000 |
US $20.61 |
||
|
16
|
16
49220-65D00-000
HOSE ASSY,RETURN
|
49220-65D00-000 |
— | ||
|
17
|
17
49230-65D00-000 HOSE,PRESSURE PUMP SIDE |
49230-65D00-000 |
from US $83.59 |
||
|
18
|
18
49210-65D00-000 HOSE,PRESSURE RACK SIDE |
49210-65D00-000 |
US $337.60 |
||
|
19
|
19
49214-65D00-000 HOSE,SUCTION |
49214-65D00-000 |
from US $15.19 |
||
|
20
|
20
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.33 |
||
|
21
|
21
09168-14014-000 GASKET(14X18X1.5) |
09168-14014-000 |
from US $1.10 |
||
|
22
|
22
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $1.31 |
||
|
23
|
23
09360-14011-000 UNION |
09360-14011-000 |
from US $4.66 |
||
|
24
|
24
09360-16003-000 UNION |
09360-16003-000 |
from US $9.25 |
||
|
25
|
25
09401-20405-000 CLIPClip, tank |
09401-20405-000 |
from US $2.32 |
||
|
26
|
26
09408-00176-000 CLAMP |
09408-00176-000 |
from US $1.91 |
||
|
27
|
27
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
27
|
27
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.83 |
||
|
28
|
28
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
29
|
29
49225-65D10-000 CLAMP,RETURN GEAR SIDE |
49225-65D10-000 |
from US $1.64 |
||
