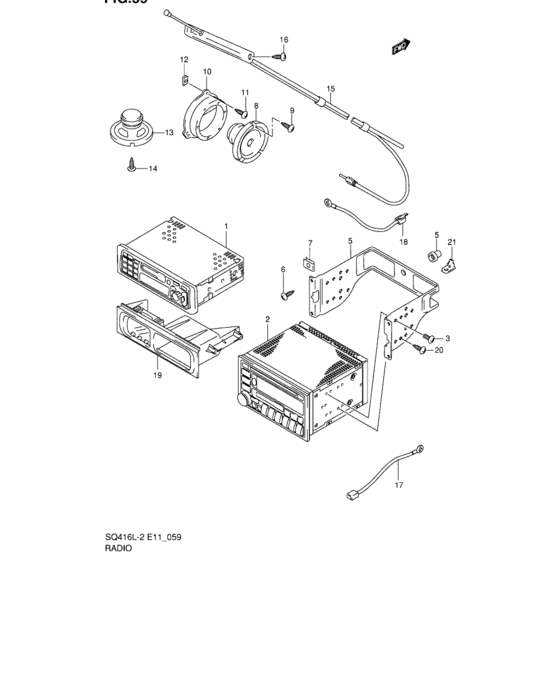

Radio (RADIO) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-65D10-000
TUNER ASSY,AM/FM CASSETTE 10KH
|
39101-65D10-000 |
— | ||
|
2
|
2
39101-65D80-000
TUNER ASSY,AM/FM CD 10KHZ
|
39101-65D80-000 |
— | ||
|
2
|
2
39101-65DB0-000
TUNER ASSY,AM/FM CD CASSETTE
|
39101-65DB0-000 |
— | ||
|
3
|
3
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
4
|
4
39321-65D00-000 BRACKET,TUNER |
39321-65D00-000 |
US $15.97 |
||
|
5
|
5
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
6
|
6
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
7
|
7
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
8
|
8
39102-63G12-000 SPEAKER ASSY |
39102-63G12-000 |
from US $25.34 |
||
|
9
|
9
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
10
|
10
39350-82D00-000 BRACKET,FR SPKR |
39350-82D00-000 |
US $17.19 |
||
|
11
|
11
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
12
|
12
09148-06007-000 NUT |
09148-06007-000 |
from US $0.91 |
||
|
13
|
13
39102-63G12-000 SPEAKER ASSY |
39102-63G12-000 |
from US $25.34 |
||
|
14
|
14
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
15
|
15
39250-67D00-000 ANTENNA ASSY |
39250-67D00-000 |
from US $51.05 |
||
|
16
|
16
09129-04003-000 SCREW(4X12) |
09129-04003-000 |
US $1.60 |
||
|
17
|
17
39191-50F00-000 WIRE,TUNER GND |
39191-50F00-000 |
US $2.24 |
||
|
18
|
18
39312-65D00-000 WIRE,NOISE SUPPR |
39312-65D00-000 |
US $3.90 |
||
|
19
|
19
34600-65D00-000
Clock assy
N/2 DIN TUNER |
34600-65D00-000 |
— | ||
| replacement | |||||
|
19
|
19
34600-65D01-000 CLOCK ASSYN/2 DIN TUNER |
34600-65D01-000 |
US $95.31 |
||
|
20
|
20
03242-05123-000
Screw, inner cover
N/2 DIN TUNER |
03242-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0512A-000 SCREWN/2 DIN TUNER |
03241-0512A-000 |
from US $0.68 |
||
|
21
|
21
36865-82000-000 TERMINAL,GND |
36865-82000-000 |
US $2.80 |
||
