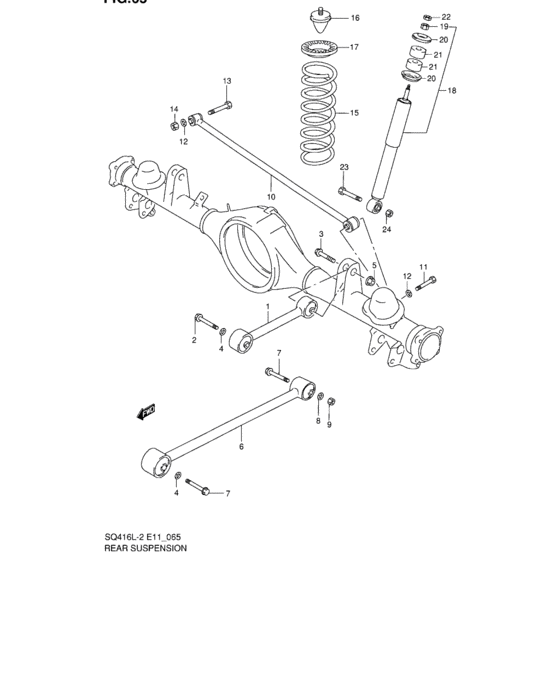

Rear suspension (REAR SUSPENSION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46201-65D00-000
ROD ASSY SUSPENSION UPPER
|
46201-65D00-000 |
— | ||
| replacement | |||||
|
1
|
1
46201-65D50-000 ROD ASSY,RR SPNSN UPPER |
46201-65D50-000 |
from US $103.03 |
||
|
2
|
2
09135-12007-000 BOLT(12X76) |
09135-12007-000 |
from US $3.67 |
||
|
3
|
3
09135-12008-000 BOLT(12X71) |
09135-12008-000 |
from US $1.78 |
||
|
4
|
4
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
5
|
5
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
6
|
6
46202-65D01-000 ROD ASSY,RR SPNSN LOWER |
46202-65D01-000 |
from US $125.41 |
||
|
7
|
7
09135-12009-000 BOLT(12X88) |
09135-12009-000 |
from US $3.94 |
||
|
8
|
8
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
9
|
9
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
10
|
10
46300-65D00-000 ROD ASSY,RR SPNSN LATERAL |
46300-65D00-000 |
from US $99.61 |
||
|
11
|
11
09100-12071-000 BOLT(12X65) |
09100-12071-000 |
from US $3.04 |
||
|
12
|
12
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
13
|
13
09135-12003-000 BOLT(12X71) |
09135-12003-000 |
from US $2.88 |
||
|
14
|
14
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
14
|
14
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
15
|
15
41311-65D01-000 SPRING,REAR COIL |
41311-65D01-000 |
from US $77.09 |
||
|
16
|
16
42110-60A10-000 STOPPER,BUMP |
42110-60A10-000 |
from US $22.39 |
||
|
17
|
17
41211-65D00-000 SEAT,COIL SPRING RUBBER |
41211-65D00-000 |
from US $11.59 |
||
|
18
|
18
41700-65D01-000 ABSORBER ASSY SHOCK RR |
41700-65D01-000 |
US $122.67 |
||
| replacements | |||||
|
18
|
18
41700-65D03-000
ABSORBER ASSY,RR SHOCK
|
41700-65D03-000 |
— | ||
|
18
|
18
41700-65D04-000 Absorber Assy,rr Shock |
41700-65D04-000 |
US $94.75 |
||
|
19
|
19
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
19
|
19
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
20
|
20
09165-10003-000 WASHER |
09165-10003-000 |
from US $1.46 |
||
|
21
|
21
09320-10040-000 BUSHING |
09320-10040-000 |
from US $3.87 |
||
|
22
|
22
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
22
|
22
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
22
|
22
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
23
|
23
09135-12003-000 BOLT(12X71) |
09135-12003-000 |
from US $2.88 |
||
|
24
|
24
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
