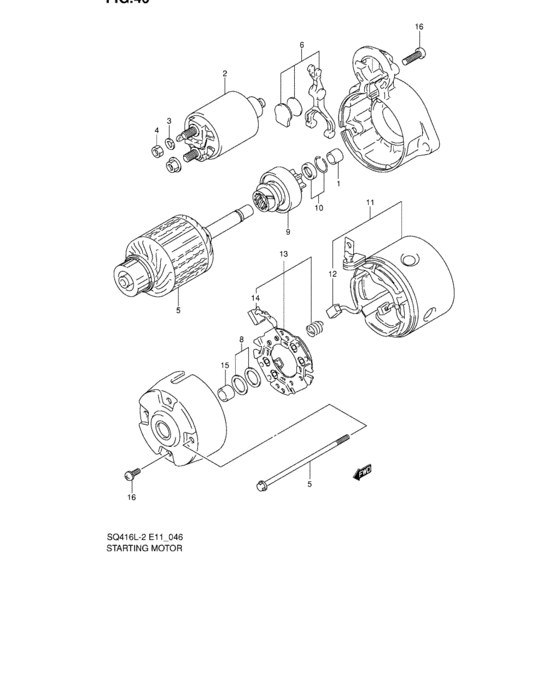

Starting motor (STARTING MOTOR) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31100-83031-000
Motor assy,starting
|
31100-83031-000 |
— | ||
| replacements | |||||
|
|
31100-83031-REM
Starting motor
|
31100-83031-REM |
— | ||
|
|
31100-83032-000 MOTOR ASSY,STARTING |
31100-83032-000 |
US $524.48 |
||
|
1
|
1
31152-79030-000 BEARING,FRONT |
31152-79030-000 |
from US $5.11 |
||
|
2
|
2
31220-84030-000 SWITCH ASSY |
31220-84030-000 |
from US $165.11 |
||
|
3
|
3
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
3
|
3
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.88 |
||
|
4
|
4
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31261-82130-000 Bolt |
31261-82130-000 |
from US $1.89 |
||
|
6
|
6
31191-82030-000 LEVER ASSY |
31191-82030-000 |
from US $6.19 |
||
|
7
|
7
31311-82632-000 ARMATURE |
31311-82632-000 |
from US $179.37 |
||
|
8
|
8
31361-79030-000 WASHER |
31361-79030-000 |
from US $5.20 |
||
|
9
|
9
31320-82631-000 CLUTCH ASSY |
31320-82631-000 |
from US $92.99 |
||
|
10
|
10
31313-80090-000 RING SET |
31313-80090-000 |
from US $4.25 |
||
|
11
|
11
31110-83030-000
YOKE ASSY
|
31110-83030-000 |
— | ||
|
12
|
12
31131-80090-000 BRUSH(+) |
31131-80090-000 |
from US $8.84 |
||
|
13
|
13
31173-82130-000 HOLDER ASSY,BRUSH |
31173-82130-000 |
from US $43.20 |
||
|
14
|
14
31132-80090-000 BRUSH(-) |
31132-80090-000 |
from US $8.60 |
||
|
15
|
15
31172-79030-000 BUSH |
31172-79030-000 |
from US $3.38 |
||
|
16
|
16
31136-79030-000 SCREW ASSY |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
16
|
16
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
