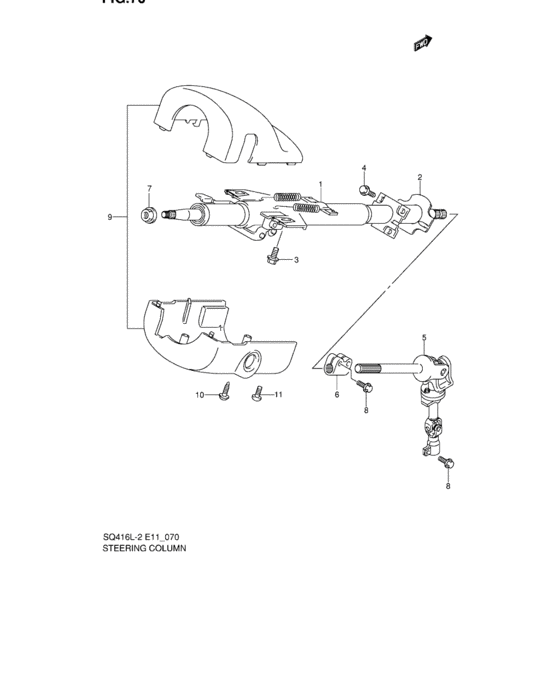

Steering column (STEERING COLUMN) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-65D10-T01
COLUMN ASSY STEERINGGRAY
|
48200-65D10-T01 |
— | ||
| replacement | |||||
|
1
|
1
48200-67D10-T01 COLUMN ASSY,STRG |
48200-67D10-T01 |
from US $398.79 |
||
|
2
|
2
48491-65D00-000 SEAL,STRG COLUMN LOWER |
48491-65D00-000 |
from US $3.02 |
||
|
3
|
3
01551-08253-000
Bolt
|
01551-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01551-0825A-000 Bolt |
01551-0825A-000 |
from US $1.12 |
||
|
4
|
4
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 Bolt |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
48220-65D20-000 SHAFT ASSY,STEERING LOWER |
48220-65D20-000 |
from US $281.25 |
||
|
6
|
6
48230-65D00-000 JOINT,STEERING SHAFT |
48230-65D00-000 |
from US $20.50 |
||
| replacement | |||||
|
6
|
6
48230-65D10-000 JOINT,STEERING SHAFT |
48230-65D10-000 |
from US $23.87 |
||
|
7
|
7
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
8
|
8
09117-08068-000 BOLT(8X30) |
09117-08068-000 |
from US $0.99 |
||
|
9
|
9
48400-65D00-T01
Cover assy,strg clmn(gray)
|
48400-65D00-T01 |
— | ||
|
10
|
10
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03211-0512A-000 SCREW |
03211-0512A-000 |
from US $0.45 |
||
|
11
|
11
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
from US $0.52 |
||
