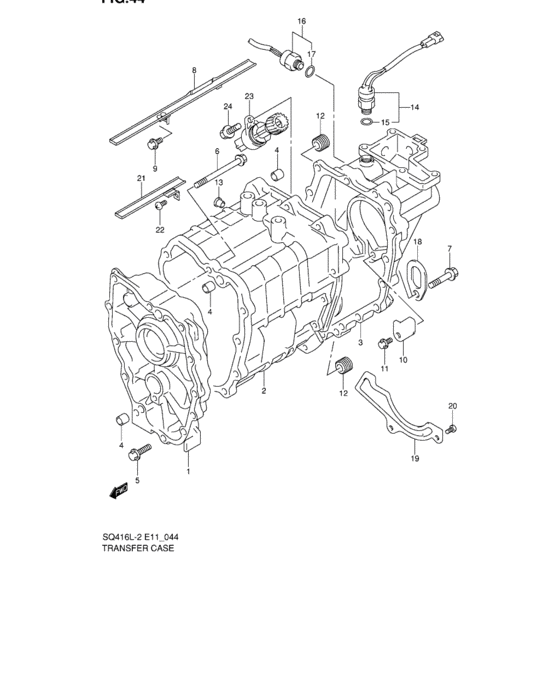

Transfer case (TRANSFER CASE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-85F40-000 CASE,T/F,FR |
29511-85F40-000 |
from US $87.62 |
||
|
2
|
2
29521-60A10-000 CASE,T/F,CENTER |
29521-60A10-000 |
US $177.89 |
||
|
3
|
3
29531-85F10-000 HOUSING TF |
29531-85F10-000 |
US $160.81 |
||
| replacements | |||||
|
3
|
3
29531-85F11-000 CASE,T/F,RR |
29531-85F11-000 |
from US $160.81 |
||
|
3
|
3
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.46 |
||
|
4
|
4
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
5
|
5
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
6
|
6
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
6
|
6
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
7
|
7
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0845B-000 Bolt |
01550-0845B-000 |
from US $1.06 |
||
|
7
|
7
01550-0845A-000 BoltBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
8
|
8
29528-60A00-000 GUTTER,T/F CTR CASE |
29528-60A00-000 |
US $3.83 |
||
|
9
|
9
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
9
|
9
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $0.88 |
||
|
10
|
10
29536-60A00-000
プレート,トランスファリヤケース
|
29536-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
29536-60A01-000 PLATE,T/F REAR CASE |
29536-60A01-000 |
US $2.10 |
||
|
11
|
11
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $0.88 |
||
|
12
|
12
09246-16010-000 PLUG |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
12
|
12
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.37 |
||
|
13
|
13
09250-08001-000 PLUG(OD:14)Cap, remote control shaft |
09250-08001-000 |
from US $0.52 |
||
|
14
|
14
37680-60A01-000 SWITCH ASSY,4WD |
37680-60A01-000 |
from US $36.72 |
||
|
15
|
15
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
16
|
16
37680-60A10-000
スイッチアッシ,4WD,ロー
|
37680-60A10-000 |
— | ||
| replacement | |||||
|
16
|
16
37680-60A11-000 SWITCH ASSY,4WD |
37680-60A11-000 |
from US $37.64 |
||
|
17
|
17
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
18
|
18
11851-62B00-000 HOOK |
11851-62B00-000 |
from US $1.87 |
||
|
19
|
19
29527-60A00-000 PLATE,T/F SYNC |
29527-60A00-000 |
from US $2.63 |
||
|
20
|
20
29526-60A00-000
スクリュ,6X12
|
29526-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
09125-06113-000 SCREW(6X12) |
09125-06113-000 |
US $21.70 |
||
|
21
|
21
29529-60A00-000 GUTTER,T/F SYNC |
29529-60A00-000 |
US $6.99 |
||
|
22
|
22
29526-60A00-000
スクリュ,6X12
|
29526-60A00-000 |
— | ||
| replacement | |||||
|
22
|
22
09125-06113-000 SCREW(6X12) |
09125-06113-000 |
US $21.70 |
||
|
23
|
23
34910-65D00-000
Sensor assy,speed
|
34910-65D00-000 |
— | ||
| replacement | |||||
|
23
|
23
34910-65D01-000 SENSOR ASSY,SPEED |
34910-65D01-000 |
from US $119.45 |
||
|
24
|
24
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
24
|
24
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
