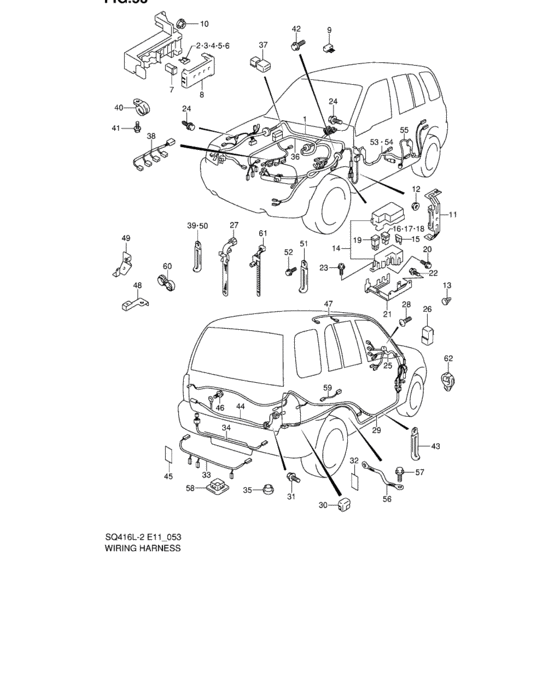

Wiring harness (WIRING HARNESS) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36601-66DN1-000
Harness assy, wiring main
|
36601-66DN1-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.01 |
||
|
3
|
3
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $1.28 |
||
|
4
|
4
09481-20501-000 FUSE(20A) |
09481-20501-000 |
from US $1.04 |
||
|
5
|
5
09481-25501-000 FUSE(25A) |
09481-25501-000 |
from US $1.04 |
||
|
6
|
6
09481-30501-000 FUSE(30A) |
09481-30501-000 |
from US $1.08 |
||
|
7
|
7
09481-30401-000 FUSE(30A) |
09481-30401-000 |
from US $7.20 |
||
|
8
|
8
36717-66D00-000 COVER,FUSE BOX |
36717-66D00-000 |
US $8.13 |
||
|
9
|
9
33459-61B10-000 DIODE |
33459-61B10-000 |
from US $8.37 |
||
|
10
|
10
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
36614-65D00-000 BRACKET,MAIN HARN CONNECTOR |
36614-65D00-000 |
US $4.20 |
||
|
12
|
12
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
09409-07320-000 CAP |
09409-07320-000 |
from US $1.06 |
||
|
14
|
14
36740-65D00-000 BOX ASSY,MAIN FUSE |
36740-65D00-000 |
from US $60.26 |
||
|
15
|
15
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.01 |
||
|
16
|
16
09481-30203-000 FUSE(30A) |
09481-30203-000 |
from US $3.51 |
||
|
17
|
17
09481-50203-000 FUSE(50A) |
09481-50203-000 |
from US $3.24 |
||
|
18
|
18
09481-60202-000 FUSE(60A) |
09481-60202-000 |
from US $5.24 |
||
|
19
|
19
09481-80301-000 FUSE(80A) |
09481-80301-000 |
from US $8.93 |
||
|
20
|
20
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
21
|
21
36737-65D00-000 BRACKET,MAIN FUSE |
36737-65D00-000 |
US $11.85 |
||
|
22
|
22
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
23
|
23
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
24
|
24
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
24
|
24
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
25
|
25
36602-65D50-000
Harness assy, instrument panel
|
36602-65D50-000 |
— | ||
|
26
|
26
38610-52D00-000
RELAY ASSY
|
38610-52D00-000 |
— | ||
| replacement | |||||
|
26
|
26
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
27
|
27
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
from US $1.33 |
||
|
28
|
28
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
28
|
28
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
29
|
29
36630-65DJ0-000
Harness assy, wiring floor
|
36630-65DJ0-000 |
— | ||
|
30
|
30
33459-82000-000 DIODE |
33459-82000-000 |
from US $7.34 |
||
|
31
|
31
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
31
|
31
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
32
|
32
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
33
|
33
36640-65D10-000
Wire, rear lamp
|
36640-65D10-000 |
— | ||
| replacement | |||||
|
33
|
33
36640-65D11-000
HARNESS ASSY,WRG RR LAMP
|
36640-65D11-000 |
— | ||
|
34
|
34
36840-65D00-000 WIRE,FUEL |
36840-65D00-000 |
US $100.46 |
||
|
35
|
35
09250-35003-000 CAP(OD:45)Cap, frame bridge |
09250-35003-000 |
from US $5.41 |
||
|
36
|
36
36605-66D70-000
HARNESS ASSY,WRG ENG
|
36605-66D70-000 |
— | ||
|
37
|
37
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
from US $20.45 |
||
|
38
|
38
36670-66D00-000 HARNESS ASSY,WRG INJECTION |
36670-66D00-000 |
US $75.44 |
||
|
39
|
39
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
39
|
39
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
39
|
39
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
39
|
39
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
40
|
40
36649-50F60-000 CLAMP,HARN |
36649-50F60-000 |
from US $1.98 |
||
|
41
|
41
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
41
|
41
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
42
|
42
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
42
|
42
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
43
|
43
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $1.22 |
||
|
44
|
44
36845-65D00-000
WIRE BACK DOOR
|
36845-65D00-000 |
— | ||
| replacement | |||||
|
44
|
44
36845-65D01-000 WIRE,BACK DR |
36845-65D01-000 |
from US $65.57 |
||
|
45
|
45
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
46
|
46
09139-05028-000 SCREW(5X14) |
09139-05028-000 |
from US $0.79 |
||
|
47
|
47
36820-65D01-000
ワイヤ,ルームランプ
|
36820-65D01-000 |
— | ||
| replacement | |||||
|
47
|
47
36820-65D21-000 WIRE,ROOM LAMP |
36820-65D21-000 |
from US $42.55 |
||
|
48
|
48
36995-66D00-000 BRACKET,INJECTOR HARN |
36995-66D00-000 |
US $6.59 |
||
|
49
|
49
36995-70E20-000 BRACKET,ENG HARN |
36995-70E20-000 |
US $6.07 |
||
|
50
|
50
09404-08207-000
CLAMP(L:80)
|
09404-08207-000 |
— | ||
| replacement | |||||
|
50
|
50
09404-08212-000 Clamp |
09404-08212-000 |
from US $1.22 |
||
|
51
|
51
09404-10417-000 CLAMP(L:97) |
09404-10417-000 |
from US $3.71 |
||
|
52
|
52
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
52
|
52
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $1.12 |
||
|
52
|
52
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
53
|
53
36756-65D41-000
Wire,fr door,dr
|
36756-65D41-000 |
— | ||
|
54
|
54
36757-65D21-000
WIRE,FR DR ASST
|
36757-65D21-000 |
— | ||
|
55
|
55
36751-65D10-000 WIRE,RR DR |
36751-65D10-000 |
US $70.29 |
||
|
56
|
56
39312-77E10-000 WIRE,HORN GND |
39312-77E10-000 |
US $6.92 |
||
|
57
|
57
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
57
|
57
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
58
|
58
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
from US $1.58 |
||
|
59
|
59
36611-65D60-000
Wire,console
|
36611-65D60-000 |
— | ||
|
60
|
60
09408-00182-000 CLAMP |
09408-00182-000 |
US $1.68 |
||
|
61
|
61
36990-52D00-000 CLAMP,MAIN HARN |
36990-52D00-000 |
US $2.87 |
||
|
62
|
62
09403-35301-000 CLAMP |
09403-35301-000 |
US $14 |
||
