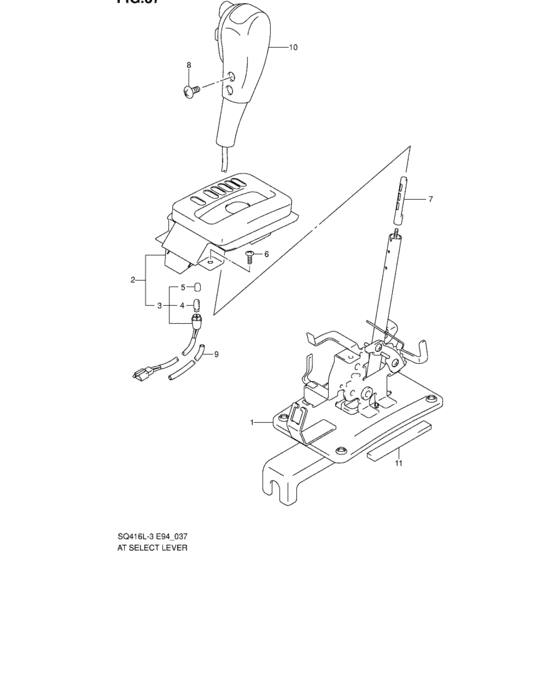

At select lever (AT SELECT LEVER) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-50J32-000
LEVER ASSY,SELECT
|
28110-50J32-000 |
— | ||
|
2
|
2
28150-50J70-000
INDICATOR ASSY,SELECT LEVER
|
28150-50J70-000 |
— | ||
|
3
|
3
28180-50J10-000 LAMP ASSY,SELECT LEVER ILLUM |
28180-50J10-000 |
from US $8.17 |
||
|
4
|
4
28181-65D10-000 BULB,ILLUM LAMP |
28181-65D10-000 |
from US $1.67 |
||
|
5
|
5
28182-50J10-000 FILTER,ILLUM LAMP BULB |
28182-50J10-000 |
US $2.95 |
||
|
6
|
6
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.72 |
||
|
7
|
7
28164-50J10-000 GUIDE,DETENT RELEASE |
28164-50J10-000 |
US $7.13 |
||
|
8
|
8
28177-50J10-000 SCREW,SELECT LEVER KNOB |
28177-50J10-000 |
US $0.88 |
||
|
9
|
9
28118-64B61-000 TUBE,SWITCH WIRE HARNESS |
28118-64B61-000 |
US $1.88 |
||
|
10
|
10
28160-50J70-KN3 KNOB ASSY,SELECT LEVER |
28160-50J70-KN3 |
US $115.92 |
||
|
11
|
11
28176-50J30-000 TAPE,SEAL |
28176-50J30-000 |
from US $1.04 |
||
