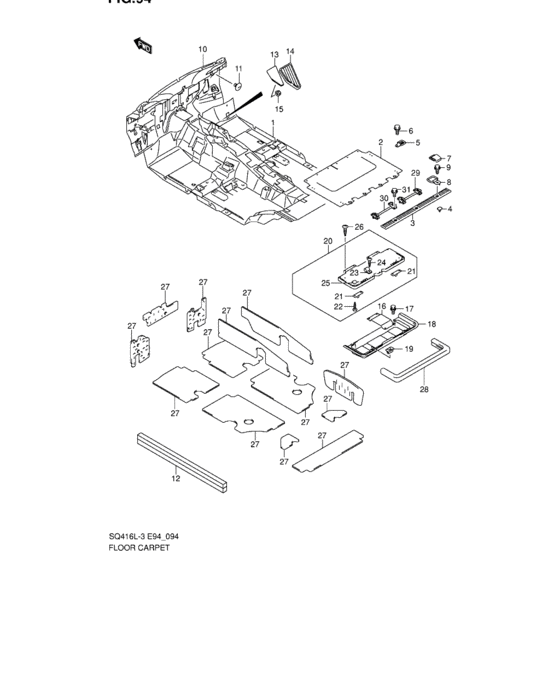

Floor carpet (FLOOR CARPET) Diagram Suzuki VITARA
- Year
- -
- Sales region
- All regions
- grade
- FREE STYLE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75160-65DE1-R9V
Carpet, front floor
|
75160-65DE1-R9V |
— | ||
| replacement | |||||
|
1
|
1
75160-65DA1-R9V
CARPET,FR FL
|
75160-65DA1-R9V |
— | ||
|
2
|
2
75180-65D40-R9V CARPET,RR FL |
75180-65D40-R9V |
US $161.92 |
||
|
3
|
3
75191-65D10-P4Z GARNISH,LUGGAGE MAT END |
75191-65D10-P4Z |
US $42.69 |
||
|
4
|
4
77259-71B00-000 CLIP |
77259-71B00-000 |
from US $2.08 |
||
|
5
|
5
75510-54F00-000
フック,ラゲッジフロア
|
75510-54F00-000 |
— | ||
| replacement | |||||
|
5
|
5
75510-54F01-000 HOOK,LUGGAGE FLOOR |
75510-54F01-000 |
US $10.52 |
||
|
6
|
6
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
7
|
7
75192-65D10-P4Z CAP,TETHER ANCHORAGE |
75192-65D10-P4Z |
from US $2.32 |
||
|
8
|
8
75480-65D30-000 HOOK,TETHER ANCHORAGE |
75480-65D30-000 |
from US $7.61 |
||
|
9
|
9
09103-08242-000 BOLT(8X20) |
09103-08242-000 |
from US $1.51 |
||
|
10
|
10
75210-65D30-000
Silencer comp,dash panel
|
75210-65D30-000 |
— | ||
|
10
|
10
75210-65D31-000
SILENCER,DASH PANEL
JSAFTD02V00200209~ |
75210-65D31-000 |
— | ||
|
11
|
11
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
12
|
12
75221-65D00-000 SILENCER,FRAME UPPER |
75221-65D00-000 |
US $113.71 |
||
|
13
|
13
75810-56B00-000
PEDAL,FOOTREST
|
75810-56B00-000 |
— | ||
|
14
|
14
75821-56B00-000 PAD,FOOTREST PEDAL |
75821-56B00-000 |
US $11 |
||
|
15
|
15
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
75561-65D10-000 MEMBER,RR UNDER BOX |
75561-65D10-000 |
US $26.50 |
||
|
17
|
17
09119-10071-000 Bolt |
09119-10071-000 |
US $21 |
||
|
18
|
18
75571-65D10-P4Z
GARNISH,RR UNDER BOX
|
75571-65D10-P4Z |
— | ||
|
19
|
19
75572-65D10-000 LATCH,RR UNDER BOX,LWR |
75572-65D10-000 |
US $2.83 |
||
|
20
|
20
75540-65D20-5PK
LID,RR UNDER BOX
|
75540-65D20-5PK |
— | ||
|
21
|
21
75542-65D10-000 STRIKER,RR UNDER BOX |
75542-65D10-000 |
US $3.09 |
||
|
22
|
22
03541-04103-000
Screw
|
03541-04103-000 |
— | ||
| replacement | |||||
|
22
|
22
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
23
|
23
75481-85520-000 BAND,SEAT UNDER BOX LID |
75481-85520-000 |
US $3.83 |
||
|
24
|
24
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
24
|
24
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
24
|
24
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.96 |
||
|
25
|
25
76212-50D00-5PK CLIP,FL CARPET |
76212-50D00-5PK |
US $2.65 |
||
|
26
|
26
03141-06303-000
Screw
|
03141-06303-000 |
— | ||
| replacement | |||||
|
26
|
26
03141-0630B-000 SCREW |
03141-0630B-000 |
US $12.90 |
||
|
27
|
27
99611-60A01-000 SHEET,SILENCER 800X1000X3CUT AS REQUIRED |
99611-60A01-000 |
US $62.40 |
||
|
28
|
28
75581-65D10-000 MOLDING,RR UNDER BOX |
75581-65D10-000 |
US $13.25 |
||
|
29
|
29
76610-65D10-000
STRIKER,LOWER ANCHOR,R
|
76610-65D10-000 |
— | ||
|
30
|
30
76620-65D10-000
STRIKER,LOWER ANCHOR,L
|
76620-65D10-000 |
— | ||
|
31
|
31
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
31
|
31
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
