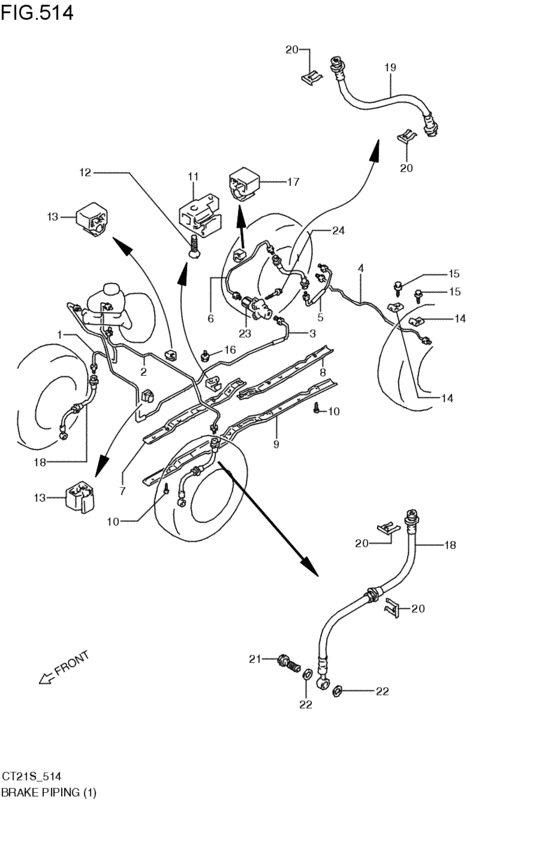

brakes piping (ゴウキワケ; TYPE1; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RA
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51420-74F00-000
Pipe,ma pri to fr bk hose,r
TYPE1:4V:EPI; 1993-08-01~1995-01-01 |
51420-74F00-000 |
— | ||
|
1
|
1
51420-74F10-000
パイプ,マスタプライマリツーフロントホース,ライト
TYPE1:4V:EPI; 1995-01-01~1995-01-01 |
51420-74F10-000 |
— | ||
|
2
|
2
51430-74F00-000
パイプ,マスタプライマリツーフロントホース,レフト
TYPE1:4V:EPI; 1993-08-01~1995-01-01 |
51430-74F00-000 |
— | ||
|
2
|
2
51430-74F10-000
パイプ,マスタプライマリツーフロントホース,レフト
TYPE1:4V:EPI; 1995-01-01~1995-01-01 |
51430-74F10-000 |
— | ||
|
3
|
3
51460-74F00-000
パイプ,マスタセカンダリツーバルブ
TYPE1:4V:EPI; 1993-08-01~1994-10-01 |
51460-74F00-000 |
— | ||
|
3
|
3
51460-74F01-000
パイプ,マスタセカンダリツーバルブ
TYPE1:4V:EPI; 1994-10-01~1995-01-01 |
51460-74F01-000 |
— | ||
|
3
|
3
51460-74F11-000
パイプ,マスタセカンダリツーバルブ
TYPE1:4V:EPI; 1995-01-01~1995-01-01 |
51460-74F11-000 |
— | ||
|
4
|
4
51480-70B00-000 PIPE,RR W/C R TO RR W/C LTYPE1:2WD; 1993-08-01~1995-09-01 |
51480-70B00-000 |
US $19.32 |
||
|
5
|
5
51490-50A00-000 PIPE,BRAKE NO.9TYPE1:2WD; 1993-08-01~1995-09-01 |
51490-50A00-000 |
US $15.79 |
||
|
6
|
6
51520-70B00-000 PIPE,VALVE TO RR BK HOSE RTYPE1; 1993-08-01~1995-01-01 |
51520-70B00-000 |
US $14.28 |
||
|
6
|
6
51900-50810-000
バルブセット,プロポーショニング
TYPE1; 1995-01-01~1995-01-01 |
51900-50810-000 |
— | ||
|
6
|
6
51900-50820-000
バルブセット,プロポーショニング
TYPE1; 1995-01-01~1995-02-01 |
51900-50820-000 |
— | ||
|
7
|
7
51711-70B00-000
Cover,brake pipe,front
TYPE1; 1993-08-01~1994-10-01 |
51711-70B00-000 |
— | ||
|
8
|
8
51721-70B00-000
COVER,BRAKE PIPE,RR
TYPE1; 1993-08-01~1994-10-01 |
51721-70B00-000 |
— | ||
|
9
|
9
51711-70BA0-000
COVER,BRAKE PIPE
TYPE1; 1994-10-01~1995-09-01 |
51711-70BA0-000 |
— | ||
|
10
|
10
03541-05103-000
Screw5 x 10
TYPE1; 1993-08-01~1994-10-01 |
03541-05103-000 |
— | ||
| replacements | |||||
|
10
|
10
03541-0510B-000 SCREWTYPE1; 1993-08-01~1994-10-01 |
03541-0510B-000 |
from US $0.80 |
||
|
10
|
10
03541-0510A-000 SCREWScrew, rr cover TYPE1; 1993-08-01~1994-10-01 |
03541-0510A-000 |
from US $0.68 |
||
|
11
|
11
51751-70B00-000 CLAMP,BK PIPE UNDER FLTYPE1; 1993-08-01~1994-10-01 |
51751-70B00-000 |
US $2.83 |
||
|
12
|
12
02122-06203-000
Screw
TYPE1; 1993-08-01~1994-10-01 |
02122-06203-000 |
— | ||
| replacements | |||||
|
12
|
12
02122-0620B-000 SCREWTYPE1; 1993-08-01~1994-10-01 |
02122-0620B-000 |
from US $3.04 |
||
|
12
|
12
02122-0620A-000 SCREWTYPE1; 1993-08-01~1994-10-01 |
02122-0620A-000 |
from US $0.80 |
||
|
13
|
13
51752-70B00-000 CLAMP,BK PIPETYPE1; 1993-08-01~1995-09-01 |
51752-70B00-000 |
US $1.60 |
||
|
14
|
14
09403-06409-000
Clamp
TYPE1; 1993-08-01~1995-09-01 |
09403-06409-000 |
— | ||
|
15
|
15
09132-06006-000 SCREW(6X12)TYPE1; 1993-08-01~1995-09-01 |
09132-06006-000 |
from US $0.88 |
||
|
16
|
16
01550-06103-000
Bolt, front
TYPE1; 1993-08-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610B-000 BoltBolt TYPE1; 1993-08-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
16
|
16
01550-0610A-000 BoltTYPE1; 1993-08-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
17
|
17
51771-60B00-000 CLAMP,BRAKE PIPETYPE1; 1993-08-01~1995-09-01 |
51771-60B00-000 |
US $1.60 |
||
|
18
|
18
51550-70B00-000 HOSE,FR DISC FLEXIBLETYPE1; 1993-08-01~1995-09-01 |
51550-70B00-000 |
US $48.21 |
||
|
19
|
19
51570-50A50-000 HOSE,RR BRAKE FLEXIBLETYPE1; 1993-08-01~1995-09-01 |
51570-50A50-000 |
from US $18.40 |
||
|
20
|
20
09383-13001-000 E RINGTYPE1; 1993-08-01~1995-09-01 |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
20
|
20
09383-13003-000 E-RINGTYPE1; 1993-08-01~1995-09-01 |
09383-13003-000 |
from US $1.46 |
||
|
21
|
21
09360-10026-000 Union boltTYPE1; 1993-08-01~1995-09-01 |
09360-10026-000 |
from US $2.08 |
||
|
22
|
22
09161-10009-000 WASHER(10X15X1.5)Lock washer TYPE1; 1993-08-01~1995-09-01 |
09161-10009-000 |
from US $1.06 |
||
|
23
|
23
51900-50810-000
バルブセット,プロポーショニング
TYPE1; 1995-01-01~1995-01-01 |
51900-50810-000 |
— | ||
|
23
|
23
51900-50820-000
バルブセット,プロポーショニング
TYPE1; 1995-01-01~1995-02-01 |
51900-50820-000 |
— | ||
|
23
|
23
51910-50A12-000
VALVE ASSY,PROPORTIONING
TYPE1; 1993-08-01~1995-01-01 |
51910-50A12-000 |
— | ||
|
24
|
24
01550-06353-000
Bolt
TYPE1; 1993-08-01~1995-09-01 |
01550-06353-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0635B-000 BoltTYPE1; 1993-08-01~1995-09-01 |
01550-0635B-000 |
from US $0.91 |
||
|
24
|
24
01550-0635A-000 BoltTYPE1; 1993-08-01~1995-09-01 |
01550-0635A-000 |
from US $0.96 |
||
