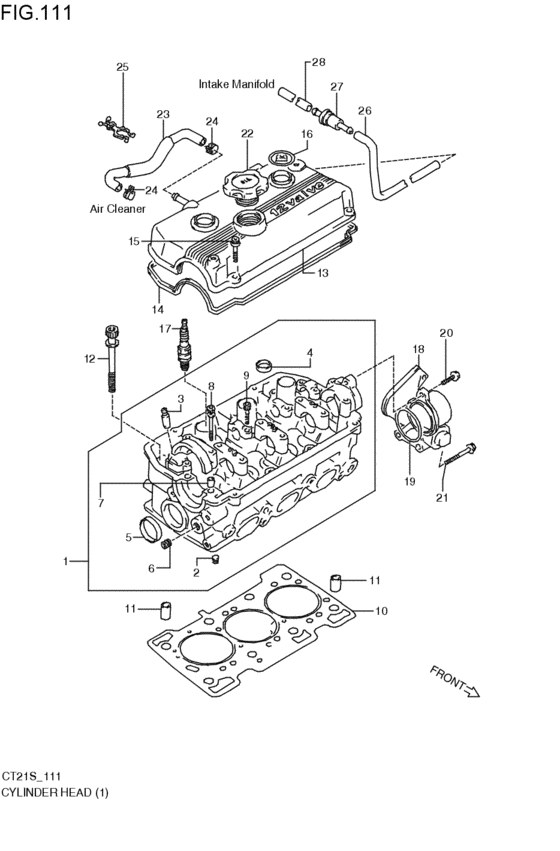

Cylinder head (TYPE1:4V:EPI; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RA
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-61D11-000
ヘッドアッシ,シリンダ
TYPE1:4V:EPI; 1993-08-01~1994-10-01 |
11100-61D11-000 |
— | ||
| replacements | |||||
|
1
|
1
11100-61D13-000
HEAD ASSY,CYLINDER
TYPE1:4V:EPI; 1993-08-01~1994-10-01 |
11100-61D13-000 |
— | ||
|
1
|
1
12861-71G00-000
SHAFT,ROCKER ARM NO.1
TYPE1:4V:EPI; 1993-08-01~1994-10-01 |
12861-71G00-000 |
— | ||
|
1
|
1
12862-71G00-000 SHAFT,ROCKER ARM NO.2TYPE1:4V:EPI; 1993-08-01~1994-10-01 |
12862-71G00-000 |
US $14.79 |
||
|
1
|
1
11100-61D12-000
ヘッドアッシ,シリンダ
TYPE1:4V:EPI; 1994-10-01~1995-09-01 |
11100-61D12-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-61D13-000
HEAD ASSY,CYLINDER
TYPE1:4V:EPI; 1994-10-01~1995-09-01 |
11100-61D13-000 |
— | ||
|
2
|
2
11112-53A00-000 PLUG,OIL VENTURITYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11112-53A00-000 |
from US $2.24 |
||
|
3
|
3
11115-81400-001 GUIDE,VALVETYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11115-81400-001 |
US $21.34 |
||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09241-20006-000 |
from US $1.60 |
||
|
5
|
5
09241-30009-000
Plug
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09241-30009-000 |
— | ||
| replacement | |||||
|
5
|
5
09241-30010-000 PLUGTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09241-30010-000 |
from US $2.23 |
||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5)TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09246-05006-000 |
from US $1.76 |
||
|
7
|
7
09206-08001-000 PIN(8X11)TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09206-08001-000 |
from US $1.53 |
||
|
8
|
8
07130-06403-000
Bolt
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
07130-06403-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-0640B-000 BoltBolt, camshaft housing TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
07130-0640B-000 |
from US $1.12 |
||
|
9
|
9
09103-06185-000 BOLT(6X20)Bolt (6x20) TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09103-06185-000 |
from US $1.28 |
||
|
10
|
10
11141-81401-000 GASKET,CYL HEADTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11141-81401-000 |
from US $66.42 |
||
|
11
|
11
04211-13189-000 PINTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
04211-13189-000 |
from US $1.22 |
||
|
12
|
12
11117-52E10-000 BOLT,CYLINDER HEADTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11117-52E10-000 |
from US $2.75 |
||
|
13
|
13
11170-61D13-000
カバー,シリンダヘッド
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11170-61D13-000 |
— | ||
| replacement | |||||
|
13
|
13
11170-61D14-000
Cover,cylinder head
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11170-61D14-000 |
— | ||
|
14
|
14
11189-81401-000
ガスケット,シリンダヘッドカバー
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11189-81401-000 |
— | ||
| replacement | |||||
|
14
|
14
11189-81402-000 GASKET,CYL HEAD COVERTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11189-81402-000 |
US $81.60 |
||
|
15
|
15
01550-06253-000
Bolt (6x25)
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0625B-000 BoltBolt, head cover TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
15
|
15
01550-0625A-000 BoltBolt TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
16
|
16
11179-81402-000 O-RINGTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11179-81402-000 |
from US $1.82 |
||
|
17
|
17
09482-00368-000
スパークプラグ,XU22EPーU
DENSO; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09482-00368-000 |
— | ||
| replacement | |||||
|
17
|
17
09482-00449-000 PLUG,SPARK(XU22EPR-U)DENSO; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09482-00449-000 |
US $11.41 |
||
|
17
|
17
09482-00369-000
PLUG,SPARK(DCP7E)
NGK; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09482-00369-000 |
— | ||
|
18
|
18
11161-81400-000
ケース,ディストリビュータ
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11161-81400-000 |
— | ||
| replacement | |||||
|
18
|
18
11161-81401-000 CASE,DISTRIBUTORTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11161-81401-000 |
US $1,031.36 |
||
|
19
|
19
11162-81400-000
O-ring
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11162-81400-000 |
— | ||
| replacement | |||||
|
19
|
19
11162-81401-000 O-RING,CASETYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11162-81401-000 |
US $2.56 |
||
|
20
|
20
01550-06203-000
Bolt
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0620B-000 BoltBolt, inspection cap TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
21
|
21
01550-06453-000
Bolt
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0645A-000 BoltTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0645A-000 |
from US $0.96 |
||
|
22
|
22
16920-86502-000
Cap, oil filler
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
16920-86502-000 |
— | ||
| replacements | |||||
|
22
|
22
16920-83G00-000
Cap,oil filler
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
16920-83G00-000 |
— | ||
|
22
|
22
16920-83G01-000 CAP OIL FILLERTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
16920-83G01-000 |
US $10.22 |
||
|
23
|
23
11191-51E50-000
ホース,ブリーザ
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11191-51E50-000 |
— | ||
|
24
|
24
09401-20402-000
Clip, air hose no.3
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
24
|
24
09401-20406-000 CLIPTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09401-20406-000 |
US $1.98 |
||
|
25
|
25
09408-00037-000
Clamp
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09408-00037-000 |
— | ||
|
26
|
26
11192-51E01-000
ホース,PCV,インレット
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
11192-51E01-000 |
— | ||
|
27
|
27
18118-72B01-000 VALVE,PCVTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
18118-72B01-000 |
US $81.60 |
||
|
28
|
28
09354-70133-600 Hose (7x13x600)L:600>60; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09354-70133-600 |
US $14.63 |
||
| replacements | |||||
|
28
|
28
44421-12FR0-000 HOSEL:600>60; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
28
|
28
09401-11415-000 CLIPL:600>60; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09401-11415-000 |
from US $1.06 |
||
|
28
|
28
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>60; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09355-70125-600 |
from US $6.54 |
||
|
28
|
28
09401-11407-000
CLIP
L:600>60; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09401-11407-000 |
— | ||
