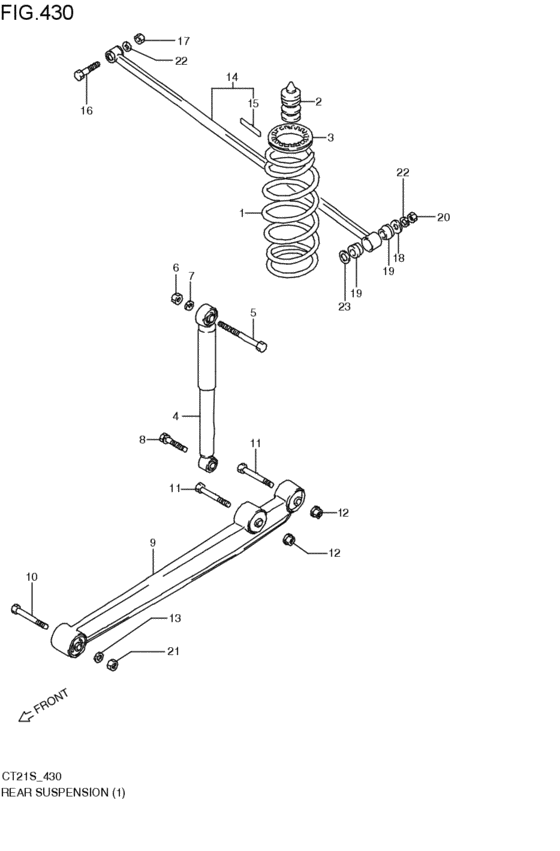

rear suspension (ゴウキワケ; TYPE1; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RA
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-74F02-000
スプリング,リヤコイル
TYPE1:2WD:RA; 1993-08-01~1994-08-01 |
41311-74F02-000 |
— | ||
| replacement | |||||
|
1
|
1
41311-76FB1-000
スプリング,リヤコイル
TYPE1:2WD:RA; 1993-08-01~1994-08-01 |
41311-76FB1-000 |
— | ||
|
1
|
1
41311-74F11-000
スプリング,リヤコイル
TYPE1:2WD:RA; 1994-08-01~1995-09-01 |
41311-74F11-000 |
— | ||
| replacement | |||||
|
1
|
1
41311-76FB1-000
スプリング,リヤコイル
TYPE1:2WD:RA; 1994-08-01~1995-09-01 |
41311-76FB1-000 |
— | ||
|
2
|
2
42251-50A00-000 STOPPER,RR BUMPTYPE1; 1993-08-01~1995-09-01 |
42251-50A00-000 |
US $28.80 |
||
|
3
|
3
41341-50A00-000 SEAT,REAR SPRING UPPERTYPE1; 1993-08-01~1995-09-01 |
41341-50A00-000 |
from US $11.19 |
||
|
4
|
4
41800-74F00-000
アブソーバアッシ,リヤショック
TYPE1; 1993-08-01~1994-01-01 |
41800-74F00-000 |
— | ||
| replacement | |||||
|
4
|
4
41800-74F03-000 ABSORBER ASSY,RR SHOCKTYPE1; 1993-08-01~1994-01-01 |
41800-74F03-000 |
US $103.04 |
||
|
4
|
4
41800-74F01-000
アブソーバアッシ,リヤショック
TYPE1; 1994-01-01~1995-09-01 |
41800-74F01-000 |
— | ||
| replacement | |||||
|
4
|
4
41800-74F03-000 ABSORBER ASSY,RR SHOCKTYPE1; 1994-01-01~1995-09-01 |
41800-74F03-000 |
US $103.04 |
||
|
5
|
5
41981-60D00-000 BOLT,RR SHK ABSORBER UPRTYPE1; 1993-08-01~1995-09-01 |
41981-60D00-000 |
US $8 |
||
|
6
|
6
08310-00123-000
Nut
TYPE1; 1993-08-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
6
|
6
08310-0012A-000 NUTTYPE1; 1993-08-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
7
|
7
08321-01123-000
Washer
TYPE1; 1993-08-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0112A-000 WASHER,LOCKTYPE1; 1993-08-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
8
|
8
09117-12004-000
ボルト,12X57
TYPE1; 1993-08-01~1995-09-01 |
09117-12004-000 |
— | ||
| replacement | |||||
|
8
|
8
09117-12014-000 BOLT(12X57)TYPE1; 1993-08-01~1995-09-01 |
09117-12014-000 |
US $37.20 |
||
|
9
|
9
46200-52E00-000 ARM ASSY,RR TRAILINGTYPE1; 1993-08-01~1995-09-01 |
46200-52E00-000 |
US $166.70 |
||
|
10
|
10
09103-12044-000 BOLT(12X87)TYPE1; 1993-08-01~1995-09-01 |
09103-12044-000 |
from US $3.02 |
||
|
11
|
11
09103-12044-000 BOLT(12X87)TYPE1; 1993-08-01~1995-09-01 |
09103-12044-000 |
from US $3.02 |
||
|
12
|
12
09159-12025-000 NUTTYPE1; 1993-08-01~1995-09-01 |
09159-12025-000 |
from US $0.77 |
||
|
13
|
13
08321-01123-000
Washer
TYPE1; 1993-08-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0112A-000 WASHER,LOCKTYPE1; 1993-08-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
14
|
14
46300-60D11-000
ロッドアッシ,ラテラル
TYPE1:2WD; 1993-08-01~1993-09-01 |
46300-60D11-000 |
— | ||
| replacement | |||||
|
14
|
14
46300-60DV0-000 ROD ASSY,LATERALTYPE1:2WD; 1993-08-01~1993-09-01 |
46300-60DV0-000 |
US $83.54 |
||
|
14
|
14
46300-73G00-000
ロッドアッシ,ラテラル
TYPE1:2WD; 1993-09-01~1995-09-01 |
46300-73G00-000 |
— | ||
| replacement | |||||
|
14
|
14
46300-73GV0-000
ROD ASSY,LATERAL
TYPE1:2WD; 1993-09-01~1995-09-01 |
46300-73GV0-000 |
— | ||
|
15
|
15
46325-60D00-000
PLACARD,LATERAL ROD
TYPE1; 1993-08-01~1995-09-01 |
46325-60D00-000 |
— | ||
|
16
|
16
09103-12501-000 BOLT(12X55)TYPE1; 1993-08-01~1995-09-01 |
09103-12501-000 |
from US $2.56 |
||
|
17
|
17
08310-00123-000
Nut
TYPE1; 1993-08-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
17
|
17
08310-0012A-000 NUTTYPE1; 1993-08-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
18
|
18
09160-12078-000
ワッシャ,12.5X35X2.3
TYPE1:2WD; 1993-08-01~1993-09-01 |
09160-12078-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-12096-000 WASHER(12.5X36X2.3)TYPE1:2WD; 1993-08-01~1993-09-01 |
09160-12096-000 |
US $16.20 |
||
|
18
|
18
09164-12017-000 WASHERTYPE1:2WD; 1993-09-01~1995-09-01 |
09164-12017-000 |
from US $1.44 |
||
|
19
|
19
09305-16005-000 BUSHTYPE1:2WD; 1993-08-01~1993-09-01 |
09305-16005-000 |
US $38.60 |
||
|
20
|
20
08310-00123-000
Nut
TYPE1; 1993-08-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
20
|
20
08310-0012A-000 NUTTYPE1; 1993-08-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
21
|
21
08310-00123-000
Nut
TYPE1; 1993-08-01~1995-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-0012A-000 NUTTYPE1; 1993-08-01~1995-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
22
|
22
08321-01123-000
Washer
TYPE1; 1993-08-01~1995-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCKTYPE1; 1993-08-01~1995-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
09160-17045-000 WASHER(17X35X2.6)TYPE1:2WD; 1993-08-01~1993-09-01 |
09160-17045-000 |
US $13.20 |
||
