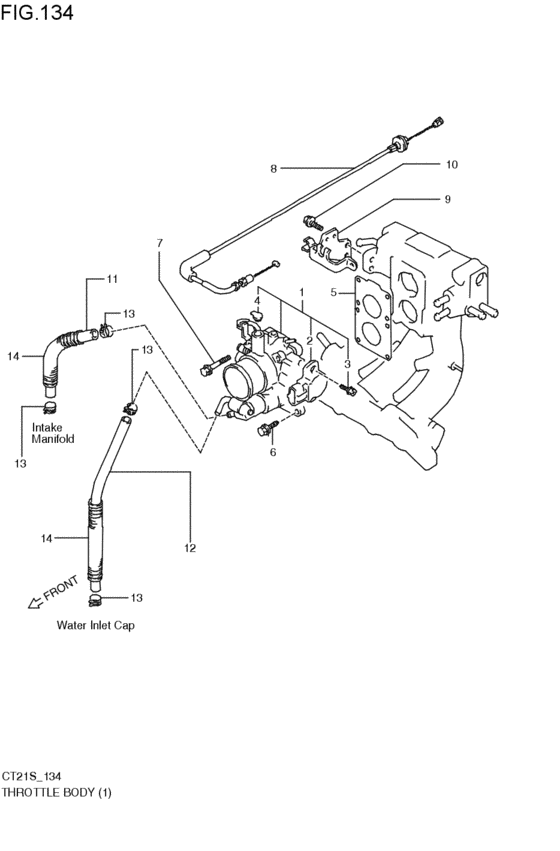

throttle body (TYPE1:4V:EPI; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RA
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-51E52-000
ボディアッシ,スロットル
TYPE1:4V:EPI:5MT; 1993-08-01~1995-09-01 |
13400-51E52-000 |
— | ||
|
2
|
2
13420-72G00-000 SENSOR,THROTTLE POSITIONTYPE1:4V:EPI:5MT; 1993-08-01~1995-09-01 |
13420-72G00-000 |
US $279.68 |
||
|
3
|
3
13428-58B00-000 BOLT,THROTTLE SENSORTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
13428-58B00-000 |
US $1.60 |
||
|
4
|
4
13416-58B00-000
CAP
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
13416-58B00-000 |
— | ||
|
5
|
5
13421-64D03-000 GASKET,THROTTLE BODYTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
13421-64D03-000 |
US $2.40 |
||
|
6
|
6
01550-06203-000
Bolt
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0620B-000 BoltBolt, inspection cap TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
7
|
7
01550-06453-000
Bolt
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0645A-000 BoltTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0645A-000 |
from US $0.96 |
||
|
8
|
8
15910-51E51-000
ケーブルアッシ,アクセル
TYPE1:4V:EPI:2WD; 1993-08-01~1995-09-01 |
15910-51E51-000 |
— | ||
| replacement | |||||
|
8
|
8
15910-70G02-000 CABLE ASSY,ACCELTYPE1:4V:EPI:2WD; 1993-08-01~1995-09-01 |
15910-70G02-000 |
US $43.42 |
||
|
9
|
9
15919-63F01-000
ガイド,アクセルケーブル
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
15919-63F01-000 |
— | ||
|
10
|
10
01550-06163-000
Bolt
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0616B-000 BoltTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
10
|
10
01550-0616A-000 BoltTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
11
|
11
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>175; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
12
|
12
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>250; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
13
|
13
09401-11407-000
CLIP
TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
13
|
13
09401-11415-000 CLIPTYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper L:600>120; TYPE1:4V:EPI; 1993-08-01~1995-09-01 |
09352-13162-600 |
from US $11.40 |
||
