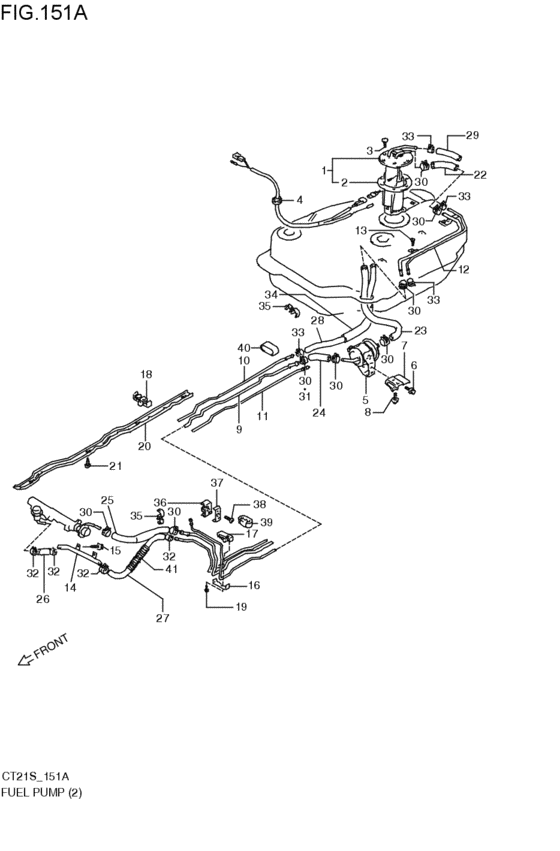

Fuel Pump (ゴウキワケ; (TYPE2,TYPE3):4V:EPI; 1995-10-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RA
- type
- TYPE3
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-51E10-000 PUMP ASSY,FUELMITSUBISHI; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15100-51E10-000 |
US $598.40 |
||
|
1
|
1
15100-72G00-000 PUMP ASSY,FUELDENSO; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15100-72G00-000 |
US $732.16 |
||
|
2
|
2
15111-56F00-000 GASKET,FUEL PUMPDENSO; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15111-56F00-000 |
from US $16.79 |
||
|
2
|
2
15111-57F00-000 GASKET,FUEL PUMPMITSUBISHI; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15111-57F00-000 |
US $23 |
||
|
3
|
3
09136-05045-000 SCREW(5X10)(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15109-70G00-000
HARNESS,WIRING
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15109-70G00-000 |
— | ||
|
5
|
5
15410-72F01-000 FILTER,FUEL(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15410-72F01-000 |
US $44.16 |
||
|
6
|
6
01550-08123-000
Bolt
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0812B-000 BoltPlug, drain (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
6
|
6
01550-0812A-000 Bolt(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
7
|
7
15421-72B50-000
ブラケット,フューエルフィルタ
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15421-72B50-000 |
— | ||
|
8
|
8
01550-08123-000
Bolt
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 Bolt(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
15811-70G00-000
PIPE,FUEL
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15811-70G00-000 |
— | ||
|
10
|
10
15861-70G00-000
PIPE,FUEL RTN
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15861-70G00-000 |
— | ||
|
11
|
11
89483-70G00-000
パイプ,フューエルエバポ
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
89483-70G00-000 |
— | ||
| replacement | |||||
|
11
|
11
89483-70GV0-000
PIPE,FUEL EVAP
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
89483-70GV0-000 |
— | ||
|
12
|
12
15820-51E50-000
PIPE,TANK SIDE
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15820-51E50-000 |
— | ||
|
13
|
13
15825-72F10-000 SCREW,TANK SIDE PIPE(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15825-72F10-000 |
US $3.28 |
||
|
14
|
14
15820-72G10-000
パイプ,フューエル
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15820-72G10-000 |
— | ||
| replacement | |||||
|
14
|
14
15820-72G11-000
PIPE,FUEL
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15820-72G11-000 |
— | ||
|
15
|
15
02162-06103-000
Bolt
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
15
|
15
02162-0610A-000 SCREW(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
16
|
16
15829-72B60-000 STAY,FUEL PIPE(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15829-72B60-000 |
US $3.13 |
||
|
17
|
17
15819-72B60-000 CLAMP,FUEL PIPE(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15819-72B60-000 |
US $2.50 |
||
|
18
|
18
15818-72B60-000 CLAMP,FUEL PIPE(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15818-72B60-000 |
US $2.21 |
||
|
19
|
19
02122-06203-000
Screw
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
02122-06203-000 |
— | ||
| replacements | |||||
|
19
|
19
02122-0620B-000 SCREW(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
02122-0620B-000 |
from US $3.04 |
||
|
19
|
19
02122-0620A-000 SCREW(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
02122-0620A-000 |
from US $0.80 |
||
|
20
|
20
15871-70G01-000
COVER,FUEL PIPE
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15871-70G01-000 |
— | ||
|
21
|
21
03541-05103-000
Screw5 x 10
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
03541-05103-000 |
— | ||
| replacements | |||||
|
21
|
21
03541-0510B-000 SCREW(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
03541-0510B-000 |
from US $0.80 |
||
|
21
|
21
03541-0510A-000 SCREWScrew, rr cover (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
03541-0510A-000 |
from US $0.68 |
||
|
22
|
22
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>120; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-75137-600 |
from US $115.33 |
||
|
23
|
23
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>105; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-75137-600 |
from US $115.33 |
||
|
24
|
24
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>125; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-75137-600 |
from US $115.33 |
||
|
25
|
25
09356-75137-600 HOSE(7.5X13.5X600)Hose (separator to filter) L:600>240; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-75137-600 |
from US $115.33 |
||
|
26
|
26
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>75; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-58127-600 |
from US $13.64 |
||
|
27
|
27
09356-55113-600
ホース,5.5X11.5X600
L:600>250; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-55113-600 |
— | ||
| replacement | |||||
|
27
|
27
09356-55118-600 HOSEL:600>250; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-55118-600 |
US $79.49 |
||
|
28
|
28
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>330; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-58127-600 |
from US $13.64 |
||
|
29
|
29
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>110; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09356-58127-600 |
from US $13.64 |
||
|
30
|
30
09401-12404-000 CLIPClip (TYPE2,TYPE3):4V:EPI; 1995-10-01~1996-05-01 |
09401-12404-000 |
from US $1.10 |
||
|
31
|
31
09401-13418-000 CLIP(TYPE2,TYPE3):4V:EPI; 1996-04-01~ |
09401-13418-000 |
US $27.20 |
||
|
32
|
32
09401-10409-000 CLIP(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09401-10409-000 |
from US $1.28 |
||
|
33
|
33
09401-11407-000
CLIP
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09401-11407-000 |
— | ||
| replacement | |||||
|
33
|
33
09401-11415-000 CLIP(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09401-11415-000 |
from US $1.06 |
||
|
34
|
34
09320-13016-000 CUSHIONL:280>110; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09320-13016-000 |
US $52.30 |
||
|
35
|
35
09408-00121-000 CLAMP(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09408-00121-000 |
US $1.52 |
||
|
36
|
36
15817-72B60-000 CLAMP,FUEL PIPE DASH(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15817-72B60-000 |
US $1.91 |
||
|
37
|
37
15827-72B60-000 STAY,FUEL PIPE CLAMP(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15827-72B60-000 |
US $2.21 |
||
|
38
|
38
09139-06098-000
スクリュ,6X25
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
09139-06098-000 |
— | ||
| replacement | |||||
|
38
|
38
02142-0625A-000 SCREW(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
02142-0625A-000 |
from US $0.77 |
||
|
39
|
39
15438-72B60-000
クッション,フューエルパイプ
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15438-72B60-000 |
— | ||
| replacement | |||||
|
39
|
39
15438-75F00-000 CUSHION,FUEL PIPE(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15438-75F00-000 |
US $4.20 |
||
|
40
|
40
15439-72B60-000
クッション,フューエルパイプ
(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15439-72B60-000 |
— | ||
| replacement | |||||
|
40
|
40
15439-75F00-000 CUSHION,FUEL PIPE(TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
15439-75F00-000 |
US $5.48 |
||
|
41
|
41
17858-86501-000 PROTECTOR,HOSEL:415>90; (TYPE2,TYPE3):4V:EPI; 1995-10-01~ |
17858-86501-000 |
US $11.68 |
||
