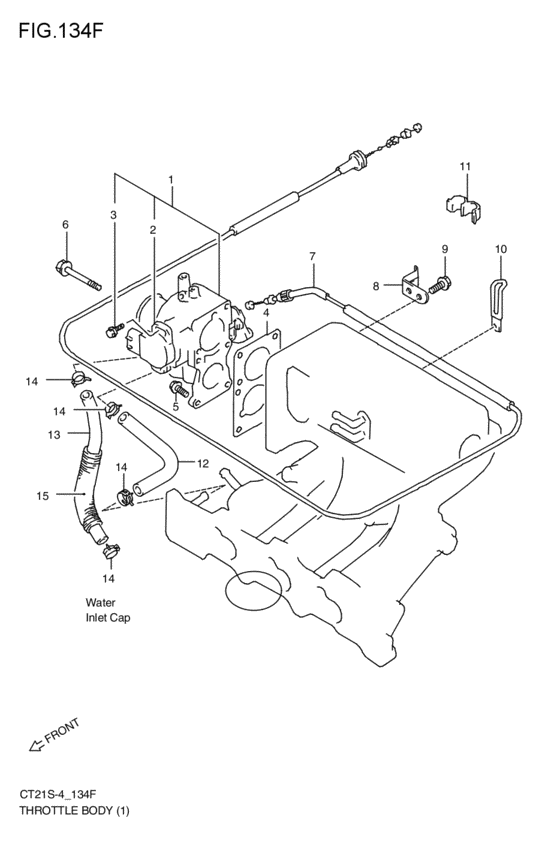

throttle body (F6A:4V; 1997-04-01~1998-10-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1997
- Sales region
- Japan
- Engine
- F6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RC
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-72G20-000 BODY ASSY,THROTTLEF6A:4V:MT; 1997-04-01~1998-10-01 |
13400-72G20-000 |
US $591.36 |
||
|
2
|
2
13420-72G00-000 SENSOR,THROTTLE POSITIONF6A:4V:MT; 1997-04-01~1998-10-01 |
13420-72G00-000 |
US $279.68 |
||
|
3
|
3
13428-58B00-000 BOLT,THROTTLE SENSORF6A:4V; 1997-04-01~1998-10-01 |
13428-58B00-000 |
US $1.60 |
||
|
4
|
4
13421-64D03-000 GASKET,THROTTLE BODYF6A:4V; 1997-04-01~1998-10-01 |
13421-64D03-000 |
US $2.40 |
||
|
5
|
5
01550-06203-000
Bolt
F6A:4V; 1997-04-01~1998-10-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0620B-000 BoltBolt, inspection cap F6A:4V; 1997-04-01~1998-10-01 |
01550-0620B-000 |
from US $0.76 |
||
|
6
|
6
01550-06453-000
Bolt
F6A:4V; 1997-04-01~1998-10-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0645A-000 BoltF6A:4V; 1997-04-01~1998-10-01 |
01550-0645A-000 |
from US $0.96 |
||
|
7
|
7
15910-72G20-000
CABLE ASSY,ACCEL
F6A:4V:2WD; 1997-04-01~1998-10-01 |
15910-72G20-000 |
— | ||
|
8
|
8
15919-73B51-000
GUIDE,ACCEL CABLE
F6A:4V; 1997-04-01~1998-10-01 |
15919-73B51-000 |
— | ||
|
9
|
9
01550-06163-000
Bolt
F6A:4V; 1997-04-01~1998-10-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0616B-000 BoltF6A:4V; 1997-04-01~1998-10-01 |
01550-0616B-000 |
from US $0.76 |
||
|
9
|
9
01550-0616A-000 BoltF6A:4V; 1997-04-01~1998-10-01 |
01550-0616A-000 |
from US $0.76 |
||
|
10
|
10
09404-06432-000
CLAMP(L:65)
F6A:4V; 1997-04-01~1998-10-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
10
|
10
09404-06039-000 Clamp(L:65)F6A:4V; 1997-04-01~1998-10-01 |
09404-06039-000 |
from US $1.82 |
||
|
11
|
11
09408-00033-000 CLAMPClamp F6A:4V:2WD; 1997-04-01~1998-10-01 |
09408-00033-000 |
from US $1.60 |
||
|
12
|
12
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>160; F6A:4V; 1997-04-01~1998-02-01 |
09352-70121-600 |
from US $5.93 |
||
|
12
|
12
09356-75141-600 HOSE(7.5X14.5X600)L:600>160; F6A:4V; 1998-02-01~1998-10-01 |
09356-75141-600 |
from US $7.67 |
||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>250; F6A:4V; 1997-04-01~1998-02-01 |
09352-70121-600 |
from US $5.93 |
||
|
13
|
13
09356-75141-600 HOSE(7.5X14.5X600)L:600>250; F6A:4V; 1998-02-01~1998-10-01 |
09356-75141-600 |
from US $7.67 |
||
|
14
|
14
09401-11415-000 CLIPF6A:4V; 1997-04-01~1998-02-01 |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09401-12410-000 CLIPClip, filter outlet F6A:4V; 1998-02-01~1998-10-01 |
09401-12410-000 |
from US $1.49 |
||
|
15
|
15
17976-70G50-000
プロテクタ,ホース,L:120
F6A:4V; 1998-02-01~1998-10-01 |
17976-70G50-000 |
— | ||
|
15
|
15
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper L:600>120; F6A:4V; 1997-04-01~1998-02-01 |
09352-13162-600 |
from US $11.40 |
||
