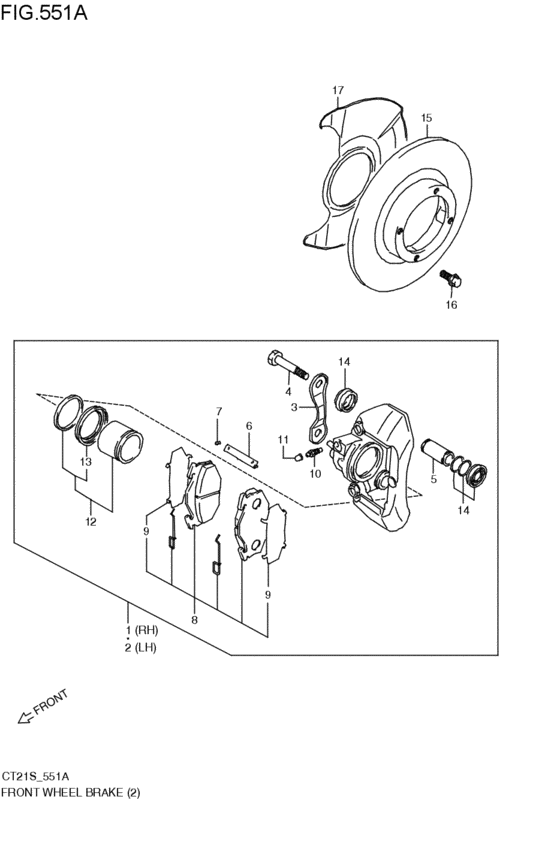

front wheel brakes (2バルブ:ターボ(ゴウキワケ); TYPE1:2V:TURBO; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RTS
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-61F02-000
キャリパアッシ,フロントブレーキ,ライト
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55101-61F02-000 |
— | ||
| replacements | |||||
|
1
|
1
55101-61F05-999
キャリパアッシ,フロントブレーキ,ライト
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55101-61F05-999 |
— | ||
|
1
|
1
55810-61F03-000
PAD SET,DISC BRAKE
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55810-61F03-000 |
— | ||
|
2
|
2
55102-61F02-000
キャリパアッシ,フロントブレーキ,レフト
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55102-61F02-000 |
— | ||
| replacements | |||||
|
2
|
2
55102-61F05-999
キャリパアッシ,フロントブレーキ,レフト
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55102-61F05-999 |
— | ||
|
2
|
2
55810-61F03-000
PAD SET,DISC BRAKE
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55810-61F03-000 |
— | ||
|
3
|
3
55191-60F10-000
プレート,アンチローテーション
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55191-60F10-000 |
— | ||
| replacement | |||||
|
3
|
3
55860-61F00-000
ボルト/プレートセット
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55860-61F00-000 |
— | ||
|
4
|
4
55161-60F10-000
ボルト,ディスクブレーキ
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55161-60F10-000 |
— | ||
|
5
|
5
55131-60F10-000
スリーブ,ディスクブレーキ
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55131-60F10-000 |
— | ||
|
6
|
6
55181-81400-000
キー,フレーム
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55181-81400-000 |
— | ||
|
7
|
7
55182-81400-000 SPRING,KEYTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55182-81400-000 |
US $6.22 |
||
|
8
|
8
55810-61F01-000
パッドセット,ディスクブレーキ
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55810-61F01-000 |
— | ||
| replacement | |||||
|
8
|
8
55810-61F03-000
PAD SET,DISC BRAKE
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55810-61F03-000 |
— | ||
|
9
|
9
55226-60F10-000
シム,アンチノイズ
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55226-60F10-000 |
— | ||
|
10
|
10
55151-60D10-000 PLUG,BLEEDERTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55151-60D10-000 |
from US $2.81 |
||
|
11
|
11
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55156-66310-000 |
from US $1.98 |
||
|
12
|
12
55840-60D11-000
ピストン/ブーツセット
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55840-60D11-000 |
— | ||
| replacement | |||||
|
12
|
12
55840-60D12-000
New Genuine Part
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55840-60D12-000 |
— | ||
|
13
|
13
55830-60D10-000
シールセット,ピストン
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55830-60D10-000 |
— | ||
| replacement | |||||
|
13
|
13
55830-60D11-000
New Genuine Part
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55830-60D11-000 |
— | ||
|
14
|
14
55850-61F00-000
BOOT SET,PIN
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55850-61F00-000 |
— | ||
| replacement | |||||
|
14
|
14
55850-61F01-000 BOOT SET,PINTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55850-61F01-000 |
US $140.58 |
||
|
15
|
15
55311-69D00-000
Disc,front brake
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55311-69D00-000 |
— | ||
| replacement | |||||
|
15
|
15
55311-69D01-000
DISC,FR BRAKE
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55311-69D01-000 |
— | ||
|
16
|
16
09117-10042-000 BOLT(10X25)TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09117-10042-000 |
from US $1.01 |
||
|
17
|
17
55321-60B10-000
カバー,ブレーキディスクダスト
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55321-60B10-000 |
— | ||
| replacement | |||||
|
17
|
17
55321-60B1V-000 COVER,DISC DUSTTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
55321-60B1V-000 |
US $49.60 |
||
