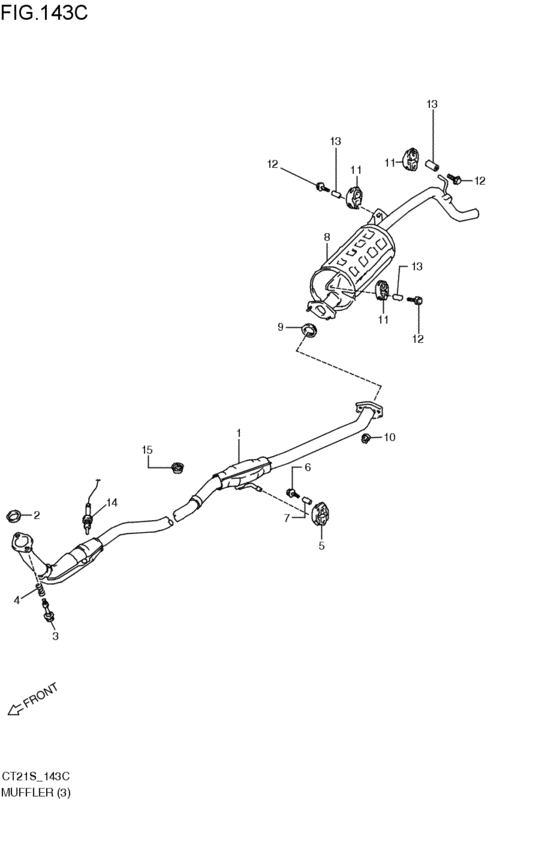

muffler (ゴウキワケ; TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RTS
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-64D03-000
パイプ,エキゾースト
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14190-64D03-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-64D04-000
パイプ,エキゾースト
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14190-64D04-000 |
— | ||
|
2
|
2
14183-78502-000
Ring
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14183-78502-000 |
— | ||
| replacement | |||||
|
2
|
2
14183-75FC0-000 RING,SEAL EXH PIPETYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14183-75FC0-000 |
from US $14.09 |
||
|
3
|
3
09119-10056-000
ボルト,10X53.5
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
09119-10056-000 |
— | ||
| replacement | |||||
|
3
|
3
14493-76G01-000 BOLT,EXH PIPETYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14493-76G01-000 |
from US $3.04 |
||
|
4
|
4
14492-82001-000 SPRING,EXH PIPETYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14492-82001-000 |
from US $1.28 |
||
|
5
|
5
14281-78010-000
Mounting, muffler
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
5
|
5
14281-60G01-000 MOUNTING,MUFTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
6
|
6
01550-08353-000
Bolt, rear
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0835B-000 BoltTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
6
|
6
01550-0835A-000 BoltTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
7
|
7
09180-08057-000
Spacer
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
7
|
7
09180-08227-000 SPACER(8.2X12.5X23.5)TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
09180-08227-000 |
from US $1.04 |
||
|
8
|
8
14300-63D10-000
マフラ
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14300-63D10-000 |
— | ||
| replacement | |||||
|
8
|
8
14300-71GP0-000 MUFFLERTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14300-71GP0-000 |
US $241.04 |
||
|
9
|
9
14182-60B00-000
GASKET,EXH PIPE
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
9
|
9
14182-60B01-000 Gasket,exh PipeTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14182-60B01-000 |
from US $3.34 |
||
|
10
|
10
08316-10103-000
Nut
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUTTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
11
|
11
14281-78010-000
Mounting, muffler
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
11
|
11
14281-60G01-000 MOUNTING,MUFTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
12
|
12
01550-08353-000
Bolt, rear
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0835B-000 BoltTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
12
|
12
01550-0835A-000 BoltTYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
09180-08057-000
Spacer
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
13
|
13
09180-08227-000 SPACER(8.2X12.5X23.5)TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
09180-08227-000 |
from US $1.04 |
||
|
14
|
14
14810-65F00-000
Fuse,thermo ctlst
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14810-65F00-000 |
— | ||
| replacement | |||||
|
14
|
14
14810-65F0V-000
FUSE,THERMO CTLST
TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
14810-65F0V-000 |
— | ||
|
15
|
15
09250-20015-000 CAP(OD:28.5)Cap, air con harness TYPE1:2WD:2V:TURBO; 1993-08-01~1995-09-01 |
09250-20015-000 |
from US $0.79 |
||
