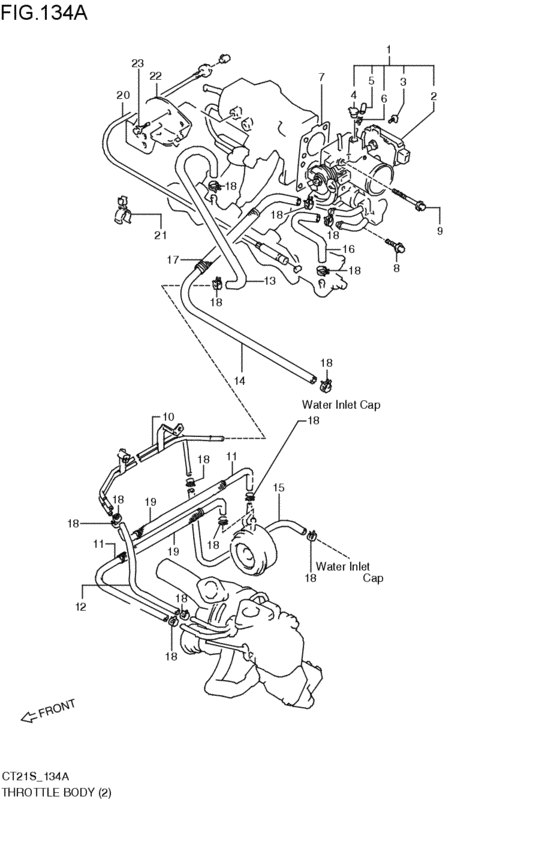

throttle body (TYPE1:2V:TURBO; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RTS
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-64D01-000
ボディアッシ,スロットル
TYPE1:2V:TURBO:5MT; 1993-08-01~1995-09-01 |
13400-64D01-000 |
— | ||
|
2
|
2
13420-64D00-000
SENSOR,THROTTLE POSITION
TYPE1:2V:TURBO:5MT; 1993-08-01~1995-09-01 |
13420-64D00-000 |
— | ||
|
3
|
3
02112-74103-000
Screw
TYPE1:2V:TURBO:5MT; 1993-08-01~1995-09-01 |
02112-74103-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7410B-000 SCREWTYPE1:2V:TURBO:5MT; 1993-08-01~1995-09-01 |
02112-7410B-000 |
from US $3.71 |
||
|
4
|
4
13419-84150-000
PLUG
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
13419-84150-000 |
— | ||
|
7
|
7
13421-64D03-000 GASKET,THROTTLE BODYTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
13421-64D03-000 |
US $2.40 |
||
|
8
|
8
01550-06203-000
Bolt
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0620B-000 BoltBolt, inspection cap TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
01550-06453-000
Bolt
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0645A-000 BoltTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0645A-000 |
from US $0.96 |
||
|
10
|
10
13980-72B51-000
パイプ,ターボ/オイルクーリング
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
13980-72B51-000 |
— | ||
|
11
|
11
13985-54A50-000
ホース,オイルクーラ,インレット
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
13985-54A50-000 |
— | ||
|
12
|
12
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>100; TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>180; TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
14
|
14
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>390; TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
15
|
15
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>150; TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
16
|
16
17959-67F00-000 HOSE,INTK MANIF TO THROT BODYTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
17959-67F00-000 |
US $8.91 |
||
|
17
|
17
13998-65F00-000 PROTECTORTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
13998-65F00-000 |
US $4.71 |
||
|
18
|
18
09401-11407-000
CLIP
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
18
|
18
09401-11415-000 CLIPTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09352-13162-600 HOSE(13.5X16.5X600)Protector, seat damper L:600>120; TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09352-13162-600 |
from US $11.40 |
||
|
20
|
20
15910-74F50-000
ケーブル,アクセル
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
15910-74F50-000 |
— | ||
|
21
|
21
09408-00079-000 CLAMPTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
09408-00079-000 |
from US $0.65 |
||
|
22
|
22
15919-64D00-000
ガイド,アクセルケーブル
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
15919-64D00-000 |
— | ||
|
23
|
23
01550-06163-000
Bolt
TYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0616B-000 BoltTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
23
|
23
01550-0616A-000 BoltTYPE1:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0616A-000 |
from US $0.76 |
||
