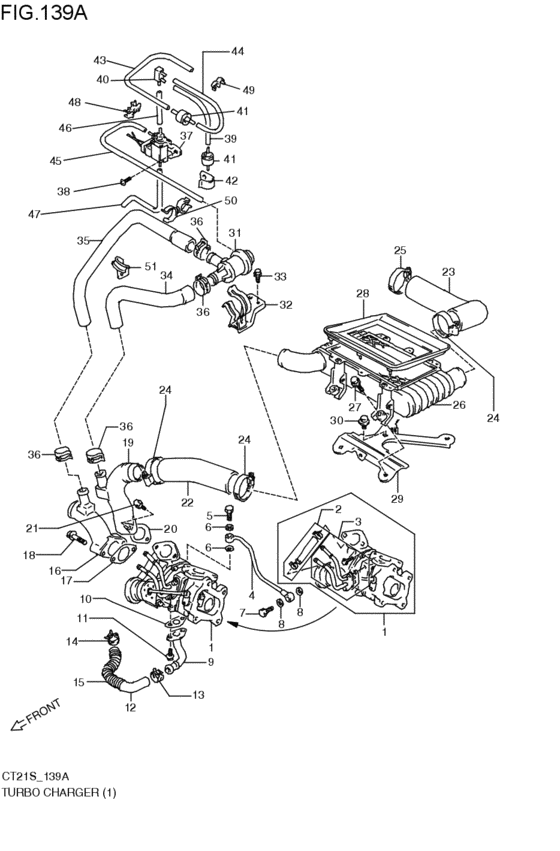

turbo charger (ゴウキワケ; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RTS
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13900-62D51-000
チャージャアッシ,ターボ
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13900-62D51-000 |
— | ||
|
2
|
2
13913-62D50-000
ホースセット,ウエストゲート
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13913-62D50-000 |
— | ||
|
3
|
3
13919-62D50-000
パイプセット,ウォータ
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13919-62D50-000 |
— | ||
|
4
|
4
13930-72B51-000
パイプ,ターボオイルインテーク
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13930-72B51-000 |
— | ||
| replacement | |||||
|
4
|
4
13930-72B5V-000
New Genuine Part
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13930-72B5V-000 |
— | ||
|
5
|
5
13948-85560-000 BOLT,UNION 8X20TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13948-85560-000 |
US $5.92 |
||
|
6
|
6
09161-10009-000 WASHER(10X15X1.5)Lock washer TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09161-10009-000 |
from US $1.06 |
||
|
7
|
7
09360-10031-000
Union bolt
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09360-10031-000 |
— | ||
| replacement | |||||
|
7
|
7
09360-10031-XC0 UNIONTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09360-10031-XC0 |
from US $10.62 |
||
|
8
|
8
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09168-08016-000 |
from US $1.22 |
||
|
9
|
9
13940-72B51-000
ジョイント,オイルドレーン
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13940-72B51-000 |
— | ||
| replacements | |||||
|
9
|
9
11641-70B02-000
BRACKET,ENG FR MTG
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
11641-70B02-000 |
— | ||
|
9
|
9
11660-70B02-000
STIFFENER,FR MTG BRKT
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
11660-70B02-000 |
— | ||
|
9
|
9
13940-72B54-000
ジョイント,オイルドレーン
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13940-72B54-000 |
— | ||
|
9
|
9
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13945-70G50-000 |
from US $4.68 |
||
|
9
|
9
13946-73B52-000
ホース,ターボオイルドレーン
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13946-73B52-000 |
— | ||
|
10
|
10
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13945-70G50-000 |
from US $4.68 |
||
|
11
|
11
01550-06123-000
Bolt
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BoltBolt, clamp TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BoltTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
13946-73B50-000
ホース,ターボオイルドレーン
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13946-73B50-000 |
— | ||
|
13
|
13
09401-18404-000 CLIPTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09401-18404-000 |
from US $1.37 |
||
|
14
|
14
09401-20402-000
Clip, air hose no.3
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
14
|
14
09401-20406-000 CLIPTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09401-20406-000 |
US $1.98 |
||
|
15
|
15
13971-81050-000
プロテクタ,オイルドレーン
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13971-81050-000 |
— | ||
| replacement | |||||
|
15
|
15
13971-8105V-000 INSULATOR,OIL DRAINTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13971-8105V-000 |
US $12.16 |
||
|
16
|
16
13950-72B70-000
パイプ,ターボインテークエア
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13950-72B70-000 |
— | ||
|
17
|
17
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13955-56F00-000 |
US $2.28 |
||
|
18
|
18
01550-06403-000
Bolt (green)
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06403-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0640B-000 BoltTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0640B-000 |
from US $0.96 |
||
|
18
|
18
01550-0640A-000 BoltBolt (l:40) TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0640A-000 |
from US $3.83 |
||
|
19
|
19
13960-72B70-000
パイプ,ターボアウトレットエア
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13960-72B70-000 |
— | ||
|
20
|
20
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13965-56F00-000 |
US $2.40 |
||
|
21
|
21
01550-06303-000
Bolt (6x30)
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0630A-000 BoltTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0630A-000 |
from US $1.12 |
||
|
22
|
22
13966-72B50-000
ホース,インタクーラ,NO.1
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13966-72B50-000 |
— | ||
|
23
|
23
13967-73B52-000
ホース,インタクーラ,NO.2
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13967-73B52-000 |
— | ||
|
24
|
24
09402-50511-000 CLAMPTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09402-50511-000 |
from US $7.52 |
||
|
25
|
25
09402-57511-000 CLAMPTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09402-57511-000 |
from US $6.24 |
||
|
26
|
26
13620-73G01-000
クーラ,インタ
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13620-73G01-000 |
— | ||
|
27
|
27
09116-06129-000 BOLT(6X30)TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09116-06129-000 |
US $1.44 |
||
|
28
|
28
13987-73B51-000
カバー,インタクーラ
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13987-73B51-000 |
— | ||
|
29
|
29
13991-72B51-000
ブラケット,インタクーラ
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13991-72B51-000 |
— | ||
|
30
|
30
01550-08163-000
Bolt, holder
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0816B-000 BoltTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
30
|
30
01550-0816A-000 BoltBolt, rear TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
31
|
31
18119-52E01-000 VALVE,AIR BYPASSTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
18119-52E01-000 |
US $144.99 |
||
|
32
|
32
13920-52E00-000
ブラケット,エアバイパスバルブ
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13920-52E00-000 |
— | ||
| replacement | |||||
|
32
|
32
13920-52E0V-000
New Genuine Part
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13920-52E0V-000 |
— | ||
|
33
|
33
01550-06103-000
Bolt, front
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0610B-000 BoltBolt TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
33
|
33
01550-0610A-000 BoltTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
34
|
34
13923-72B70-000
ホース,エアバイパスバルブ,インレット
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13923-72B70-000 |
— | ||
|
35
|
35
13924-72B71-000
ホース,エアバイパスバルブ,アウトレット
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
13924-72B71-000 |
— | ||
|
36
|
36
09401-23403-000 CLIPClip, air hose no.5 TYPE1:5MT:2V:TURBO; 1993-08-01~1995-08-01 |
09401-23403-000 |
US $28 |
||
|
37
|
37
18114-64D00-000
バルブ,エアバイパスバルブコントロール
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
18114-64D00-000 |
— | ||
|
38
|
38
09125-08010-000
スクリュ,8X14
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09125-08010-000 |
— | ||
| replacement | |||||
|
38
|
38
09125-08010-XC0 SCREW(8X14)TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09125-08010-XC0 |
US $11.80 |
||
|
39
|
39
09355-35754-600
ホース,3.5X7.5X600
L:600>65; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
39
|
39
09355-35754-601
HOSE(3.5X7.5X601)
L:600>65; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-601 |
— | ||
|
39
|
39
09355-35006-601 Hose(3.5X7.5X601)L:600>65; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
40
|
40
09367-04009-000 JOINTJoint, 3 way TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09367-04009-000 |
from US $1.67 |
||
|
41
|
41
95569-78040-000 VALVE,CHECKValve, check TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
95569-78040-000 |
from US $15.36 |
||
|
42
|
42
09404-08207-000
CLAMP(L:80)
TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09404-08207-000 |
— | ||
| replacement | |||||
|
42
|
42
09404-08212-000 ClampTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09404-08212-000 |
from US $1.22 |
||
|
43
|
43
09355-35754-600
ホース,3.5X7.5X600
L:600>100; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
43
|
43
09355-35754-601
HOSE(3.5X7.5X601)
L:600>100; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-601 |
— | ||
|
43
|
43
09355-35006-601 Hose(3.5X7.5X601)L:600>100; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
44
|
44
09355-35754-600
ホース,3.5X7.5X600
L:600>95; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
44
|
44
09355-35754-601
HOSE(3.5X7.5X601)
L:600>95; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-601 |
— | ||
|
44
|
44
09355-35006-601 Hose(3.5X7.5X601)L:600>95; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
45
|
45
09355-35754-600
ホース,3.5X7.5X600
L:600>170; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
45
|
45
09355-35754-601
HOSE(3.5X7.5X601)
L:600>170; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-601 |
— | ||
|
45
|
45
09355-35006-601 Hose(3.5X7.5X601)L:600>170; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
46
|
46
09355-35754-600
ホース,3.5X7.5X600
L:600>30; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
46
|
46
09355-35754-601
HOSE(3.5X7.5X601)
L:600>30; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-601 |
— | ||
|
46
|
46
09355-35006-601 Hose(3.5X7.5X601)L:600>30; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
47
|
47
09355-35754-600
ホース,3.5X7.5X600
L:600>140; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
47
|
47
09355-35754-601
HOSE(3.5X7.5X601)
L:600>140; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35754-601 |
— | ||
|
47
|
47
09355-35006-601 Hose(3.5X7.5X601)L:600>140; TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
48
|
48
09408-00067-000 CLIPTYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09408-00067-000 |
from US $2.03 |
||
|
49
|
49
09408-00033-000 CLAMPClamp TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09408-00033-000 |
from US $1.60 |
||
|
50
|
50
09408-00140-000 CLAMPClamp TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09408-00140-000 |
from US $4.55 |
||
|
51
|
51
09404-08420-000 CLAMP(L:120 T:1.0)TYPE1:5MT:2V:TURBO; 1993-08-01~1995-09-01 |
09404-08420-000 |
from US $1.22 |
||
