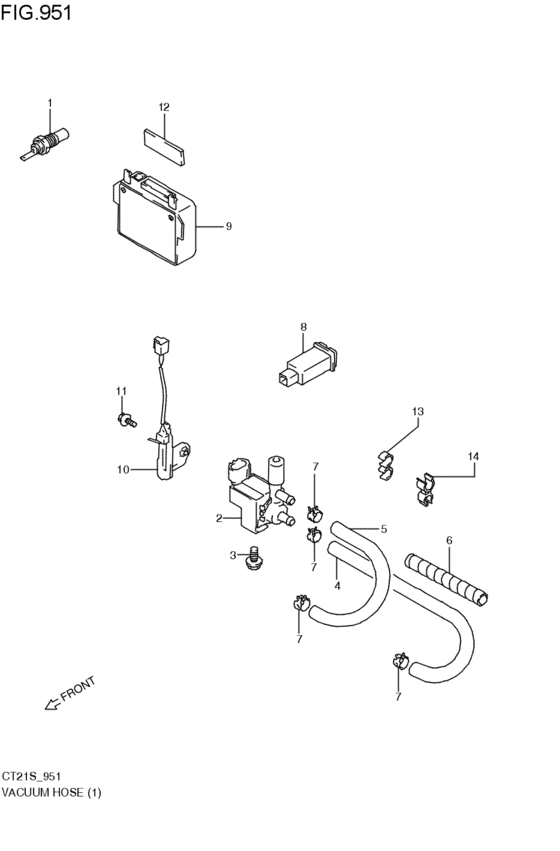

vacuum hose ((RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RTS
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature (RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
34850-50A00-000 |
from US $34.79 |
||
|
2
|
2
95161-60D00-000 VSV,IDLE UP(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
95161-60D00-000 |
US $68.40 |
||
|
3
|
3
01550-06103-000
Bolt, front
(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt (RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
3
|
3
01550-0610A-000 Bolt(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
4
|
4
95172-60D01-000
ホース,アイドルアップEPI
RTS:5MT:TYPE1; 1993-08-01~1995-09-01 |
95172-60D01-000 |
— | ||
|
5
|
5
95172-60D01-000
ホース,アイドルアップEPI
RTS:5MT:TYPE1; 1993-08-01~1995-09-01 |
95172-60D01-000 |
— | ||
|
6
|
6
95841-60D00-000 PROTECTOR,VACUUM HOSE(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
95841-60D00-000 |
from US $4.61 |
||
|
7
|
7
09401-11407-000
CLIP
(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
7
|
7
09401-11415-000 CLIP(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
09401-11415-000 |
from US $1.06 |
||
|
8
|
8
95521-70B02-000 SWITCH,A/C(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
95521-70B02-000 |
US $68.82 |
||
|
9
|
9
95510-60D13-000
コントローラ,エアコン
(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
95510-60D13-000 |
— | ||
| replacement | |||||
|
9
|
9
95510-60D03-000
CONTROLLER,A/C
(RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
95510-60D03-000 |
— | ||
|
10
|
10
95522-70B00-000 SWITCH,ACCEL OFF(RG,RX,SL,RTS):5MT:TYPE1; 1993-08-01~1995-09-01 |
95522-70B00-000 |
US $40.48 |
||
|
11
|
11
01550-06103-000
Bolt, front
(RG,RX,SL,RTS):5MT:TYPE1; 1993-08-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610B-000 BoltBolt (RG,RX,SL,RTS):5MT:TYPE1; 1993-08-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
11
|
11
01550-0610A-000 Bolt(RG,RX,SL,RTS):5MT:TYPE1; 1993-08-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
12
|
12
36930-82010-000 COVER,HARNESSCover, roof wire (RG,RX,SL,RTS):TYPE1; 1993-08-01~1995-09-01 |
36930-82010-000 |
from US $1.51 |
||
|
13
|
13
09408-00043-000 CLAMPHolder, fuse case RTS:5MT:TYPE1; 1993-08-01~1995-09-01 |
09408-00043-000 |
US $9.60 |
||
