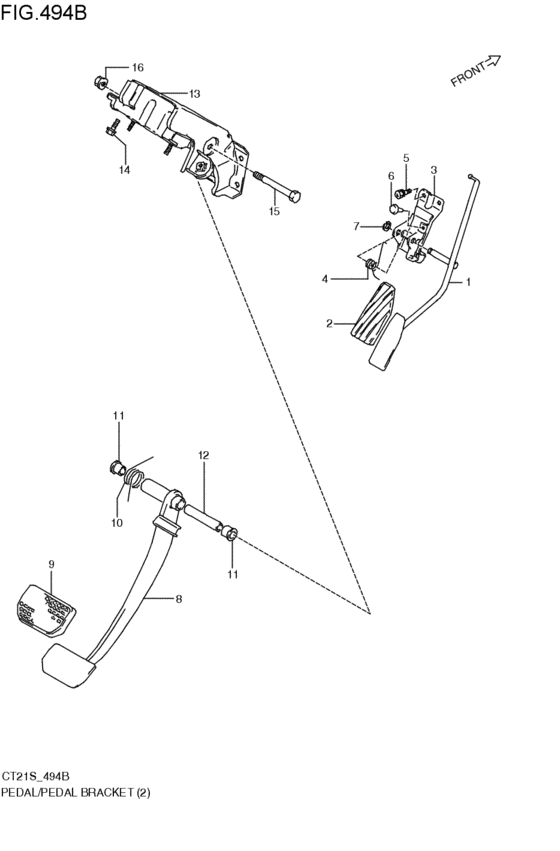

pedal / pedal bracket (3ATシヨウ(ゴウキワケ); TYPE1:3AT; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- 4DR
- grade
- RTS
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-74F10-000
ペダル,アクセレレータ
TYPE1:3AT:(2WD:RTS,4WD); 1993-08-01~1995-09-01 |
49410-74F10-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-74F30-000
ペダル,アクセレレータ
TYPE1:3AT:(2WD:RTS,4WD); 1993-08-01~1995-09-01 |
49410-74F30-000 |
— | ||
|
2
|
2
49451-60B00-000 PAD,ACCELERATOR PEDALTYPE1:3AT; 1993-08-01~1995-09-01 |
49451-60B00-000 |
from US $1.26 |
||
|
3
|
3
49510-74F00-000
BRACKET,ACCEL PEDAL
TYPE1:3AT; 1993-08-01~1995-09-01 |
49510-74F00-000 |
— | ||
|
4
|
4
09448-15016-000 SPRINGTYPE1:3AT; 1993-08-01~1995-09-01 |
09448-15016-000 |
from US $1.46 |
||
|
5
|
5
09137-06009-000
SCREW(6X12)
TYPE1:3AT; 1993-08-01~1995-09-01 |
09137-06009-000 |
— | ||
|
6
|
6
09321-06026-000 CUSHIONTYPE1:3AT; 1993-08-01~1995-09-01 |
09321-06026-000 |
from US $1.10 |
||
|
7
|
7
08332-11075-000
E ring
TYPE1:3AT; 1993-08-01~1995-09-01 |
08332-11075-000 |
— | ||
| replacement | |||||
|
7
|
7
08332-1107A-000 E RINGTYPE1:3AT; 1993-08-01~1995-09-01 |
08332-1107A-000 |
from US $0.96 |
||
|
8
|
8
49610-74F10-000
PEDAL,BRAKE
TYPE1:3AT; 1993-08-01~1995-09-01 |
49610-74F10-000 |
— | ||
|
9
|
9
49751-86300-000
Pad, brake pedal
TYPE1:3AT; 1993-08-01~1995-09-01 |
49751-86300-000 |
— | ||
| replacement | |||||
|
9
|
9
49751-58J10-000 PAD,PEDALTYPE1:3AT; 1993-08-01~1995-09-01 |
49751-58J10-000 |
from US $5.02 |
||
|
10
|
10
49691-74F00-000
SPRING,BRAKE PEDAL
TYPE1:3AT; 1993-08-01~1995-09-01 |
49691-74F00-000 |
— | ||
|
11
|
11
09306-13004-000 BUSHTYPE1:3AT; 1993-08-01~1995-09-01 |
09306-13004-000 |
from US $3.94 |
||
| replacement | |||||
|
11
|
11
09307-13005-000 BUSHBushing TYPE1:3AT; 1993-08-01~1995-09-01 |
09307-13005-000 |
from US $2.88 |
||
|
12
|
12
09180-10133-000
スペーサ,10X13X96.1
TYPE1:3AT; 1993-08-01~1995-09-01 |
09180-10133-000 |
— | ||
|
13
|
13
49710-74F10-000
ブラケット,ペダル
TYPE1:3AT; 1993-08-01~1995-09-01 |
49710-74F10-000 |
— | ||
| replacement | |||||
|
13
|
13
49710-74F30-000
ブラケット,ペダル
TYPE1:3AT; 1993-08-01~1995-09-01 |
49710-74F30-000 |
— | ||
|
14
|
14
01550-08163-000
Bolt, holder
TYPE1:3AT; 1993-08-01~1995-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 BoltTYPE1:3AT; 1993-08-01~1995-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BoltBolt, rear TYPE1:3AT; 1993-08-01~1995-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
09100-10289-000
Bolt,10x109.5
TYPE1:3AT; 1993-08-01~1995-09-01 |
09100-10289-000 |
— | ||
|
16
|
16
08316-10103-000
Nut
TYPE1:3AT; 1993-08-01~1995-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUTTYPE1:3AT; 1993-08-01~1995-09-01 |
08316-1010B-000 |
from US $0.80 |
||
