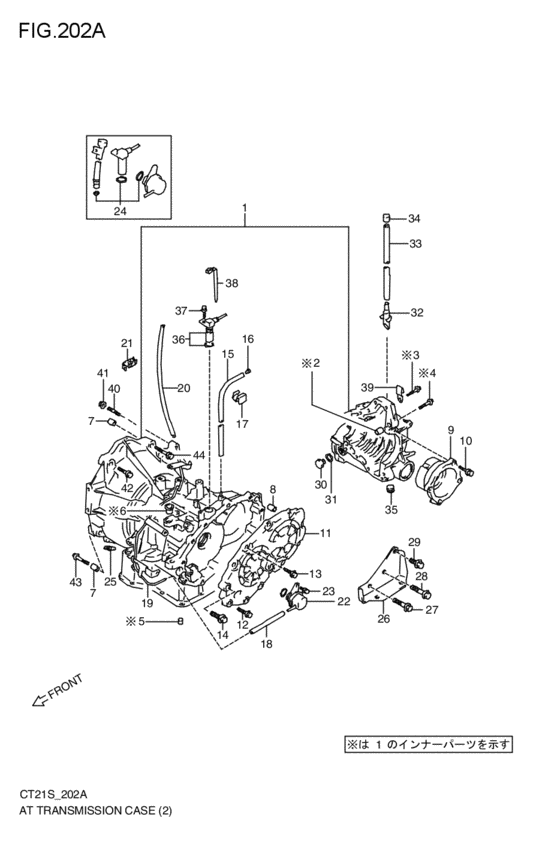

at - transmission case (4WD:3AT:4V:EPI; 1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 4DR
- grade
- RG
- type
- TYPE2
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-56E03-000
ケースアッシ,トランスミッション
4WD:3AT:4V:EPI; 1993-08-01~1995-09-01 |
24700-56E03-000 |
— | ||
| replacement | |||||
|
1
|
1
24731-56E01-000
カバー,トランスミッション,リヤ
4WD:3AT:4V:EPI; 1993-08-01~1995-09-01 |
24731-56E01-000 |
— | ||
|
1
|
1
24700-56E13-000
ケースアッシ,トランスミッション
4WD:3AT:4V:EPI; 1995-10-01~ |
24700-56E13-000 |
— | ||
|
2
|
2
04211-13149-000 PIN4WD:3AT:4V:EPI; 1993-08-01~ |
04211-13149-000 |
from US $1.44 |
||
|
3
|
3
09117-08090-000 BOLT(8X40)4WD:3AT:4V:EPI; 1993-08-01~ |
09117-08090-000 |
US $21.70 |
||
|
4
|
4
24744-56E00-000
ボルト,トランスミッションケース,NO.2
4WD:3AT:4V:EPI; 1993-08-01~ |
24744-56E00-000 |
— | ||
|
5
|
5
09202-06035-000 PIN4WD:3AT:4V:EPI; 1993-08-01~ |
09202-06035-000 |
US $37.20 |
||
|
6
|
6
24714-71B70-000 BUSH,MNL SHIFT SHAFT4WD:3AT:4V:EPI; 1993-08-01~ |
24714-71B70-000 |
US $5.96 |
||
|
7
|
7
04211-13149-000 PIN4WD:3AT:4V:EPI; 1993-08-01~ |
04211-13149-000 |
from US $1.44 |
||
|
8
|
8
04211-13149-000 PIN4WD:3AT:4V:EPI; 1993-08-01~ |
04211-13149-000 |
from US $1.44 |
||
|
9
|
9
24721-56E01-000
ハウジング,ディファレンシャルサイドベアリング
4WD:3AT:4V:EPI; 1993-08-01~ |
24721-56E01-000 |
— | ||
|
10
|
10
24722-56E00-000
ボルト,サイドベアリングハウジング
4WD:3AT:4V:EPI; 1993-08-01~ |
24722-56E00-000 |
— | ||
| replacements | |||||
|
10
|
10
24722-72J10-000
BOLT,SIDE BRG HSG
4WD:3AT:4V:EPI; 1993-08-01~ |
24722-72J10-000 |
— | ||
|
10
|
10
24722-72J11-000
Bolt,side Brg Hsg
4WD:3AT:4V:EPI; 1993-08-01~ |
24722-72J11-000 |
— | ||
|
11
|
11
24731-56E01-000
カバー,トランスミッション,リヤ
4WD:3AT:4V:EPI; 1995-05-01~1995-11-01 |
24731-56E01-000 |
— | ||
|
11
|
11
24731-56E03-000
カバー,トランスミッション,リヤ
4WD:3AT:4V:EPI; 1996-09-01~ |
24731-56E03-000 |
— | ||
| replacements | |||||
|
11
|
11
24731-56E04-000
カバー,トランスミッション,リヤ
4WD:3AT:4V:EPI; 1996-09-01~ |
24731-56E04-000 |
— | ||
|
11
|
11
25910-70GT0-000
ポールセット,パーキング
4WD:3AT:4V:EPI; 1996-09-01~ |
25910-70GT0-000 |
— | ||
|
11
|
11
24730-56840-000
リヤカバーセット
4WD:3AT:4V:EPI; 1995-12-01~1996-08-01 |
24730-56840-000 |
— | ||
|
11
|
11
24731-56E00-000
カバー,トランスミッション,リヤ
4WD:3AT:4V:EPI; 1993-08-01~1995-04-01 |
24731-56E00-000 |
— | ||
|
12
|
12
01550-08303-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0830B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
12
|
12
01550-0830A-000 BoltBolt, mount oil seal cover 4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0830A-000 |
from US $1.06 |
||
|
13
|
13
01550-08253-000
Bolt, rear
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0825B-000 |
from US $1.06 |
||
|
13
|
13
01550-0825A-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0825A-000 |
from US $0.47 |
||
|
14
|
14
01550-10303-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-10303-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-1030B-000 BoltBolt, axle housing rear 4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1030B-000 |
from US $1.87 |
||
|
14
|
14
01550-1030A-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
15
|
15
09352-50823-600
HOSE(5X8.2X600)
L:600>380; 4WD:3AT:4V:EPI; 1993-08-01~ |
09352-50823-600 |
— | ||
| replacements | |||||
|
15
|
15
44420-44AR0-000 HOSE SET,FUELL:600>380; 4WD:3AT:4V:EPI; 1993-08-01~ |
44420-44AR0-000 |
US $11.95 |
||
|
15
|
15
09352-50005-600 Hose(5X8.2X600)L:600>380; 4WD:3AT:4V:EPI; 1993-08-01~ |
09352-50005-600 |
from US $4.10 |
||
|
16
|
16
09250-06014-000
PLUG(OD:9)
4WD:3AT:4V:EPI; 1993-08-01~ |
09250-06014-000 |
— | ||
|
17
|
17
24897-61D00-000 CLAMP,BREATHER HOSE4WD:3AT:4V:EPI; 1993-08-01~ |
24897-61D00-000 |
US $1.51 |
||
|
18
|
18
09355-35754-600
ホース,3.5X7.5X600
L:600>70; 4WD:3AT:4V:EPI; 1993-08-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:600>70; 4WD:3AT:4V:EPI; 1993-08-01~ |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:600>70; 4WD:3AT:4V:EPI; 1993-08-01~ |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
24898-56E10-000
パイプ,バキューム
4WD:3AT:4V:EPI; 1993-08-01~ |
24898-56E10-000 |
— | ||
|
20
|
20
09355-35754-600
ホース,3.5X7.5X600
L:600>350; 4WD:3AT:4V:EPI; 1993-08-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
L:600>350; 4WD:3AT:4V:EPI; 1993-08-01~ |
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)L:600>350; 4WD:3AT:4V:EPI; 1993-08-01~ |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09408-00111-000 CLAMP4WD:3AT:4V:EPI; 1993-08-01~ |
09408-00111-000 |
US $2.08 |
||
|
22
|
22
24781-71B80-000 DIAPHRAGM,VACUUM4WD:3AT:4V:EPI; 1993-08-01~ |
24781-71B80-000 |
from US $38.09 |
||
|
23
|
23
01550-06123-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0612B-000 BoltBolt, clamp 4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
23
|
23
01550-0612A-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
26584-56FT0-000
Oリングセット
4WD:3AT:4V:EPI; 1993-08-01~ |
26584-56FT0-000 |
— | ||
|
25
|
25
24822-58E00-000
PLUG,BOOSTER
4WD:3AT:4V:EPI; 1993-08-01~ |
24822-58E00-000 |
— | ||
| replacement | |||||
|
25
|
25
24822-58E01-000 Plug,booster4WD:3AT:4V:EPI; 1993-08-01~ |
24822-58E01-000 |
US $5 |
||
|
26
|
26
11871-61D11-000
Bracket,t/m mtg
4WD:3AT:4V:EPI; 1995-12-01~ |
11871-61D11-000 |
— | ||
|
26
|
26
11871-56E02-000
ブラケット,トランスミッションマウンチング
4WD:3AT:4V:EPI; 1993-08-01~1995-11-01 |
11871-56E02-000 |
— | ||
| replacement | |||||
|
26
|
26
11871-56E03-000
ブラケット,トランスミッションマウンチング
4WD:3AT:4V:EPI; 1993-08-01~1995-11-01 |
11871-56E03-000 |
— | ||
|
27
|
27
01550-08353-000
Bolt, rear
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-08353-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0835B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0835B-000 |
from US $1.28 |
||
|
27
|
27
01550-0835A-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
28
|
28
01550-10353-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-10353-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1035A-000 BoltBolt, fr fork upper 4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1035A-000 |
from US $1.62 |
||
|
29
|
29
01550-10203-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-1020A-000 BoltBolt, bal sprocket 4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
30
|
30
09247-14027-000 PLUG(14X11.5)Plug, oil drain 4WD:3AT:4V:EPI; 1996-11-01~ |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
30
|
30
09247-14044-000 DRAIN PLUG (M14x1.5)4WD:3AT:4V:EPI; 1996-11-01~ |
09247-14044-000 |
from US $1.67 |
||
|
30
|
30
24823-71B70-000
PLUG,DRAIN
4WD:3AT:4V:EPI; 1993-08-01~1996-10-01 |
24823-71B70-000 |
— | ||
|
31
|
31
24824-71B70-000
ガスケット,ドレーンプラグ
4WD:3AT:4V:EPI; 1993-08-01~1996-10-01 |
24824-71B70-000 |
— | ||
| replacement | |||||
|
31
|
31
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) 4WD:3AT:4V:EPI; 1993-08-01~1996-10-01 |
09160-18018-000 |
from US $0.32 |
||
|
31
|
31
24824-71B71-000 GASKET,18X24X24WD:3AT:4V:EPI; 1996-11-01~ |
24824-71B71-000 |
from US $1.10 |
||
|
32
|
32
24871-56E02-000
パイプ,ブリーザ
4WD:3AT:4V:EPI; 1993-08-01~ |
24871-56E02-000 |
— | ||
| replacement | |||||
|
32
|
32
24871-56E0V-000
パイプ,ブリーザ
4WD:3AT:4V:EPI; 1993-08-01~ |
24871-56E0V-000 |
— | ||
|
33
|
33
09352-70113-600
HOSE(7X11X600)
L:600>400; 4WD:3AT:4V:EPI; 1993-08-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
33
|
33
09352-70119-600 Hose(7X11X600)L:600>400; 4WD:3AT:4V:EPI; 1993-08-01~ |
09352-70119-600 |
from US $4.96 |
||
|
34
|
34
46543-60A00-000
PLUG BREATHER
4WD:3AT:4V:EPI; 1993-08-01~ |
46543-60A00-000 |
— | ||
| replacement | |||||
|
34
|
34
27991-65D01-000 PLUG,BREATHER4WD:3AT:4V:EPI; 1993-08-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
35
|
35
09246-16010-000 PLUG4WD:3AT:4V:EPI; 1993-08-01~ |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
35
|
35
09246-16021-000 Plug,t/m Oil Drain4WD:3AT:4V:EPI; 1993-08-01~ |
09246-16021-000 |
from US $4.37 |
||
|
36
|
36
26140-56E00-000
センサアッシ,スピード
4WD:3AT:4V:EPI; 1993-08-01~ |
26140-56E00-000 |
— | ||
|
37
|
37
01550-06163-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
37
|
37
01550-0616B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
37
|
37
01550-0616A-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
38
|
38
09407-14407-000 CLAMP(L:145)Band 4WD:3AT:4V:EPI; 1993-08-01~ |
09407-14407-000 |
from US $2.08 |
||
|
39
|
39
26586-71B70-000
クリップ,ハーネス,NO.4
4WD:3AT:4V:EPI; 1993-08-01~ |
26586-71B70-000 |
— | ||
|
40
|
40
01421-10353-000
Stud 10x1.25x55
4WD:3AT:4V:EPI; 1993-08-01~ |
01421-10353-000 |
— | ||
| replacements | |||||
|
40
|
40
01421-1035A-000 BOLT,STUD4WD:3AT:4V:EPI; 1993-08-01~ |
01421-1035A-000 |
from US $4.13 |
||
|
40
|
40
01421-1035B-000 BOLT,STUD4WD:3AT:4V:EPI; 1993-08-01~ |
01421-1035B-000 |
US $17.30 |
||
|
41
|
41
08316-10103-000
Nut
4WD:3AT:4V:EPI; 1993-08-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
41
|
41
08316-1010B-000 NUT4WD:3AT:4V:EPI; 1993-08-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
42
|
42
01550-10453-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-10453-000 |
— | ||
| replacement | |||||
|
42
|
42
01550-1045B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1045B-000 |
from US $1.28 |
||
|
43
|
43
01550-10553-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-10553-000 |
— | ||
| replacement | |||||
|
43
|
43
01550-1055B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1055B-000 |
from US $1.60 |
||
|
44
|
44
01550-10603-000
Bolt
4WD:3AT:4V:EPI; 1993-08-01~ |
01550-10603-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-1060B-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1060B-000 |
US $1.60 |
||
|
44
|
44
01550-1060A-000 Bolt4WD:3AT:4V:EPI; 1993-08-01~ |
01550-1060A-000 |
from US $1.60 |
||
