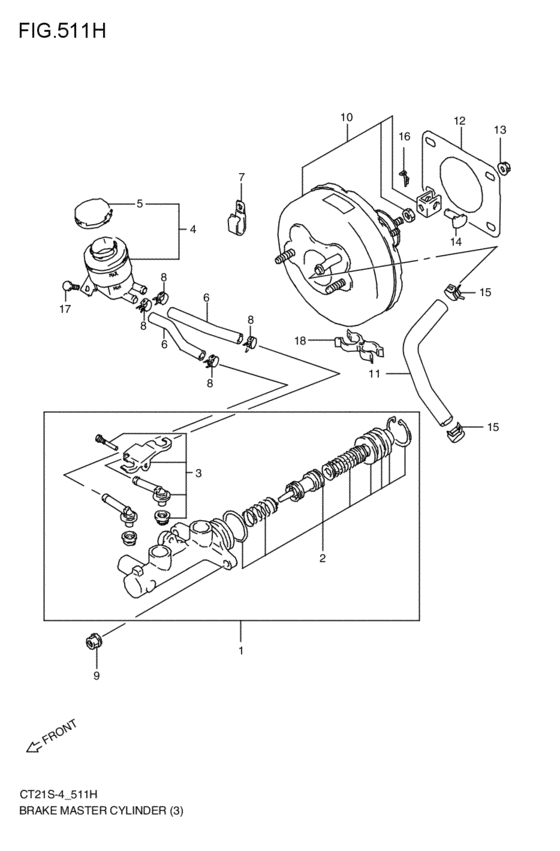

brakes master cylinder (ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1997
- Sales region
- Japan
- Engine
- F6A
- supercharge
- 4V
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 4DR
- grade
- RGS
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-74FC0-000
シリンダアッシ,ブレーキマスタ
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51100-74FC0-000 |
— | ||
|
2
|
2
51810-50E00-000
PISTON SET,BRAKE MASTER
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51810-50E00-000 |
— | ||
|
3
|
3
51190-74FC0-000
ユニオンセット,ブレーキマスタ
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51190-74FC0-000 |
— | ||
|
4
|
4
51200-74FA0-000
RESERVOIR ASSY,MASTER CYLINDER
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51200-74FA0-000 |
— | ||
|
5
|
5
51220-79210-000
CAP RESERVIOR
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51220-79210-000 |
— | ||
| replacement | |||||
|
5
|
5
51220-77M00-000 CAP,RESERVOIRABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51220-77M00-000 |
from US $20 |
||
|
6
|
6
51110-74FC0-000
ホース,ブレーキマスタ
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51110-74FC0-000 |
— | ||
|
7
|
7
09403-09315-000 CLAMPABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09403-09315-000 |
US $19.10 |
||
|
8
|
8
51130-74FC0-000
クリップ
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51130-74FC0-000 |
— | ||
|
9
|
9
09159-08075-000 NUTABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09159-08075-000 |
from US $0.91 |
||
|
10
|
10
51300-74FC0-000
ブースタアッシ,ブレーキマスタ
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51300-74FC0-000 |
— | ||
|
11
|
11
51010-74FC0-000
ホース,ブレーキバキューム
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51010-74FC0-000 |
— | ||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDERABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
51132-82003-000 |
from US $1.60 |
||
|
13
|
13
09159-08069-000
Nut
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-08135-000 NUTABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09159-08135-000 |
from US $0.81 |
||
|
14
|
14
09200-08069-000 PINABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09200-08069-000 |
from US $1.37 |
||
|
15
|
15
09401-15404-000 CLIPABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09401-15404-000 |
from US $1.33 |
||
|
16
|
16
09385-08007-000 PIN,SNAPClip ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
09385-08007-000 |
from US $1.09 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
02162-0612A-000 |
from US $0.79 |
||
|
18
|
18
18479-70G00-000
クランプ,セカンドエアホース
ABSシヨウ; F6A:4V:ABS; 1997-04-01~1998-10-01 |
18479-70G00-000 |
— | ||
