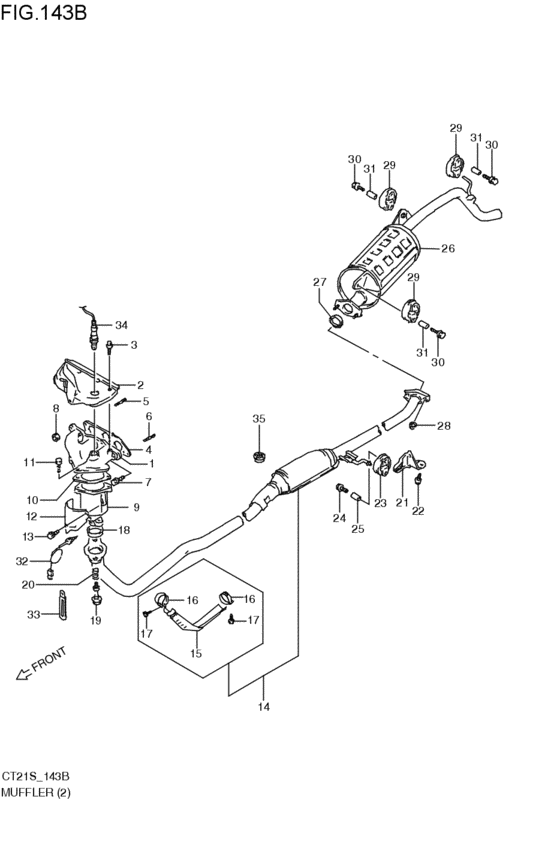

muffler (ゴウキワケ; TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 4DR
- grade
- RG
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-63D51-000 MANIFOLD,EXHTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14111-63D51-000 |
US $166.34 |
||
|
2
|
2
14130-51E00-000 COVER,EXH MANFTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14130-51E00-000 |
US $31.28 |
||
|
3
|
3
01550-06103-000
Bolt, front
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
3
|
3
01550-0610A-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
4
|
4
14141-63F00-000 GASKET,EXH MANFTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14141-63F00-000 |
US $43.20 |
||
|
5
|
5
14119-81402-000 STUD BOLTTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14119-81402-000 |
US $2.72 |
||
|
6
|
6
14119-81402-000 STUD BOLTTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14119-81402-000 |
US $2.72 |
||
|
7
|
7
01550-08253-000
Bolt, rear
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825B-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0825B-000 |
from US $1.06 |
||
|
7
|
7
01550-0825A-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0825A-000 |
from US $0.47 |
||
|
8
|
8
08316-10083-000
Nut
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUTTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
14100-62812-000
ケースセット,キャタリスト
TYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
14100-62812-000 |
— | ||
| replacements | |||||
|
9
|
9
11641-70B02-000
BRACKET,ENG FR MTG
TYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
11641-70B02-000 |
— | ||
|
9
|
9
11660-70B02-000
STIFFENER,FR MTG BRKT
TYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
11660-70B02-000 |
— | ||
|
9
|
9
14100-62831-000
CASE SET,CATALYST
TYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
14100-62831-000 |
— | ||
|
9
|
9
14810-840V0-000 FUSE,THERMO CATALYSTTYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
14810-840V0-000 |
US $122.91 |
||
|
9
|
9
14100-62830-000
ケースセット,キャタリスト
TYPE1:4WD:4V:EPI; 1994-06-01~1995-09-01 |
14100-62830-000 |
— | ||
| replacements | |||||
|
9
|
9
11641-70B02-000
BRACKET,ENG FR MTG
TYPE1:4WD:4V:EPI; 1994-06-01~1995-09-01 |
11641-70B02-000 |
— | ||
|
9
|
9
11660-70B02-000
STIFFENER,FR MTG BRKT
TYPE1:4WD:4V:EPI; 1994-06-01~1995-09-01 |
11660-70B02-000 |
— | ||
|
9
|
9
14100-62831-000
CASE SET,CATALYST
TYPE1:4WD:4V:EPI; 1994-06-01~1995-09-01 |
14100-62831-000 |
— | ||
|
10
|
10
14181-62F00-000 GASKET,CATALYST CASETYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14181-62F00-000 |
US $8.80 |
||
|
11
|
11
09103-10020-000 BOLT(10X25)TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09103-10020-000 |
US $6.88 |
||
|
12
|
12
14171-70B02-000
カバー,キャタリストケース
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14171-70B02-000 |
— | ||
| replacement | |||||
|
12
|
12
14171-70B0V-000
COVER,CATALYST CASE
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14171-70B0V-000 |
— | ||
|
13
|
13
01550-06103-000
Bolt, front
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610B-000 BoltBolt TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
13
|
13
01550-0610A-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
14
|
14
14190-70B44-000
パイプ,エキゾースト
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14190-70B44-000 |
— | ||
| replacement | |||||
|
14
|
14
14190-70BV0-000
パイプ,エキゾースト
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14190-70BV0-000 |
— | ||
|
15
|
15
14198-70B00-000
インシュレータフロントパイプヒート
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14198-70B00-000 |
— | ||
|
16
|
16
14215-54A00-000
クランプ,ヒートインシュレータ
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14215-54A00-000 |
— | ||
|
17
|
17
02162-06103-000
Bolt
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
17
|
17
02162-0610A-000 SCREWTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
18
|
18
14183-78502-000
Ring
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14183-78502-000 |
— | ||
| replacement | |||||
|
18
|
18
14183-75FC0-000 RING,SEAL EXH PIPETYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14183-75FC0-000 |
from US $14.09 |
||
|
19
|
19
09119-10056-000
ボルト,10X53.5
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09119-10056-000 |
— | ||
| replacement | |||||
|
19
|
19
14493-76G01-000 BOLT,EXH PIPETYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14493-76G01-000 |
from US $3.04 |
||
|
20
|
20
14492-82001-000 SPRING,EXH PIPETYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14492-82001-000 |
from US $1.28 |
||
|
21
|
21
14284-70B41-000
ブラケット,エキゾーストパイプ
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14284-70B41-000 |
— | ||
| replacement | |||||
|
21
|
21
14284-70B4V-000 BRACKET,EXH PIPETYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14284-70B4V-000 |
US $6.96 |
||
|
22
|
22
01550-06123-000
Bolt
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BoltBolt, clamp TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
14281-78010-000
Mounting, muffler
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
23
|
23
14281-60G01-000 MOUNTING,MUFTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
24
|
24
01550-08353-000
Bolt, rear
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0835B-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
24
|
24
01550-0835A-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
25
|
25
09180-08057-000
Spacer
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
25
|
25
09180-08227-000 SPACER(8.2X12.5X23.5)TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09180-08227-000 |
from US $1.04 |
||
|
26
|
26
14300-63D10-000
マフラ
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14300-63D10-000 |
— | ||
| replacement | |||||
|
26
|
26
14300-71GP0-000 MUFFLERTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14300-71GP0-000 |
US $241.04 |
||
|
27
|
27
14182-60B00-000
GASKET,EXH PIPE
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
27
|
27
14182-60B01-000 Gasket,exh PipeTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14182-60B01-000 |
from US $3.34 |
||
|
28
|
28
08316-10103-000
Nut
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
28
|
28
08316-1010B-000 NUTTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
29
|
29
14281-78010-000
Mounting, muffler
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
29
|
29
14281-60G01-000 MOUNTING,MUFTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
14281-60G01-000 |
from US $5.96 |
||
|
30
|
30
01550-08353-000
Bolt, rear
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0835B-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
30
|
30
01550-0835A-000 BoltTYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
31
|
31
09180-08057-000
Spacer
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
31
|
31
09180-08227-000 SPACER(8.2X12.5X23.5)TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09180-08227-000 |
from US $1.04 |
||
|
32
|
32
14810-84000-000
Thermo fuse,ctlst
TYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
14810-84000-000 |
— | ||
| replacement | |||||
|
32
|
32
14810-8400V-000
THERMO FUSE,CTLST
TYPE1:4WD:4V:EPI; 1993-08-01~1994-06-01 |
14810-8400V-000 |
— | ||
|
32
|
32
14810-84001-000
Fuse,thermo catalyst
TYPE1:4WD:4V:EPI; 1994-06-01~1995-09-01 |
14810-84001-000 |
— | ||
| replacement | |||||
|
32
|
32
14810-840V0-000 FUSE,THERMO CATALYSTTYPE1:4WD:4V:EPI; 1994-06-01~1995-09-01 |
14810-840V0-000 |
US $122.91 |
||
|
33
|
33
09404-08420-000 CLAMP(L:120 T:1.0)TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
09404-08420-000 |
from US $1.22 |
||
|
34
|
34
18213-74F00-000
SENSOR,OXYGEN
TYPE1:4WD:4V:EPI; 1993-08-01~1995-09-01 |
18213-74F00-000 |
— | ||
|
35
|
35
09250-20015-000 CAP(OD:28.5)Cap, air con harness TYPE1:4WD:4V:EPI; 1994-10-01~1995-09-01 |
09250-20015-000 |
from US $0.79 |
||
