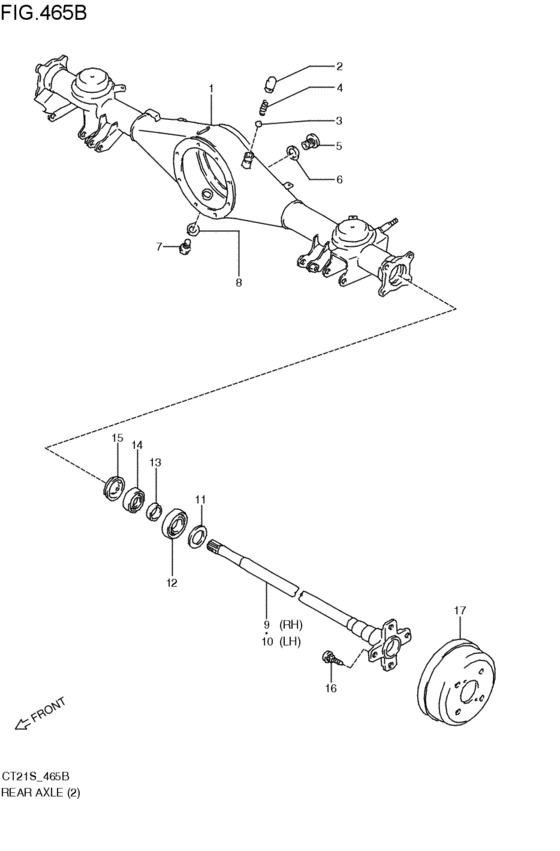

rear axle (4WDシヨウ(ゴウキワケ); TYPE1:4WD; 1993-08-01~1995-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 4DR
- grade
- RG
- type
- TYPE1
- air bag
- NAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-72B00-000
ハウジング,リヤアクスル
TYPE1:4WD; 1993-08-01~1995-09-01 |
46510-72B00-000 |
— | ||
|
2
|
2
46541-52002-000 CAP,BREATHERTYPE1:4WD; 1993-08-01~1995-09-01 |
46541-52002-000 |
from US $1.60 |
||
|
3
|
3
46542-52000-000
VALVE,BREATHER
TYPE1:4WD; 1993-08-01~1995-09-01 |
46542-52000-000 |
— | ||
| replacement | |||||
|
3
|
3
46542-52001-000 VALVE,RR AXLE HSG BREATHERTYPE1:4WD; 1993-08-01~1995-09-01 |
46542-52001-000 |
from US $1.10 |
||
|
4
|
4
09440-12004-000 SPRINGTYPE1:4WD; 1993-08-01~1995-09-01 |
09440-12004-000 |
from US $1.28 |
||
|
5
|
5
09248-20003-000 PLUGTYPE1:4WD; 1993-08-01~1995-09-01 |
09248-20003-000 |
from US $2.81 |
||
|
6
|
6
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) TYPE1:4WD; 1993-08-01~1995-09-01 |
09168-20003-000 |
from US $2.28 |
||
|
7
|
7
09247-12003-000 PLUGPlug (12x13) TYPE1:4WD; 1993-08-01~1995-09-01 |
09247-12003-000 |
from US $0.68 |
||
|
8
|
8
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket TYPE1:4WD; 1993-08-01~1995-09-01 |
09168-12002-000 |
from US $0.76 |
||
|
9
|
9
44210-52E00-000
シャフト,リヤアクスル,ライト
TYPE1:4WD; 1993-08-01~1995-09-01 |
44210-52E00-000 |
— | ||
| replacement | |||||
|
9
|
9
44210-52EV0-000
シャフト,リヤアクスル,ライト
TYPE1:4WD; 1993-08-01~1995-09-01 |
44210-52EV0-000 |
— | ||
|
10
|
10
44220-52E00-000
シャフト,リヤアクスル,レフト
TYPE1:4WD; 1993-08-01~1995-09-01 |
44220-52E00-000 |
— | ||
| replacement | |||||
|
10
|
10
44220-52EV0-000
シャフト,リヤアクスル,レフト
TYPE1:4WD; 1993-08-01~1995-09-01 |
44220-52EV0-000 |
— | ||
|
11
|
11
44251-79000-000
スペーサ,リヤホイールベアリング
TYPE1:4WD; 1993-08-01~1995-09-01 |
44251-79000-000 |
— | ||
| replacement | |||||
|
11
|
11
44251-76G00-000 SPACER,RR WHEEL BEARINGTYPE1:4WD; 1993-08-01~1995-09-01 |
44251-76G00-000 |
US $2.88 |
||
|
12
|
12
09262-30030-000
Bearing (30x62x16)
TYPE1:4WD; 1993-08-01~1995-09-01 |
09262-30030-000 |
— | ||
| replacement | |||||
|
12
|
12
09262-30103-000 BEARING(30X62X16)TYPE1:4WD; 1993-08-01~1995-09-01 |
09262-30103-000 |
from US $26.40 |
||
|
13
|
13
43485-67000-000 RING,RETAINERTYPE1:4WD; 1993-08-01~1995-09-01 |
43485-67000-000 |
from US $9.25 |
||
|
14
|
14
43491-70D00-000
Seal, rear shaft oil
TYPE1:4WD; 1993-08-01~1995-09-01 |
43491-70D00-000 |
— | ||
| replacement | |||||
|
14
|
14
43491-70D01-000 SEAL,RR SHAFT OILTYPE1:4WD; 1993-08-01~1995-09-01 |
43491-70D01-000 |
from US $5.09 |
||
|
15
|
15
43588-72000-000 PROTECTOR,OIL SEALTYPE1:4WD; 1993-08-01~1995-09-01 |
43588-72000-000 |
US $1.60 |
||
|
16
|
16
09119-10035-000 BoltTYPE1:4WD; 1993-08-01~1995-09-01 |
09119-10035-000 |
US $19.50 |
||
|
17
|
17
43511-85001-000
DRUM,BRAKE RR
TYPE1:4WD; 1993-08-01~1995-09-01 |
43511-85001-000 |
— | ||
