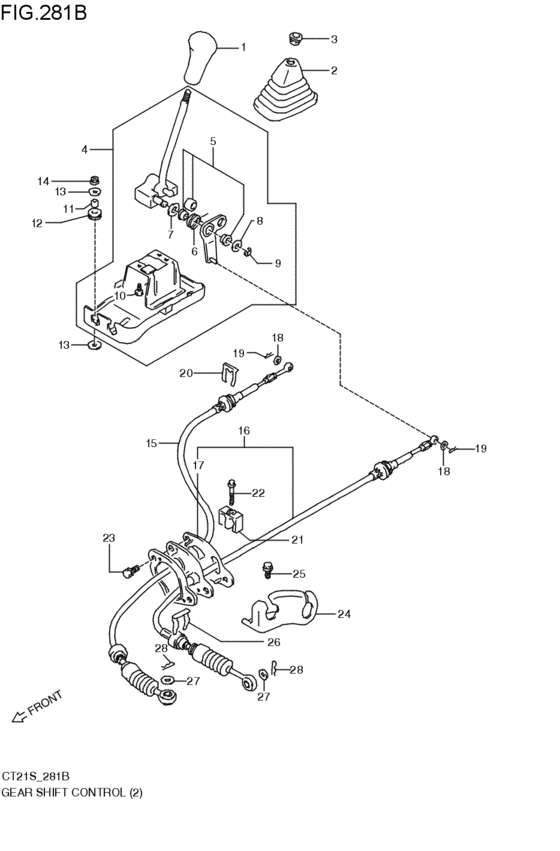

gearlever control (5MT:4WD; 1993-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- RT
- type
- TYPE2
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-50E50-5ES KNOB,GR SHF CONT LEVERブラック; 5MT:4WD; 1993-08-01~ |
28113-50E50-5ES |
US $19.32 |
||
|
2
|
2
28136-63E00-5PK BOOT,SHIFT LEVERブラック; 5MT:4WD; 1993-08-01~ |
28136-63E00-5PK |
from US $12.15 |
||
|
3
|
3
28139-74F00-000
ホルダ,レバーブーツ
5MT:4WD; 1993-08-01~ |
28139-74F00-000 |
— | ||
| replacement | |||||
|
3
|
3
28139-80G21-000 HOLDER,GR SHF CONT LEVER BOOT5MT:4WD; 1993-08-01~ |
28139-80G21-000 |
US $2.24 |
||
|
4
|
4
28101-74F21-000
レバーサブアッシ,ギヤシフトコントロール
5MT:4WD; 1993-08-01~ |
28101-74F21-000 |
— | ||
|
5
|
5
28150-75B00-000 BUSH SET,SHF LEVER5MT:4WD; 1993-08-01~ |
28150-75B00-000 |
from US $11.68 |
||
|
6
|
6
28171-54A00-000
Spring,gear select return
5MT:4WD; 1993-08-01~ |
28171-54A00-000 |
— | ||
|
7
|
7
28161-54A00-000
ワッシャ,リターンスプリングサポート
5MT:4WD; 1993-08-01~ |
28161-54A00-000 |
— | ||
|
8
|
8
09160-13011-000 WASHER(13X21X2.5)5MT:4WD; 1993-08-01~ |
09160-13011-000 |
from US $0.52 |
||
|
9
|
9
08332-11106-000
E ring
5MT:4WD; 1993-08-01~ |
08332-11106-000 |
— | ||
| replacement | |||||
|
9
|
9
08332-1110A-000 E RING5MT:4WD; 1993-08-01~ |
08332-1110A-000 |
from US $1.12 |
||
|
10
|
10
01570-06163-000
Bolt
5MT:4WD; 1993-08-01~ |
01570-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01570-0616B-000 Bolt5MT:4WD; 1993-08-01~ |
01570-0616B-000 |
from US $0.80 |
||
|
10
|
10
01570-0616A-000 Bolt5MT:4WD; 1993-08-01~ |
01570-0616A-000 |
from US $0.96 |
||
|
11
|
11
28367-54E00-000
SPACER GR
5MT:4WD; 1993-08-01~ |
28367-54E00-000 |
— | ||
| replacement | |||||
|
11
|
11
28367-64J00-000 SPACER,GEAR CONT GUIDE CUSHION5MT:4WD; 1993-08-01~ |
28367-64J00-000 |
from US $1.33 |
||
|
12
|
12
09320-12036-000 CUSHIONCushion, holder 5MT:4WD; 1993-08-01~ |
09320-12036-000 |
from US $0.70 |
||
|
13
|
13
09160-08133-000
Washer
5MT:4WD; 1993-08-01~ |
09160-08133-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 5MT:4WD; 1993-08-01~ |
09160-08151-000 |
from US $0.91 |
||
|
14
|
14
08316-10083-000
Nut
5MT:4WD; 1993-08-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT5MT:4WD; 1993-08-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
28370-54E01-000
ケーブルアッシ,ギヤシフトコントロール
5MT:4WD; 1993-08-01~ |
28370-54E01-000 |
— | ||
| replacement | |||||
|
15
|
15
28370-54E03-000
New Genuine Part
5MT:4WD; 1993-08-01~ |
28370-54E03-000 |
— | ||
|
16
|
16
28380-74B03-000
ケーブルアッシ,ギヤセレクトコントロール
5MT:4WD; 1993-08-01~ |
28380-74B03-000 |
— | ||
|
17
|
17
28375-74B00-000
カバー,セレクトケーブル
5MT:4WD; 1993-08-01~ |
28375-74B00-000 |
— | ||
|
18
|
18
09160-08097-000 WASHER(8.5X16X1.6)5MT:4WD; 1993-08-01~ |
09160-08097-000 |
US $14 |
||
|
19
|
19
09385-08004-000 PIN,SNAP5MT:4WD; 1993-08-01~ |
09385-08004-000 |
from US $1.28 |
||
|
20
|
20
09383-19001-000 E RINGClip 5MT:4WD; 1993-08-01~ |
09383-19001-000 |
from US $2.34 |
||
|
21
|
21
28385-74B00-000 CLAMP,GR SHF CONT CABLE5MT:4WD; 1993-08-01~ |
28385-74B00-000 |
US $4.60 |
||
|
22
|
22
01550-06403-000
Bolt (green)
5MT:4WD; 1993-08-01~ |
01550-06403-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0640B-000 Bolt5MT:4WD; 1993-08-01~ |
01550-0640B-000 |
from US $0.96 |
||
|
22
|
22
01550-0640A-000 BoltBolt (l:40) 5MT:4WD; 1993-08-01~ |
01550-0640A-000 |
from US $3.83 |
||
|
23
|
23
01550-06163-000
Bolt
5MT:4WD; 1993-08-01~ |
01550-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0616B-000 Bolt5MT:4WD; 1993-08-01~ |
01550-0616B-000 |
from US $0.76 |
||
|
23
|
23
01550-0616A-000 Bolt5MT:4WD; 1993-08-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
24
|
24
28391-74B00-000 BRACKET,T/M CONT CABLE5MT:4WD; 1993-08-01~ |
28391-74B00-000 |
US $14.65 |
||
|
25
|
25
01570-08203-000
Bolt
5MT:4WD; 1993-08-01~ |
01570-08203-000 |
— | ||
| replacements | |||||
|
25
|
25
01570-0820B-000 Bolt5MT:4WD; 1993-08-01~ |
01570-0820B-000 |
US $17.30 |
||
|
25
|
25
01570-0820A-000 Bolt5MT:4WD; 1993-08-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
26
|
26
09383-19001-000 E RINGClip 5MT:4WD; 1993-08-01~ |
09383-19001-000 |
from US $2.34 |
||
|
27
|
27
09160-08133-000
Washer
5MT:4WD; 1993-08-01~ |
09160-08133-000 |
— | ||
| replacement | |||||
|
27
|
27
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) 5MT:4WD; 1993-08-01~ |
09160-08151-000 |
from US $0.91 |
||
|
28
|
28
09385-08004-000 PIN,SNAP5MT:4WD; 1993-08-01~ |
09385-08004-000 |
from US $1.28 |
||
