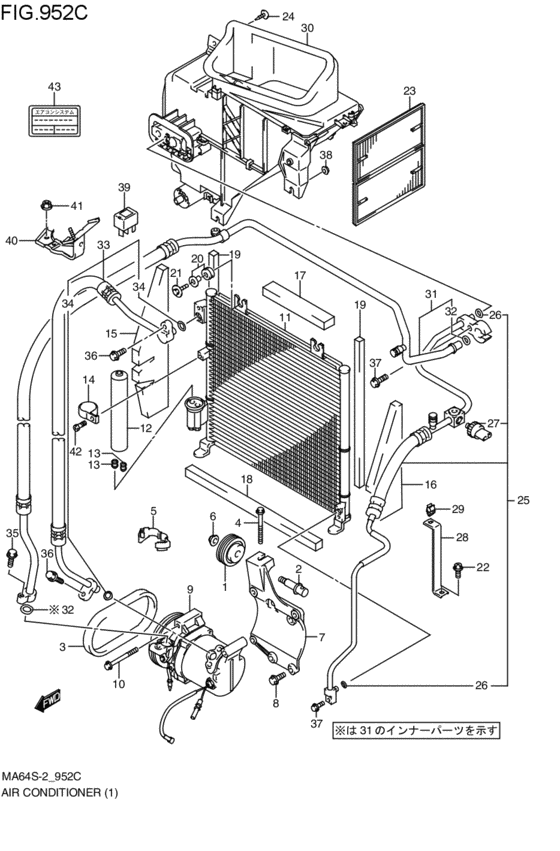

air-conditioner (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49160-70AA0-000 PULLEY ASSY,BELT TENSIONM13A; 2000-11-01~2002-07-01 |
49160-70AA0-000 |
from US $83.97 |
||
|
2
|
2
49161-60B10-000 BOLT,BELT TENSION PULLEYM13A; 2000-11-01~2002-07-01 |
49161-60B10-000 |
from US $7.84 |
||
|
3
|
3
49181-56B10-000 BELT,4PK810M13A; 2000-11-01~2002-07-01 |
49181-56B10-000 |
from US $29.21 |
||
|
4
|
4
09103-08352-000 BOLT(8X75)M13A; 2000-11-01~2002-07-01 |
09103-08352-000 |
US $19.50 |
||
|
5
|
5
09408-00184-000 CLAMPM13A; 2000-11-01~2002-07-01 |
09408-00184-000 |
from US $1.26 |
||
|
6
|
6
08316-10103-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1010B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
7
|
7
95111-80G01-000 BRACKET,CPRSRM13A; 2000-11-01~2002-07-01 |
95111-80G01-000 |
US $93.10 |
||
|
8
|
8
01550-08303-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0830B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0830B-000 |
from US $1.06 |
||
|
8
|
8
01550-0830A-000 BoltBolt, mount oil seal cover M13A; 2000-11-01~2002-07-01 |
01550-0830A-000 |
from US $1.06 |
||
|
9
|
9
95200-69GB0-000
コンプレッサアッシ
M13A; 2000-11-01~2002-07-01 |
95200-69GB0-000 |
— | ||
| replacement | |||||
|
9
|
9
95200-69GB2-000 COMPRESSOR ASSYM13A; 2000-11-01~2002-07-01 |
95200-69GB2-000 |
US $1,234.96 |
||
|
10
|
10
01550-08753-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-08753-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0875B-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0875B-000 |
from US $1.40 |
||
|
10
|
10
01550-0875A-000 BoltM13A; 2000-11-01~2002-07-01 |
01550-0875A-000 |
from US $1.60 |
||
|
11
|
11
95311-78F20-000 CONDENSERM13A; 2000-11-01~2002-07-01 |
95311-78F20-000 |
US $471.68 |
||
|
12
|
12
95330-78F10-000
レシーバ,ドライヤ
M13A; 2000-11-01~2002-07-01 |
95330-78F10-000 |
— | ||
| replacement | |||||
|
12
|
12
95330-78F11-000 RECEIVER DRYERM13A; 2000-11-01~2002-07-01 |
95330-78F11-000 |
US $95.31 |
||
|
13
|
13
95331-78F10-000 JOINTM13A; 2000-11-01~2002-07-01 |
95331-78F10-000 |
US $8.87 |
||
|
14
|
14
95351-78F10-000 CLAMPM13A; 2000-11-01~2002-07-01 |
95351-78F10-000 |
US $8.35 |
||
|
15
|
15
95811-78F01-000 PACKING,CONDENSERM13A; 2000-11-01~2002-07-01 |
95811-78F01-000 |
US $14.98 |
||
|
16
|
16
95812-78F01-000 PACKING,CONDENSERM13A; 2000-11-01~2002-07-01 |
95812-78F01-000 |
US $11.74 |
||
|
17
|
17
95813-78F01-000 PACKING,CONDENSERM13A; 2000-11-01~2002-07-01 |
95813-78F01-000 |
US $4.71 |
||
|
18
|
18
95814-78F00-000 PACKING,CONDENSERM13A; 2000-11-01~2002-07-01 |
95814-78F00-000 |
US $4.97 |
||
|
19
|
19
95815-78F00-000 PACKING,CONDENSERM13A; 2000-11-01~2002-07-01 |
95815-78F00-000 |
US $4.97 |
||
|
20
|
20
95851-77A00-000 BUSH,CONDM13A; 2000-11-01~2002-07-01 |
95851-77A00-000 |
from US $3.02 |
||
|
21
|
21
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber M13A; 2000-11-01~2002-07-01 |
09116-06150-000 |
from US $1.28 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
M13A; 2000-11-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt M13A; 2000-11-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket M13A; 2000-11-01~2002-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
23
|
23
95860-78F00-000 FILTERM13A; 2000-11-01~2002-07-01 |
95860-78F00-000 |
from US $37.60 |
||
|
24
|
24
09136-06140-000 SCREW(6X25)M13A; 2000-11-01~2002-07-01 |
09136-06140-000 |
US $18.80 |
||
|
25
|
25
95731-78F10-000 HOSE,LIQUIDM13A; 2000-11-01~2002-07-01 |
95731-78F10-000 |
US $235.52 |
||
|
26
|
26
95891-50G00-000 O-RING,D:1.8 ID:6.7M13A; 2000-11-01~2002-07-01 |
95891-50G00-000 |
from US $1.12 |
||
|
27
|
27
95526-78F00-000 SWITCH,TRIPLE PRESSUREM13A; 2000-11-01~2002-07-01 |
95526-78F00-000 |
from US $55.87 |
||
|
28
|
28
95781-78F00-000 STAY,LIQUID HOSEM13A; 2000-11-01~2002-07-01 |
95781-78F00-000 |
US $7.62 |
||
|
29
|
29
09403-08321-000 CLAMPM13A; 2000-11-01~2002-07-01 |
09403-08321-000 |
from US $0.43 |
||
|
30
|
30
95400-78F10-000 COOLING UNITM13A; 2000-11-01~2002-07-01 |
95400-78F10-000 |
US $647.68 |
||
|
31
|
31
95710-78F20-000
ホース,サクション
M13A; 2000-11-01~2002-07-01 |
95710-78F20-000 |
— | ||
| replacement | |||||
|
31
|
31
95710-78F22-000 HOSE,SUCTIONM13A; 2000-11-01~2002-07-01 |
95710-78F22-000 |
US $145.36 |
||
|
32
|
32
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) M13A; 2000-11-01~2002-07-01 |
95896-50G00-000 |
from US $1.28 |
||
|
33
|
33
95720-78F21-000
ホース,ディスチャージ
M13A; 2000-11-01~2002-07-01 |
95720-78F21-000 |
— | ||
| replacement | |||||
|
33
|
33
95720-78F22-000 HOSE,DISCHARGEM13A; 2000-11-01~2002-07-01 |
95720-78F22-000 |
US $112.61 |
||
|
34
|
34
95895-50G00-000 O-RING,D:2.4 ID:10.8M13A; 2000-11-01~2002-07-01 |
95895-50G00-000 |
from US $1.28 |
||
|
35
|
35
01550-06203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
35
|
35
01550-0620B-000 BoltBolt, inspection cap M13A; 2000-11-01~2002-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
36
|
36
01550-06203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
36
|
36
01550-0620B-000 BoltBolt, inspection cap M13A; 2000-11-01~2002-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
37
|
37
01550-06203-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
37
|
37
01550-0620B-000 BoltBolt, inspection cap M13A; 2000-11-01~2002-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
38
|
38
09159-06081-000 NUTM13A; 2000-11-01~2002-07-01 |
09159-06081-000 |
from US $1.31 |
||
|
39
|
39
38860-76F01-000 RELAY ASSYRelay, starting motor M13A; 2000-11-01~2002-07-01 |
38860-76F01-000 |
from US $28.80 |
||
|
40
|
40
95782-78F00-000 BRACKET,SUCTION HOSEM13A; 2000-11-01~2002-07-01 |
95782-78F00-000 |
US $13.21 |
||
|
41
|
41
08316-10063-000
Nut
M13A; 2000-11-01~2002-07-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
41
|
41
08316-1006B-000 NUTM13A; 2000-11-01~2002-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
42
|
42
01580-06123-000
Bolt
M13A; 2000-11-01~2002-07-01 |
01580-06123-000 |
— | ||
| replacements | |||||
|
42
|
42
01580-0612B-000 BoltM13A; 2000-11-01~2002-07-01 |
01580-0612B-000 |
US $0.96 |
||
|
42
|
42
01580-0612A-000 BoltM13A; 2000-11-01~2002-07-01 |
01580-0612A-000 |
from US $0.91 |
||
|
43
|
43
95956-84G10-000
ラベル,レフリジェラント
M13A; 2000-11-01~2002-07-01 |
95956-84G10-000 |
— | ||
