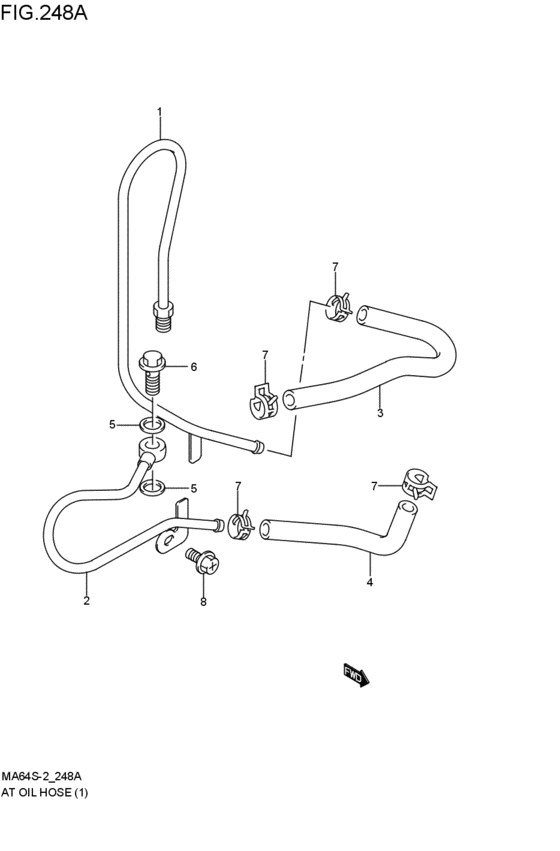

at - oil hose (M13A; 2000-11-01~2002-07-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- transmission
- AT
- grade
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22911-79C10-000
Pipe,oil cooler inlet
M13A; 2000-11-01~2002-07-01 |
22911-79C10-000 |
— | ||
|
2
|
2
22921-79C10-000
PIPE,OIL COOLER OUTLET
M13A; 2000-11-01~2002-07-01 |
22921-79C10-000 |
— | ||
|
3
|
3
22931-79C10-000
HOSE,OIL COOLER INLET
M13A; 2000-11-01~2002-07-01 |
22931-79C10-000 |
— | ||
|
4
|
4
22932-79C10-000
HOSE,OIL COOLER OUTLET
M13A; 2000-11-01~2002-07-01 |
22932-79C10-000 |
— | ||
|
5
|
5
09168-10028-000 GASKET(10X15X1)M13A; 2000-11-01~2002-07-01 |
09168-10028-000 |
US $12.90 |
||
|
6
|
6
09360-10032-000
Bolt, union (10x24)
M13A; 2000-11-01~2002-07-01 |
09360-10032-000 |
— | ||
| replacement | |||||
|
6
|
6
09360-10055-000 UNIONBolt, oil pipe union M13A; 2000-11-01~2002-07-01 |
09360-10055-000 |
from US $2.45 |
||
|
7
|
7
09401-13419-000 CLIPM13A; 2000-11-01~2002-07-01 |
09401-13419-000 |
from US $1.76 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
M13A; 2000-11-01~2002-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt M13A; 2000-11-01~2002-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket M13A; 2000-11-01~2002-07-01 |
02162-0612A-000 |
from US $0.79 |
||
